Buy Suzuki GSF Parts Online


COWLING BODY (GSF1200SK3)

GSF1200 BANDIT 2004 (K4) USA (E03)

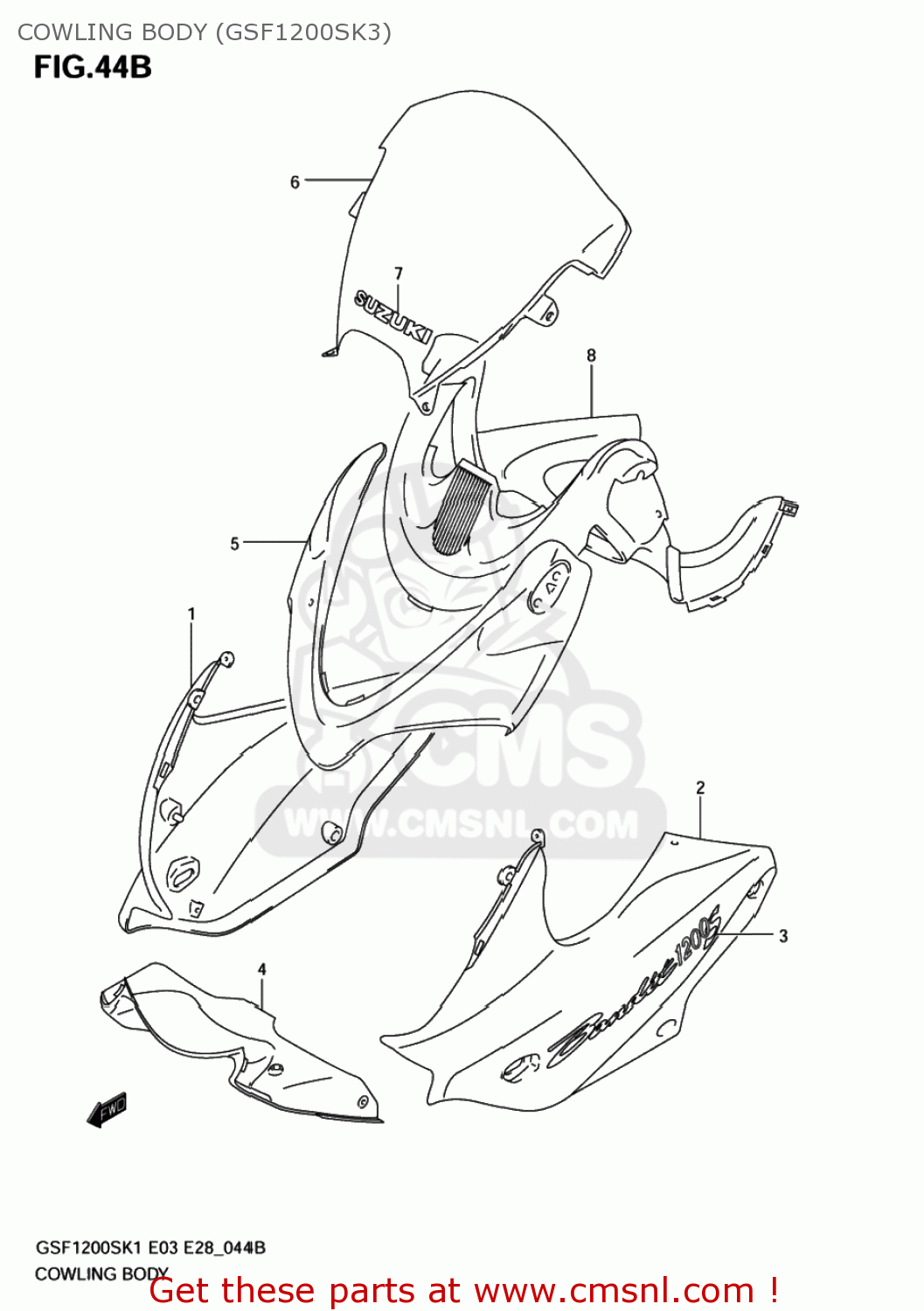

Cowling body (gsf1200sk3) diagram GSF1200 BANDIT 2004 (K4) USA (E03)

COWLING BODY (GSF1200SK3) GSF1200 BANDIT 2004 (K4) USA (E03)
COWLING BODY (GSF1200SK3) GSF1200 BANDIT 2004 (K4) USA (E03)
COWLING BODY (GSF1200SK3) GSF1200 BANDIT 2004 (K4) USA (E03)
prices are in EUR
ref
part #
description
quantity
1-1
9440132F00YAR
ref: 1-1
COWLING ASSY,SIDE,R
€ 205.50
1-2
9440132F00YV4
ref: 1-2
COWLING ASSY,SIDE,R
€ 232.00
1-3
9440132F10YMX
ref: 1-3
COWLING ASSY,SIDE,R
€ 281.50
2-1
9440232F00YAR
ref: 2-1
COWLING ASSY,SIDE,L(BLUE)
€ 292.50
2-2
9440232F00YV4
ref: 2-2
COWLING ASSY,SIDE,L
€ 242.00
2-3
9440232F10YMX
ref: 2-3
COWLING ASSY,SIDE,L
€ 241.50
3-1
6868132F00LU9
ref: 3-1
EMBLEM,COWLING SIDE
6868132F00LU9
€ 36.50
3-2
6868132F00LU8
ref: 3-2
EMBLEM,COWLING SIDE
€ 31.50
3-3
6868132F00LU7
ref: 3-3
EMBLEM,COWLING SIDE
6868132F00LU7
€ 36.50
4-1
9443031F00YD8
ref: 4-1
COWLING,CTR(SILVER)
€ 97.00
4-2
9443031F00YAR
ref: 4-2
COWLING,CTR(BLUE)
€ 78.50
4-3
9443031F00YV4
ref: 4-3
COWLING,CTR(GREEN)
€ 24.00
5
9444031F00Y7L
ref: 5
COWLING,FR
9444031F00Y7L
€ 112.00
6
9460031F0113L
ref: 6
WINDSCREEN ASSY(SILVER)
9460031F0113L
€ 122.50
7
6828002F0013L
ref: 7
EMBLEM,SUZUKI
6828002F0013L
€ 20.00
8
9464031F02
ref: 8
PANEL,METER
9464031F02
€ 157.00
