FRAME (MODEL K5)

GSF1200 BANDIT 2004 (K4) USA (E03)

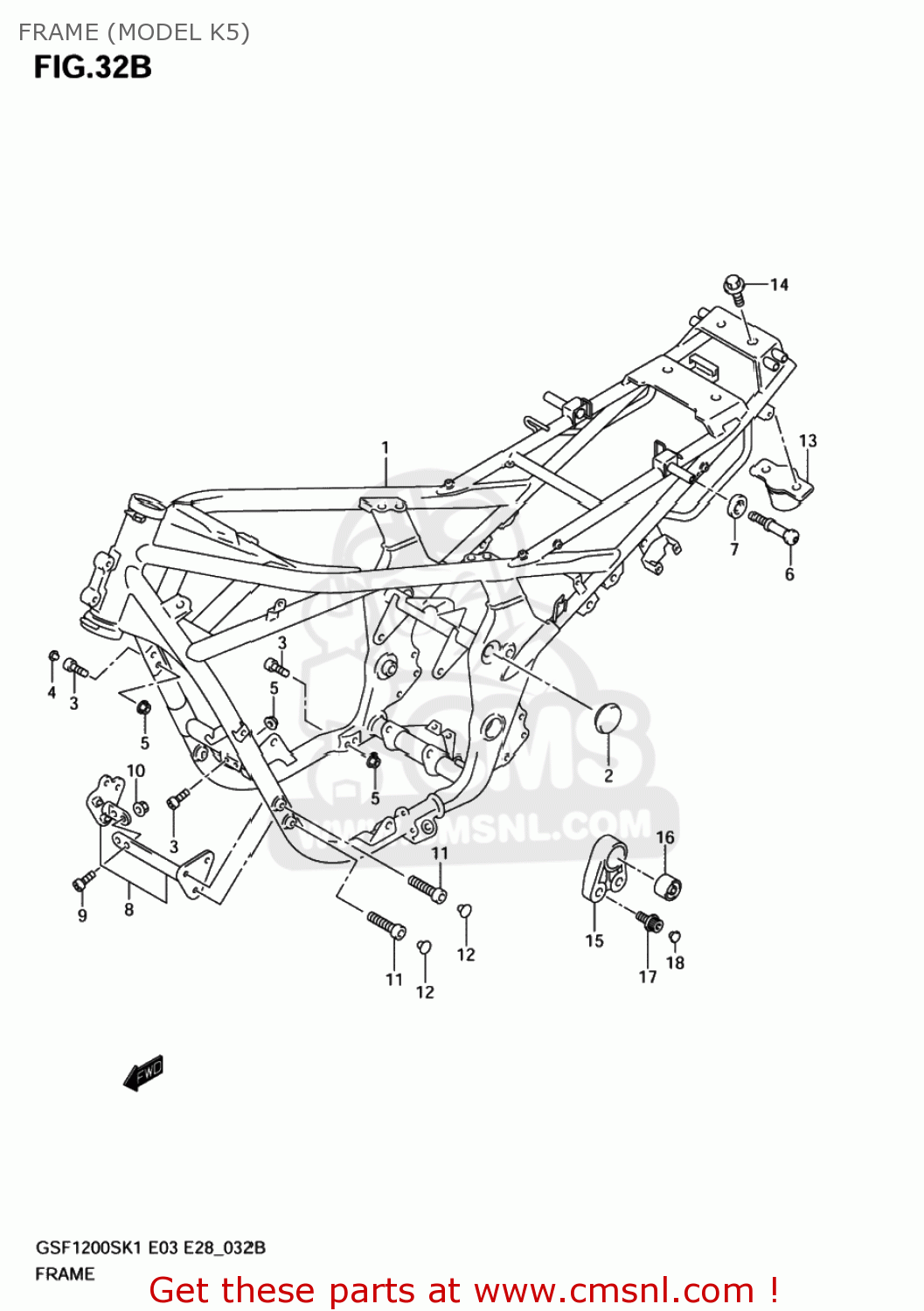

Frame (model k5) diagram GSF1200 BANDIT 2004 (K4) USA (E03)

FRAME (MODEL K5) GSF1200 BANDIT 2004 (K4) USA (E03)
FRAME (MODEL K5) GSF1200 BANDIT 2004 (K4) USA (E03)
FRAME (MODEL K5) GSF1200 BANDIT 2004 (K4) USA (E03)
prices are in EUR
ref
part #
description
quantity
1-1
4110032F01YD8
ref: 1-1
FRAME(SILVER)
€ 2,451.50
1-2
4110032F01YAY
ref: 1-2
FRAME(BLACK)
€ 2,116.00
1-3
4110032F01019
ref: 1-3
FRAME(BLACK)
4110032F01019
€ 1,289.50
2
4358503F00
ref: 2
CAP,FRAME BODY
4358503F00
€ 14.00
3
0910610068
ref: 3
BOLT(10X37)
0910610068
€ 2.50
4
0925008012
ref: 4
CAP(OD:12)
0925008012
€ 2.00
5
0831931103
ref: 5
08319-3110A
NUT
0831931103
€ 3.00
6
4631531F00
ref: 6
HOOK,SEAT RAIL
4631531F00
€ 11.00
7
4631731F00
ref: 7
WASHER,HOOK
4631731F00
€ 5.50
8-1
4190047F00YD8
ref: 8-1
PLATE ASSY,ENGINE MOUNT NO.1
€ 84.00
8-2
4190047F00YAY
ref: 8-2
PLAAT
€ 84.00
8-3
4190047F00019
ref: 8-3
PLATE ASSY,ENGINE MOUNT
4190047F00019
€ 84.00
9
0712010303
ref: 9
07120-1030B
BOLT
€ 4.00
10
0831931103
ref: 10
08319-3110A
NUT
0831931103
€ 3.00
11
0910608173
ref: 11
BOLT(8X50)
€ 4.00
12
0925008016
ref: 12
CAP(OD:12)
0925008016
€ 2.50
13
4255032F00
ref: 13
DAMPER,FRAME RR
€ 48.50
14
0155006123
ref: 14
01550-0612A
BOLT
0155006123
€ 2.50
15
4193127E60
ref: 15
BRACKET,ENGINE MOUNTING NO.2
€ 107.00
16
4193227E50
ref: 16
BUSH,ENG MOUNTING NO.2
4193227E50
€ 19.00
17
0910608065
ref: 17
BOLT(8X28)
0910608065
€ 4.00
18
0925006008
ref: 18
CAP(OD:10)
0925006008
€ 3.00
