SECOND AIR

GSF1200 BANDIT 2004 (K4) USA (E03)

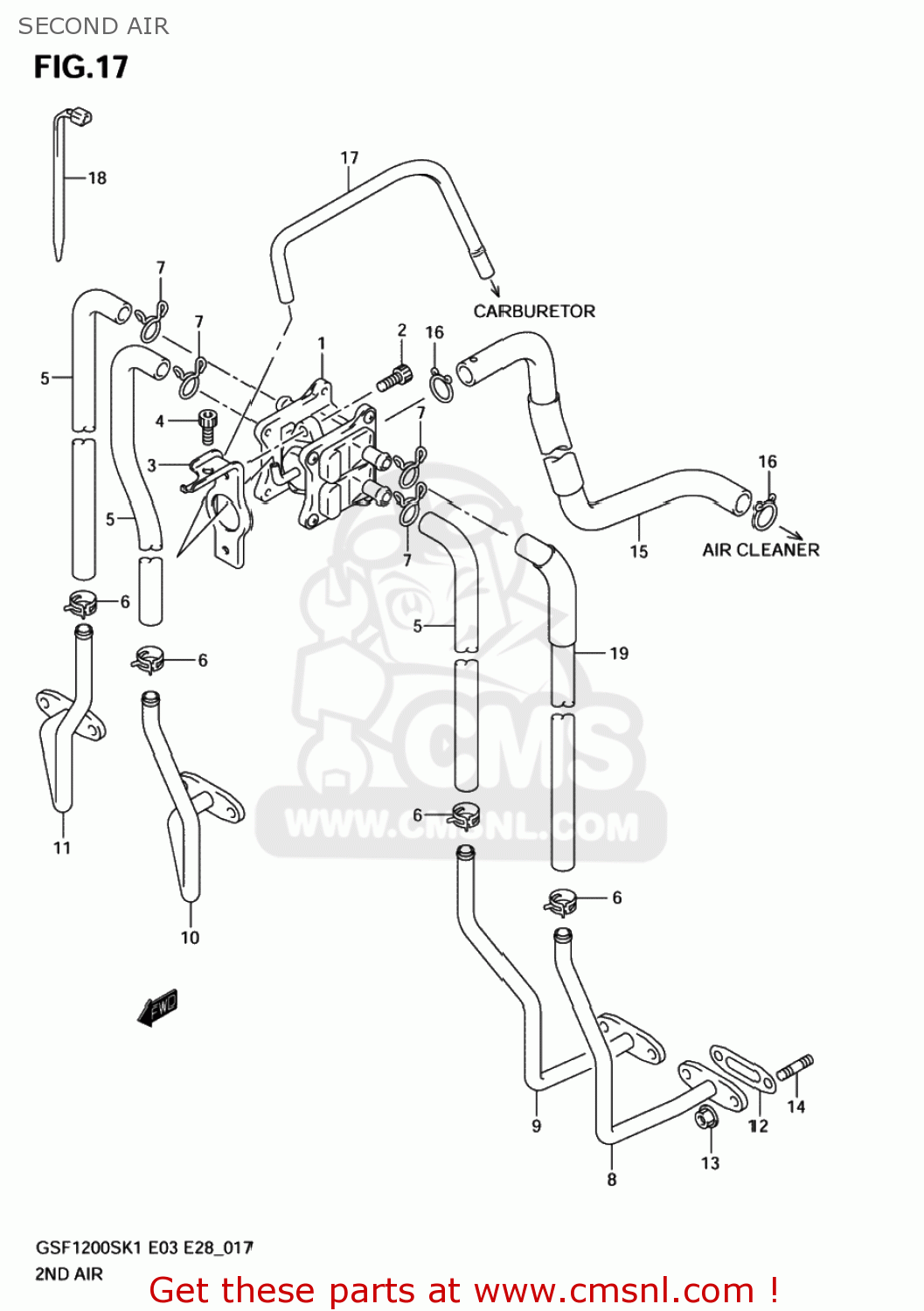

Second air diagram GSF1200 BANDIT 2004 (K4) USA (E03)

SECOND AIR GSF1200 BANDIT 2004 (K4) USA (E03)
SECOND AIR GSF1200 BANDIT 2004 (K4) USA (E03)
SECOND AIR GSF1200 BANDIT 2004 (K4) USA (E03)
prices are in EUR
ref
part #
description
quantity
1
1845033E12
ref: 1
VALVE ASSY,2ND AIR
€ 180.00
2
0713006163
ref: 2
07130-0616B
BOLT,OIL FILLE
0713006163
€ 3.00
3
1861031F00
ref: 3
BRACKET,2ND AIR
€ 12.50
4
0712006103
ref: 4
07120-0610B
BOLT
€ 2.00
5
1846131F00
ref: 5
HOSE,2ND AIR VALVE NO.1
1846131F00
€ 22.00
6
0940113417
ref: 6
CLIP
0940113417
€ 2.50
7
0940113409
ref: 7
CLIP
0940113409
€ 2.50
8
1841031F00
ref: 8
PIPE,2ND AIR NO.1
1841031F00
€ 37.50
9
1842031F00
ref: 9
PIPE,2ND AIR NO.2
1842031F00
€ 32.00
10
1843031F00
ref: 10
PIPE,2ND AIR NO.3
1843031F00
€ 39.50
11
1844031F00
ref: 11
PIPE,2ND AIR NO.4
1844031F00
€ 37.50
12
1844117C11
ref: 12
GASKET,2ND AIR PIPE (NAS)
1844117C11
€ 7.00
13
0831610063
ref: 13
08316-1006B
NUT
0831610063
€ 2.50
14
0142106163
ref: 14
01421-0616A
STUD BOLT
0142106163
€ 2.00
15
1871131F00
ref: 15
HOSE,2ND AIR CLEANER
1871131F00
€ 14.00
16
0940115101
ref: 16
CLIP
0940115101
€ 2.00
17
0935940701600
ref: 17
HOSE(4X7X600)
0935940701600
€ 9.00
18
0940718402
ref: 18
CLAMP(L:165)
0940718402
€ 2.50
19
1846032F00
ref: 19
HOSE,2ND AIR VALVE NO.1
1846032F00
€ 21.00
