MUFFLER

GSF1200S 1999 (X) (E02 E04 E17 E18 E22 E24 E25 E34)

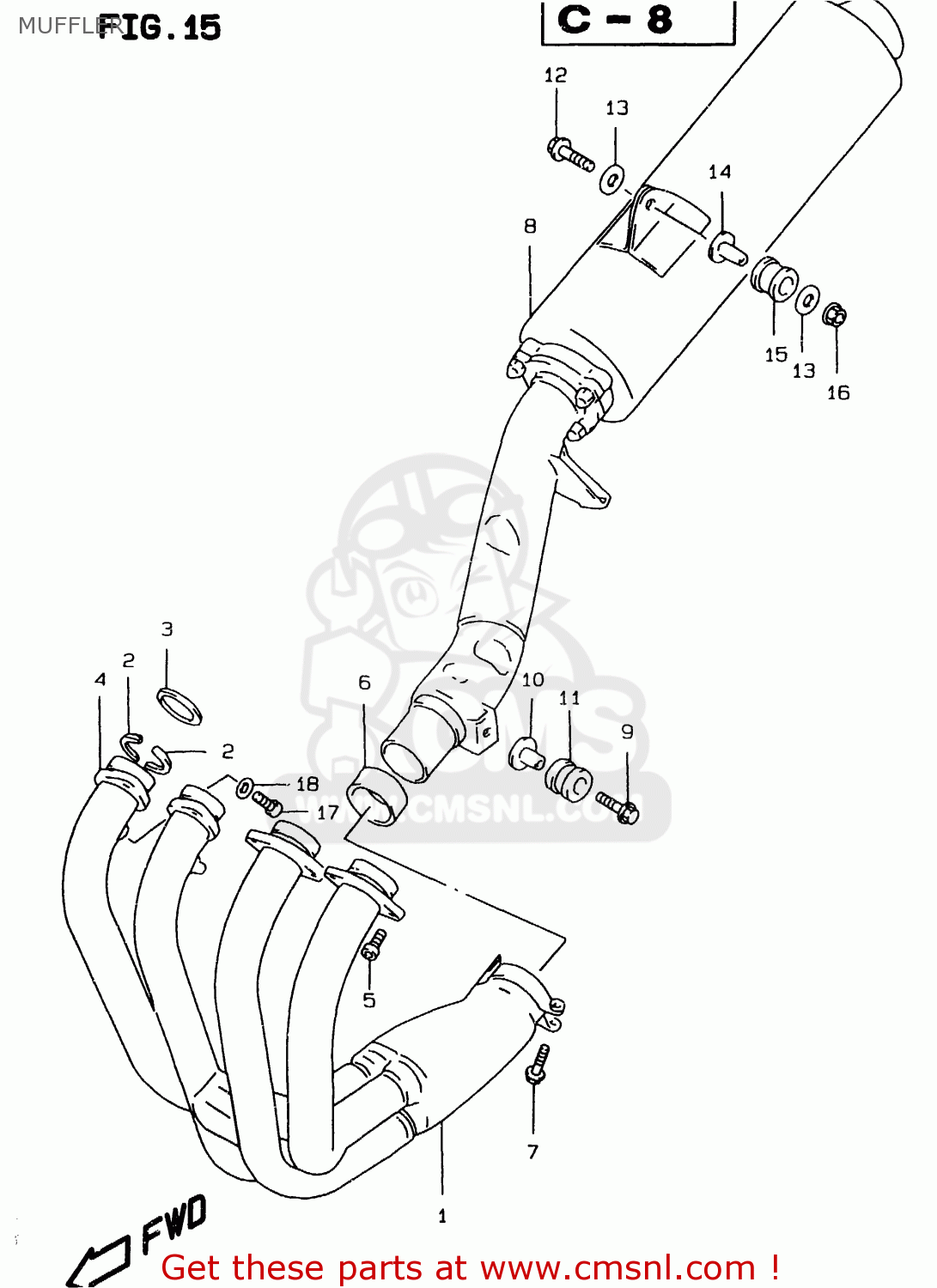

Muffler diagram GSF1200S 1999 (X) (E02 E04 E17 E18 E22 E24 E25 E34)

MUFFLER GSF1200S 1999 (X) (E02 E04 E17 E18 E22 E24 E25 E34)

MUFFLER GSF1200S 1999 (X) (E02 E04 E17 E18 E22 E24 E25 E34)

prices are in EUR

ref

part #

description

quantity

1

1410027E00
ref: 1

EXHAUST

€ 985.00

2

1415527A00
ref: 2
RH, LH

PLATE,EXHAUST PIPE

€ 3.50

3

1418118C00
ref: 3

GASKET,EXHAUST (NAS)

€ 6.50

4

1418226D00
ref: 4
RH, LH

CLAMP,EXHAUST PIPE

€ 21.00

5

0713008257
ref: 5

BOLT

€ 3.50

6

1477127E00
ref: 6

CONNECTOR,MUFFLER

€ 29.00

7

0155008403
ref: 7

BOLT

€ 3.50

8

1431027E00H01
ref: 8

BODY,MUFFLER

€ 1,306.50

9

0911808068
ref: 9

BOLT 8X40

€ 7.50

10

0918008152
ref: 10

SPACER(8.6X12X24.2)

€ 6.00

11

0932012048
ref: 11

CUSHION

€ 5.00

12

0155008457
ref: 12

BOLT

€ 4.00

13

0916008106
ref: 13
MODEL T/V

WASHER (8.1X33X1.6)

€ 3.00

13

0916008140
ref: 13
MODEL W/X

WASHER (8.5X33X1.6)

€ 3.00

14

0918008156
ref: 14

SPACER(8.6X12X27.1)

€ 6.50

15

0932012049
ref: 15

CUSHION

€ 9.00

16

0836125088
ref: 16

NUT

€ 2.50

17

0910606076
ref: 17

BOLT(6X10)

€ 2.50

18

0916006055
ref: 18

WASHER(7X12X1)

€ 2.00
