OIL COOLER

GSF1200S 1999 (X) (E02 E04 E17 E18 E22 E24 E25 E34)

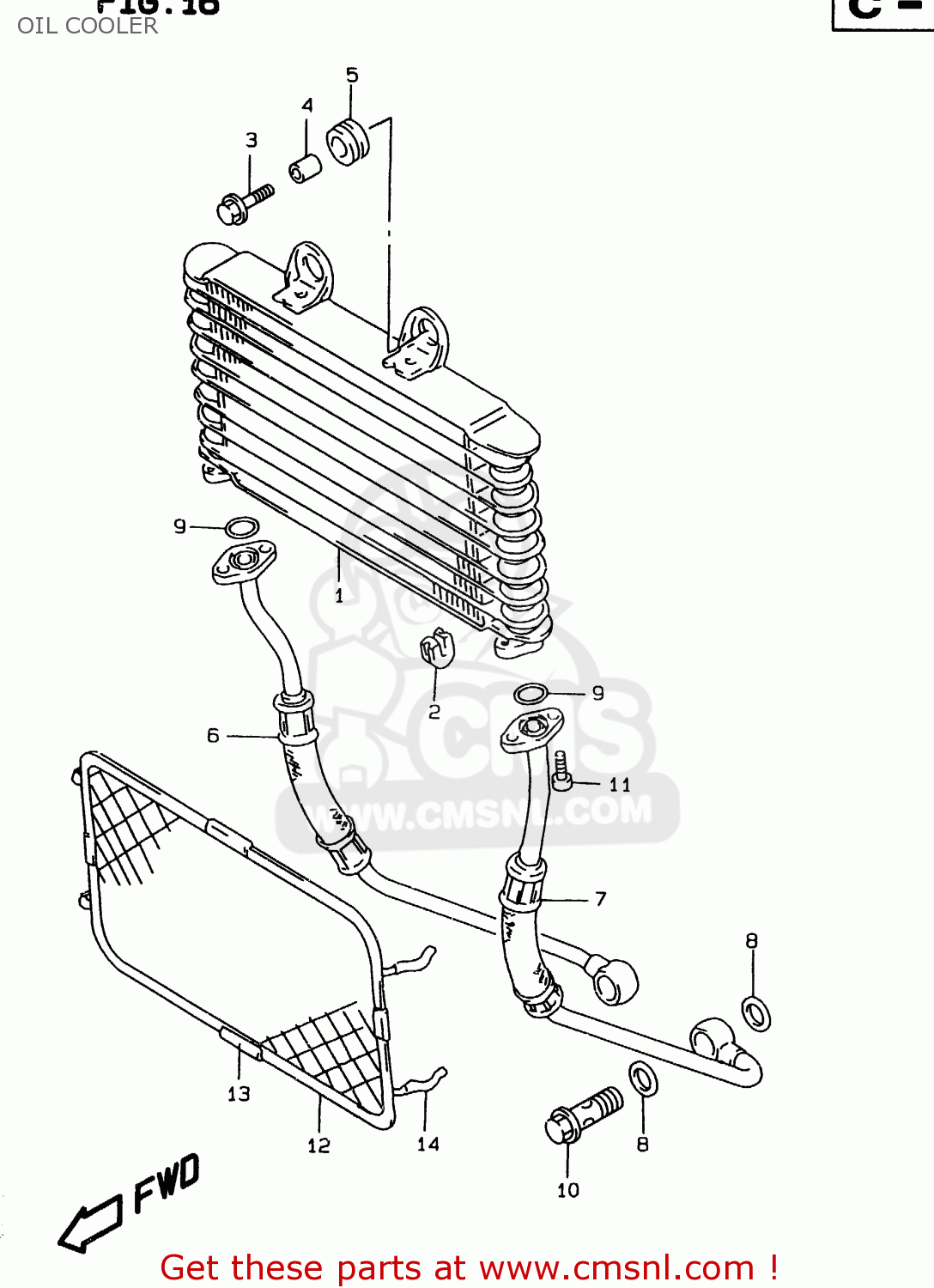

Oil cooler diagram GSF1200S 1999 (X) (E02 E04 E17 E18 E22 E24 E25 E34)

OIL COOLER GSF1200S 1999 (X) (E02 E04 E17 E18 E22 E24 E25 E34)

OIL COOLER GSF1200S 1999 (X) (E02 E04 E17 E18 E22 E24 E25 E34)

prices are in EUR

ref

part #

description

quantity

1

1660027E10
ref: 1

COOLER ASSY,OIL

€ 727.50

2

1662827A00
ref: 2

CUSHION,OIL COOLER NO.2

€ 3.00

3

0911606167
ref: 3
MODEL T

BOLT(6X20)

€ 2.00

3

0911606143
ref: 3
MODEL V/W/X

BOLT 6X20

€ 2.00

4

0918006030
ref: 4
MODEL T

SPACER (6.8X10X10)

€ 2.00

4

0918006310
ref: 4
MODEL V/W/X

SPACER(6.5X10X10)

€ 2.00

5

0932010015
ref: 5

CUSHION

€ 2.50

6

1646027E10
ref: 6

HOSE,OIL COOLER,R

€ 290.00

7

1647027E10
ref: 7

HOSE COMP,OIL COOLER,LEFT

€ 380.50

8

0916816002
ref: 8

GASKET(16X22X2) (NAS)

€ 2.00

9

0928012008
ref: 9

O RING(D:2.4,ID:12.3)

€ 3.00

10

0936016002
ref: 10

BOLT UNION

€ 12.00

11

0713006303
ref: 11

BOLT

€ 3.00

12

1665027E10
ref: 12

GUARD,OIL COOLER

€ 54.50

13

1665427E00
ref: 13

PROTECTOR,CTR

€ 3.00

14

0935230503600
ref: 14
L:600->40

HOSE(3X5X600)

€ 8.00
