STARTING MOTOR

GSF1200S 1999 (X) (E02 E04 E17 E18 E22 E24 E25 E34)

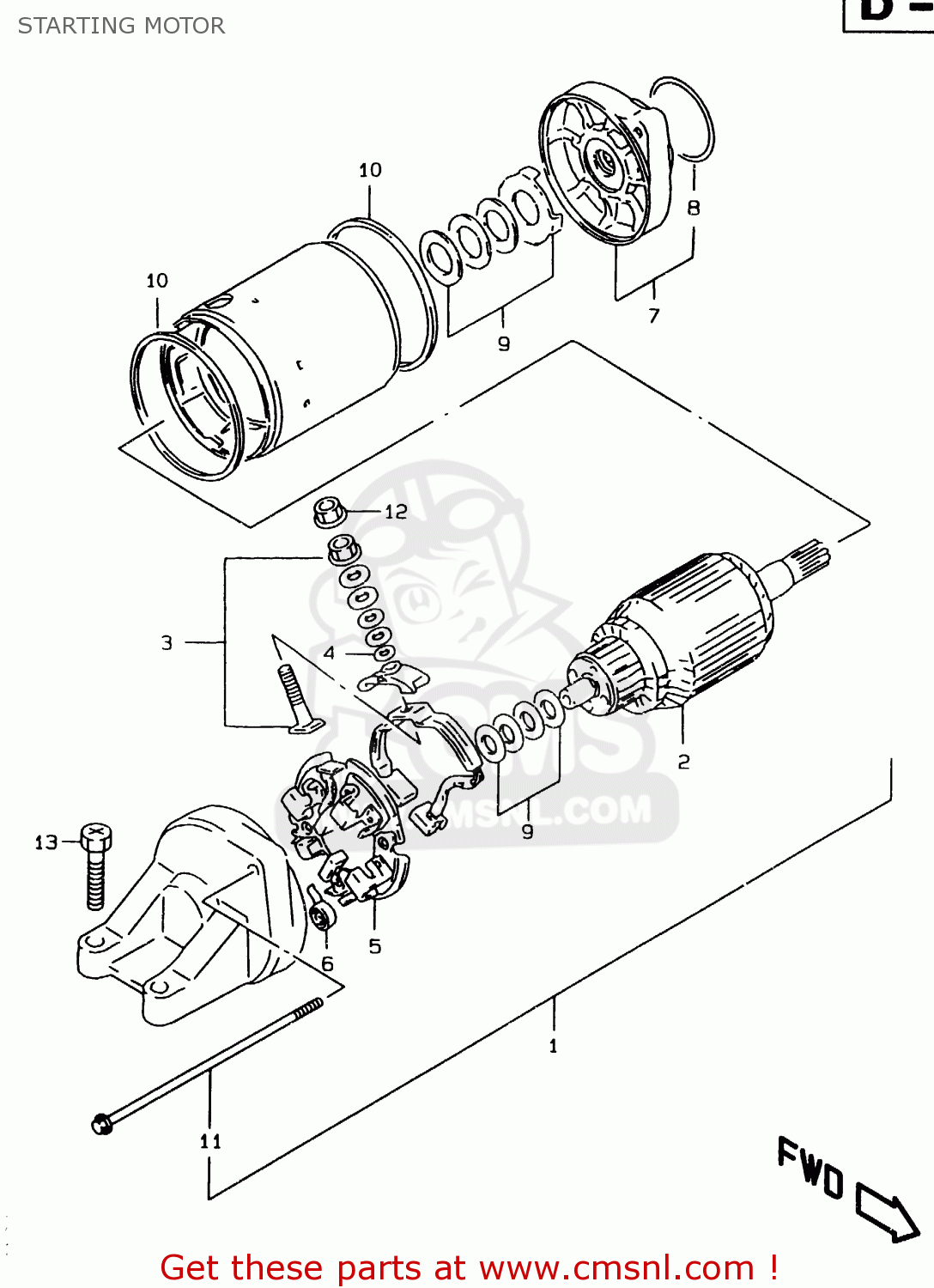

Starting motor diagram GSF1200S 1999 (X) (E02 E04 E17 E18 E22 E24 E25 E34)

prices are in EUR

ref

part #

description

quantity

3110026D00
ref: 1
MODEL T/V/W

MOTOR ASSEMBLY,STARTING (SI

€ 943.50

3110026D10
ref: 1
MODEL X

MOTOR ASSY,STARTING

€ 943.50

3131040C02
ref: 2

ARMATURE

€ 261.50

3113038B00
ref: 3

TERMINAL SET,BRUSH

€ 45.00

3114349040
ref: 4

O RING

€ 3.00

3113238B00
ref: 5

HOLDER SET,BRUSH

€ 45.00

3113538B00
ref: 6

SPRING,BRUSH

€ 3.50

3115026D00
ref: 7

BRACKET ASSY,FR

€ 129.00

3115648B00
ref: 8

O RING

€ 8.50

3117019B10
ref: 9

SHIM SET,STARTING MOTOR

€ 8.00

3126431300
ref: 10
MODEL T/V

O RING

€ 7.50

3126432E00
ref: 10
MODEL W/X

SQUARE RING

€ 7.50

3128026D00
ref: 11

BOLT

€ 12.50

0836135068
ref: 12

NUT

€ 2.00

0912806024
ref: 13

SCREW (6X25)

€ 2.50
