AIR CLEANER
GSF1200S BANDIT 1998 (W) USA (E03)

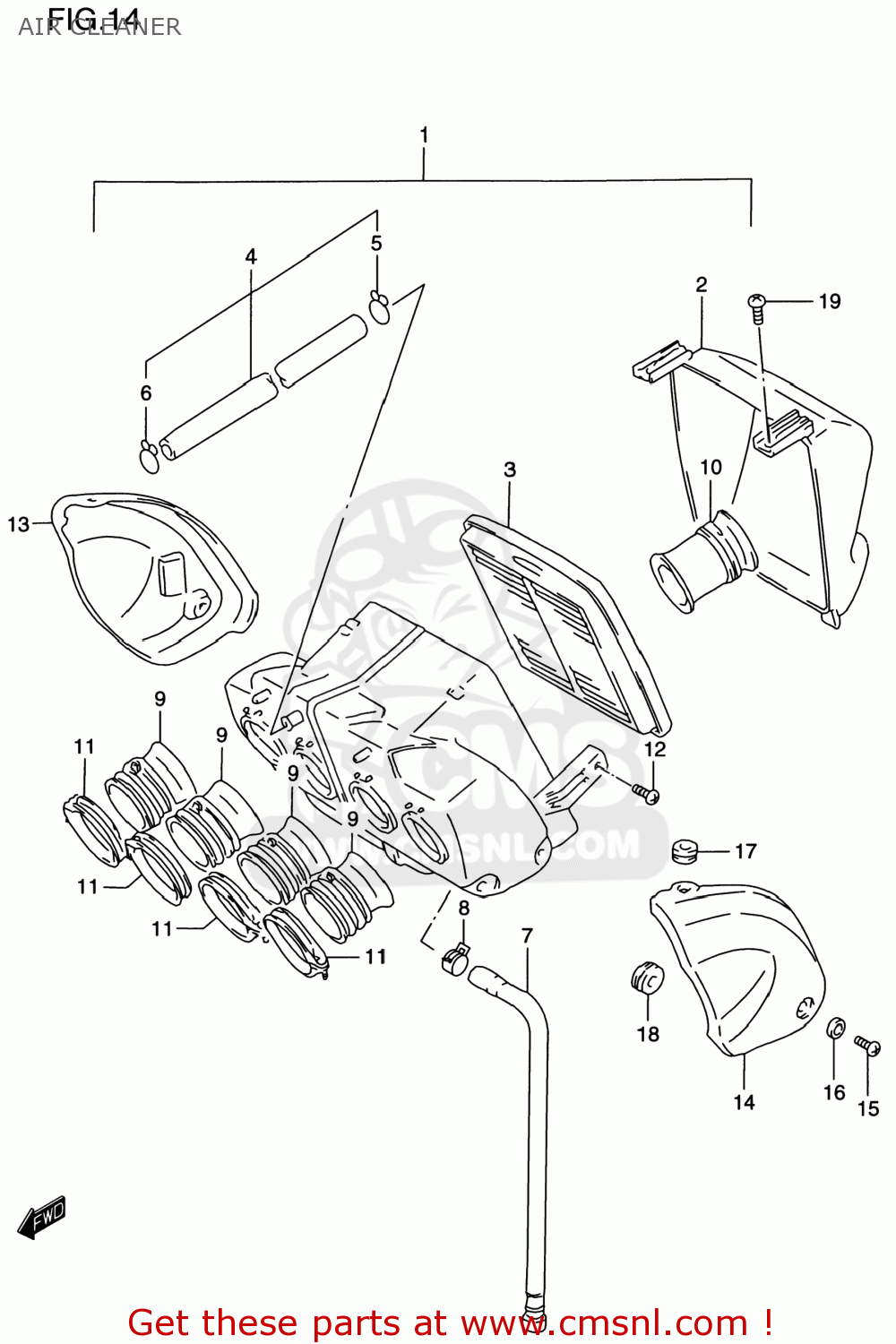

Air cleaner diagram GSF1200S BANDIT 1998 (W) USA (E03)
AIR CLEANER GSF1200S BANDIT 1998 (W) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
1370027E00
ref: 1
CLEANER ASSY,AIR
€ 324.50
2
1374017E02
ref: 2
CAP,AIR CLEANER
€ 38.50
3
1378017E00
ref: 3
FILTER,AIR
€ 34.50
4
1385027E00
ref: 4
TUBE,BREATHER
€ 18.00
5
0940114301
ref: 5
CLIP
€ 2.00
6
0940116401
ref: 6
CLIP
€ 3.00
7
1387021458
ref: 7
TUBE,DRAIN
€ 23.50
8-1
0940113413
ref: 8-1
09401-13417
CLIP
€ 2.50
8-2
0940113417
ref: 8-2
CLIP
€ 2.50
9-1
1388101D00
ref: 9-1
13881-01D01
TUBE,OUTLET
€ 20.00
9-2
1388101D01
ref: 9-2
TUBE,OUTLET
€ 20.00
10
1389131E10
ref: 10
TUBE,INLET
€ 22.00
11
0940268208
ref: 11
CLAMP
€ 6.00
12
0214205127
ref: 12
SCREW
€ 1.50
13
1391027E00
ref: 13
13910-27E01
COVER COMP,AIR CLEANER,RIGHT
€ 69.00
14
1392027E00
ref: 14
13920-27E01
COVER COMP,AIR CLEANER,LEFT
€ 72.50
15
0913905025
ref: 15
SCREW(5X14)
€ 2.00
16
0916905013
ref: 16
WASHER
€ 8.00
17
0932006504
ref: 17
CUSHION
€ 4.00
18
0932008018
ref: 18
CUSHION
€ 4.00
19
0214206123
ref: 19
02142-0612A
SCREW 6X12
€ 2.00
