REAR WHEEL (GSF1200SAV)

GSF1200S BANDIT 1998 (W) USA (E03)

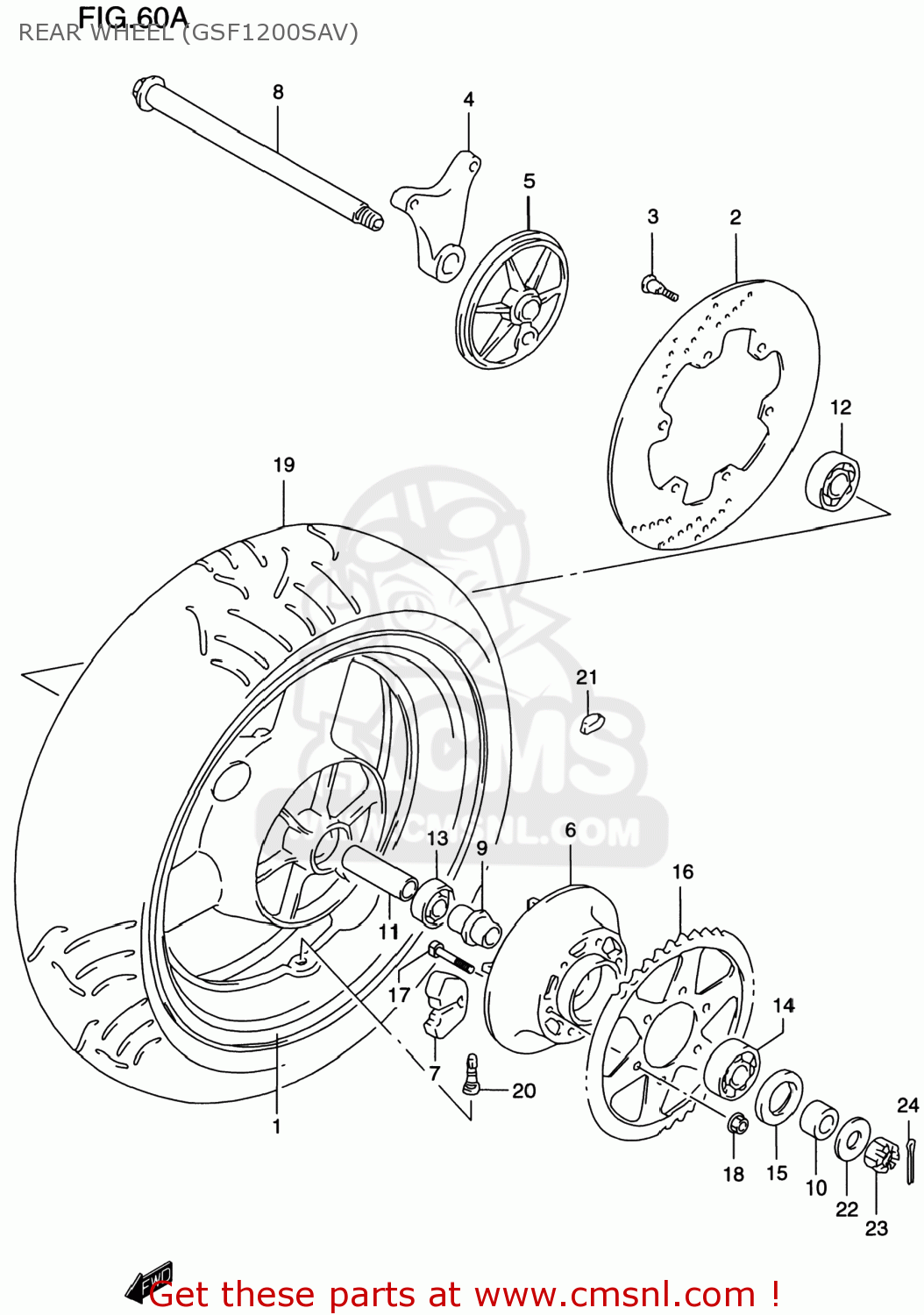

Rear wheel (gsf1200sav) diagram GSF1200S BANDIT 1998 (W) USA (E03)

REAR WHEEL (GSF1200SAV) GSF1200S BANDIT 1998 (W) USA (E03)
REAR WHEEL (GSF1200SAV) GSF1200S BANDIT 1998 (W) USA (E03)
REAR WHEEL (GSF1200SAV) GSF1200S BANDIT 1998 (W) USA (E03)
prices are in EUR
ref
part #
description
quantity
1
641002781035W
ref: 1
64100-27811-35W
WHEEL SET,REAR (17XMT5)
€ 807.00
1
641002781035W
ref: 1
64100-27811-35W
WHEEL SET,REAR (17XMT5)
€ 807.00
2
6921127E50
ref: 2
DISC,RR BRAKE
6921127E50
€ 261.00
3
0910608125
ref: 3
09106-08148
BOLT 8X33
0910608125
€ 6.00
4
6972127E50
ref: 4
BRACKET,RR CALIPER
6972127E50
€ 94.50
5
6572027E50
ref: 5
PANEL,SPEED SENSOR RR
€ 283.50
6
6461046E10
ref: 6
DRUM,RR SPROCKET
€ 198.00
7
6465117E00
ref: 7
ABSORBER,RR HUB SHOCK
6465117E00
€ 12.50
8
6471117E30
ref: 8
AXLE,RR
6471117E30
€ 103.00
9
6473348B00
ref: 9
RETAINER,RR HUB BEARING
6473348B00
€ 25.50
10
6475146E00
ref: 10
SPACER,RR AXLE,L
6475146E00
€ 21.50
11
6473140C00
ref: 11
SPACER,RR WHEEL HUB BEARING
6473140C00
€ 38.00
12
0926220114
ref: 12
BEARING(20X47X14)
0926220114
€ 26.50
13
0926220042
ref: 13
BEARING(20X47X14)
0926220042
€ 21.00
14
0926225114
ref: 14
BEARING(25X62X17)
0926225114
€ 45.00
15
0928535001
ref: 15
SEAL,OIL(35X62X8)
0928535001
€ 9.00
16
6451127E00
ref: 16
SPROCKET,RR(NT:45-530)
6451127E00
€ 118.00
17
0911910037
ref: 17
BOLT
0911910037
€ 6.00
18
0831931107
ref: 18
NUT
0831931107
€ 3.00
19
6511027E30
ref: 19
TIRE,RR(180/55 ZR17 73W)
€ 0.00
19
6511027E30
ref: 19
TIRE,RR(180/55 ZR17 73W)
€ 0.00
20
4313024A00
ref: 20
VALVE ASSY,WHEEL RIM(TR412)
4313024A00
€ 7.00
21-1
5541100A00
ref: 21-1
BALANCER,WHEEL (10G)
€ 6.50
21-2
5541200A01
ref: 21-2
55412-17G00
BALANCER,WHEEL (20G)
€ 7.00
22
0916018030
ref: 22
WASHER(18.5X28X2.6)
0916018030
€ 2.50
23
0831440183
ref: 23
08314-4018A
NUT
0831440183
€ 4.50
24
0411140408
ref: 24
04111-4040A
PIN, COTTER
0411140408
€ 2.00
