FOOTREST (MODEL Y)

GSF1200S BANDIT 1998 (W) USA (E03)

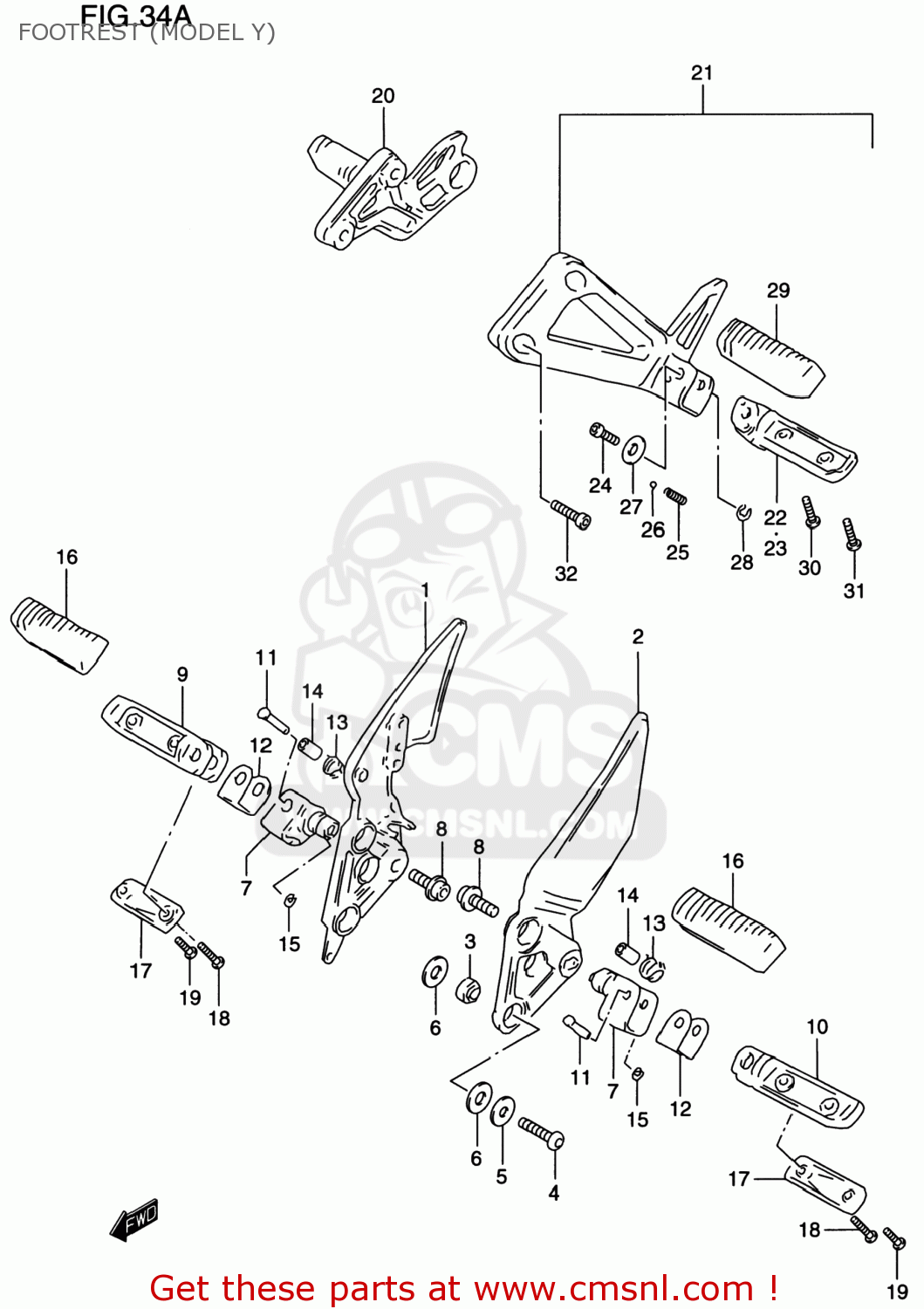

Footrest (model y) diagram GSF1200S BANDIT 1998 (W) USA (E03)

FOOTREST (MODEL Y) GSF1200S BANDIT 1998 (W) USA (E03)

FOOTREST (MODEL Y) GSF1200S BANDIT 1998 (W) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

4351027820
ref: 1

BRACKET SET,FR FOOTREST,R

€ 218.00

2

4352027820
ref: 2

BRACKET SET,FR FOOTREST,L

€ 218.00

3

0931908036
ref: 3

BUSH(12X20X16)

€ 23.50

4

0910608134
ref: 4

BOLT(8X28)

€ 4.00

5

0916008131
ref: 5
09160-08130

WASHER (8.5X24X1.6)

€ 2.00

6

0916112009
ref: 6

WASHER(12.6X24X1.9)

€ 4.50

7

4353027E00
ref: 7

HOLDER,FOOTREST

€ 56.50

8

0910610064
ref: 8

BOLT(10X28)

€ 4.50

9

4351140C00
ref: 9

BAR,FOOTREST,R

€ 37.50

10

4352140C00
ref: 10

BAR,FOOTREST,L

€ 37.50

11

0920808010
ref: 11

PIN(8X33.2)

€ 3.00

12

4357046E20
ref: 12

CUSHION,FR FOOTREST

€ 18.50

13

0944818022
ref: 13

SPRING

€ 3.50

14

0918008149
ref: 14

SPACER(8.1X12X22)

€ 7.00

15

0833211063
ref: 15
08332-1106A

E.RING

€ 2.00

16

4355040C11
ref: 16

RUBBER,FOOTREST

€ 16.00

17

4353631E20
ref: 17

BALANCER,FR FOOTREST LWR

€ 31.50

18

0214205353
ref: 18

SCREW

€ 2.00

19

0214205253
ref: 19
02142-0525B

SCREW

€ 2.50

20

4360027E50
ref: 20

FOOTREST ASSY,PILLION,R

€ 266.00

21

4370027E50
ref: 21

FOOTREST ASSY,PILLION,L

€ 237.00

22

4361040C00
ref: 22

BAR,PILLION FOOTREST,R

€ 49.00

23

4362040C00
ref: 23

BAR,PILLION FOOTREST,L

€ 49.00

24

4364240C00
ref: 24

BOLT,PILLION FOOTREST

€ 5.50

25

0944005003
ref: 25

SPRING

€ 1.50

26

0611107004
ref: 26

BALL

€ 1.50

27

0916010126
ref: 27

WASHER(10.5X24X1.6)

€ 2.50

28

0833211063
ref: 28
08332-1106A

E.RING

€ 2.00

29

4355040C11
ref: 29

RUBBER,FOOTREST

€ 16.00

30

0214205203
ref: 30
02142-0520B

SCREW 5X20

€ 2.00

31

0214205163
ref: 31
02142-0516A

SCREW

€ 2.50

32

0910608097
ref: 32

BOLT(8X25)

€ 2.50
