MANUAL BOX
GSF1200S BANDIT 2002 (K2) USA (E03)

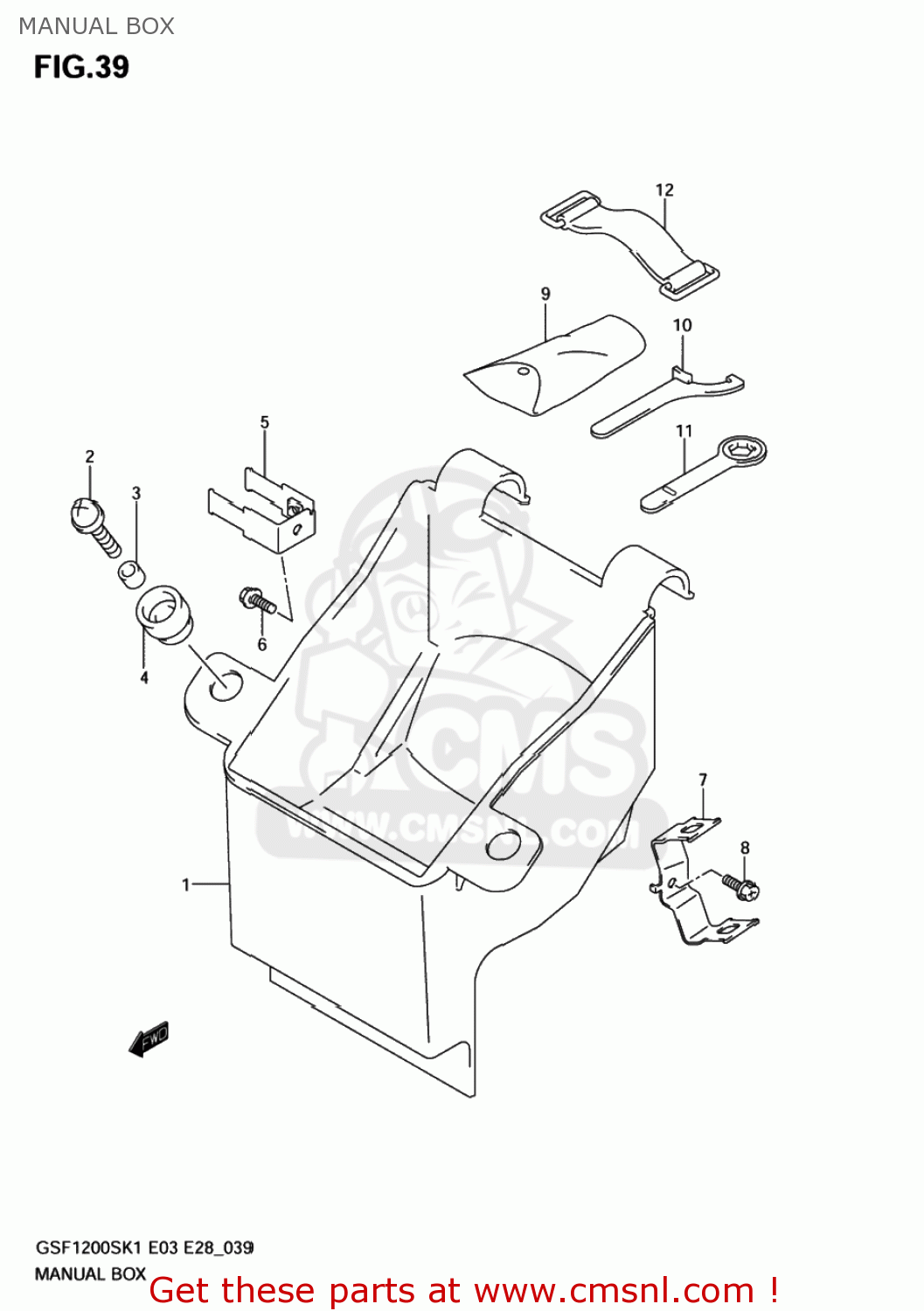

Manual box diagram GSF1200S BANDIT 2002 (K2) USA (E03)
MANUAL BOX GSF1200S BANDIT 2002 (K2) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
4743131F00
ref: 1
BOX,MANUAL
€ 31.00
2
0913606105
ref: 2
SCREW(6X20)
€ 2.00
3
0918006284
ref: 3
SPACER(6.5X10X8)
€ 3.50
4
0932010045
ref: 4
CUSHION
€ 3.50
5
4741031F00
ref: 5
PLATE,RLY FITING
€ 6.00
6
0155006123
ref: 6
01550-0612A
BOLT
€ 2.50
7-1
4741231F00
ref: 7-1
PLATE,IGNITOR FITING
€ 6.00
7-2
4741231F10
ref: 7-2
PLATE,IGNITOR FITING
€ 7.00
8
0216206123
ref: 8
02162-0612A
BOLT
€ 1.50
9
0980021017
ref: 9
TOOL ASSY
€ 59.00
10
0982200005
ref: 10
CLAMP
€ 22.00
11
0981700039
ref: 11
RING,SPANNER(24)
€ 6.50
12
0946200034
ref: 12
BAND
€ 4.50
