Buy Suzuki GSF Parts Online


SPEEDOMETER (GSF1200SK1)

GSF1200S BANDIT 2002 (K2) USA (E03)

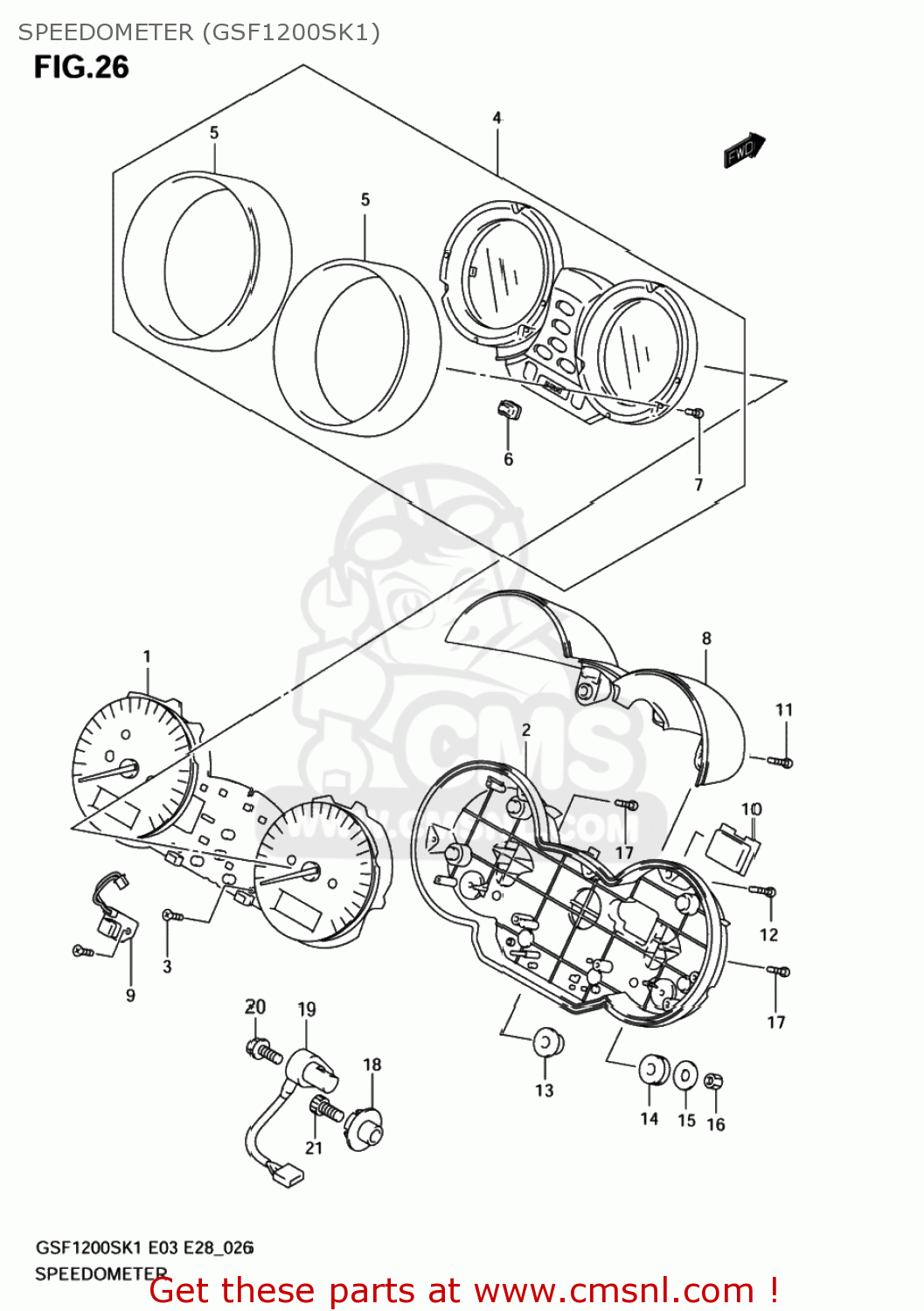

Speedometer (gsf1200sk1) diagram GSF1200S BANDIT 2002 (K2) USA (E03)

SPEEDOMETER (GSF1200SK1) GSF1200S BANDIT 2002 (K2) USA (E03)
SPEEDOMETER (GSF1200SK1) GSF1200S BANDIT 2002 (K2) USA (E03)
SPEEDOMETER (GSF1200SK1) GSF1200S BANDIT 2002 (K2) USA (E03)
prices are in EUR
ref
part #
description
quantity
1-1
3412031F60
ref: 1-1
SPEEDOMETER
€ 374.50
1-2
3412031F50
ref: 1-2
KM TELLER
€ 597.00
2
3411131F10
ref: 2
CASE ASSY,LWR
3411131F10
€ 67.00
3
3414917E10
ref: 3
SCREW(4X14)
3414917E10
€ 4.00
4
3415031F30
ref: 4
UPR CASE ASSY
3415031F30
€ 125.50
5
3419331F10
ref: 5
RING
3419331F10
€ 56.50
6
3412431F10
ref: 6
RUBBER,SWITCH
3412431F10
€ 5.50
7
3418331F10
ref: 7
SCREW(2.3X8)
3418331F10
€ 3.00
8
3415231F30
ref: 8
COVER
3415231F30
€ 176.50
9
3417731F10
ref: 9
SWITCH,PRINT CIRCUIT
3417731F10
€ 34.50
10
3419819F20
ref: 10
GROMMET
3419819F20
€ 9.00
11
3414931F10
ref: 11
SCREW,PAN HEAD(3X14)
3414931F10
€ 4.00
12
0913203008
ref: 12
SCREW(3X16)
0913203008
€ 1.50
13
3495513E00
ref: 13
CUSHION
3495513E00
€ 3.00
14
3418932B00
ref: 14
CUSHION
3418932B00
€ 5.00
15
0916005037
ref: 15
WASHER(5.5X16X1.2)
0916005037
€ 1.50
16
0831000053
ref: 16
08310-0005A
NUT
€ 2.50
17
3438331F10
ref: 17
SCREW,PAN HEAD(3X16)
3438331F10
€ 3.50
18
3498135F00
ref: 18
34981-38G01
ROTOR,SPEED
3498135F00
€ 15.00
19
3499033E10
ref: 19
34990-35F00
SENSOR,SPEED
3499033E10
€ 112.50
20
0712005123
ref: 20
07120-0512B
BOLT
0712005123
€ 2.00
21
0713008253
ref: 21
07130-0825B
BOLT
0713008253
€ 3.50
