CANISTER (E33)

GSF1200S BANDIT 2003 (K3) USA (E03)

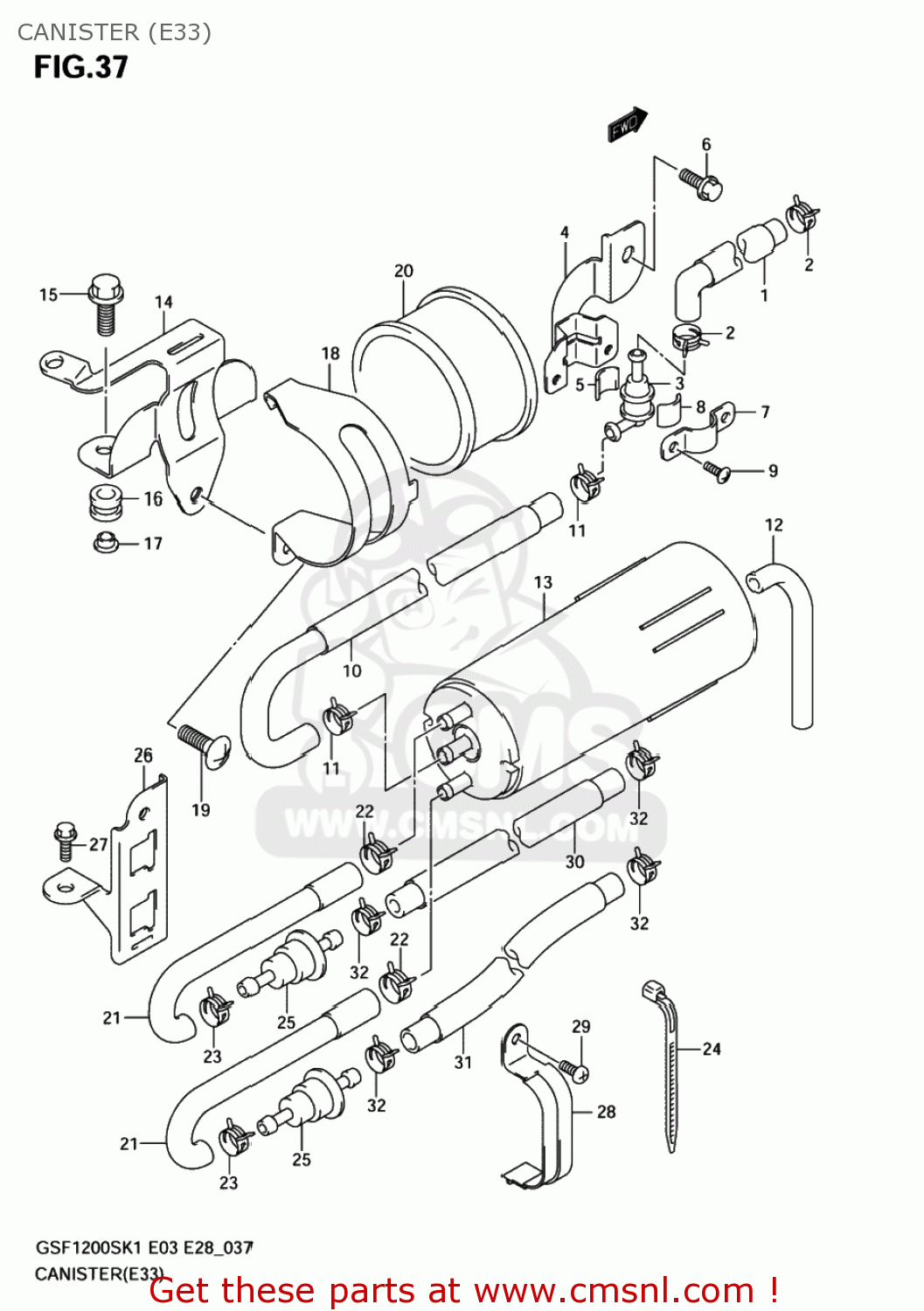

Canister (e33) diagram GSF1200S BANDIT 2003 (K3) USA (E03)

CANISTER (E33) GSF1200S BANDIT 2003 (K3) USA (E03)

CANISTER (E33) GSF1200S BANDIT 2003 (K3) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

4443431F00
ref: 1

HOSE TANK & BREATHER VALVE

€ 0.00

2

0940111413
ref: 2

CLIP

€ 2.50

3

4424017C00
ref: 3

VALVE,FUEL TANK BREATHER

€ 40.00

4

4489031F00
ref: 4

BRACKET,FUEL TANK BREATHER

€ 0.00

5

4489424A00
ref: 5

CUSHION

€ 1.50

6

0155006163
ref: 6
01550-0616A

BOLT

€ 2.50

7

4489224A00
ref: 7

PLATE,FUEL TANK BREATHER NO.2

€ 3.00

8

4489424A00
ref: 8

CUSHION

€ 1.50

9

0214204103
ref: 9
02142-0410A

SCREW

€ 1.50

10

4443531F00
ref: 10

HOSE,CSTR & BREATHER VALVE

€ 0.00

11

0940111413
ref: 11

CLIP

€ 2.50

12

1721531F00
ref: 12

HOSE,DRAIN

€ 0.00

13

1721026E00
ref: 13

CANISTER ASSY,CHARCOAL

€ 261.50

14

4488132F00
ref: 14

BRACKET,CANISTER

€ 0.00

15

0911606146
ref: 15
09116-06150

BOLT(6X25)

€ 2.50

16

0932008001
ref: 16

CUSHION

€ 3.50

17

0916906062
ref: 17

WASHER

€ 3.00

18

4488202F01
ref: 18

HOLDER,CANISTER

€ 0.00

19

0214206123
ref: 19
02142-0612A

SCREW 6X12

€ 2.00

20

4488326E00
ref: 20

CUSHION,CANISTER

€ 9.00

21

4443731F00
ref: 21

HOSE,CSTR & PURGE VALVE

€ 0.00

22

0940111407
ref: 22
09401-11415

CLIP

€ 2.50

23

0940111413
ref: 23

CLIP

€ 2.50

24

0940718402
ref: 24

CLAMP(L:165)

€ 2.50

25

4425048B00
ref: 25

VALVE,CANISTER PURGE

€ 39.50

26

4488531F01
ref: 26

BRACKET,CANISTER PURGE VALVE

€ 6.50

27

0155006123
ref: 27
01550-0612A

BOLT

€ 2.50

28

4488431E00
ref: 28

HOLDER,CANISTER PURGE

€ 0.00

29

0211205083
ref: 29
02112-0508A

SCREW

€ 2.00

30

4443831F00
ref: 30

HOSE,CARB & PURGE VALVE

€ 0.00

31

4443931F00
ref: 31

HOSE,CARBURETOR & PURGE VALVE

€ 0.00

32

0940111413
ref: 32

CLIP

€ 2.50
