SPEEDOMETER (GSF1200K1)

GSF1200S BANDIT 2003 (K3) USA (E03)

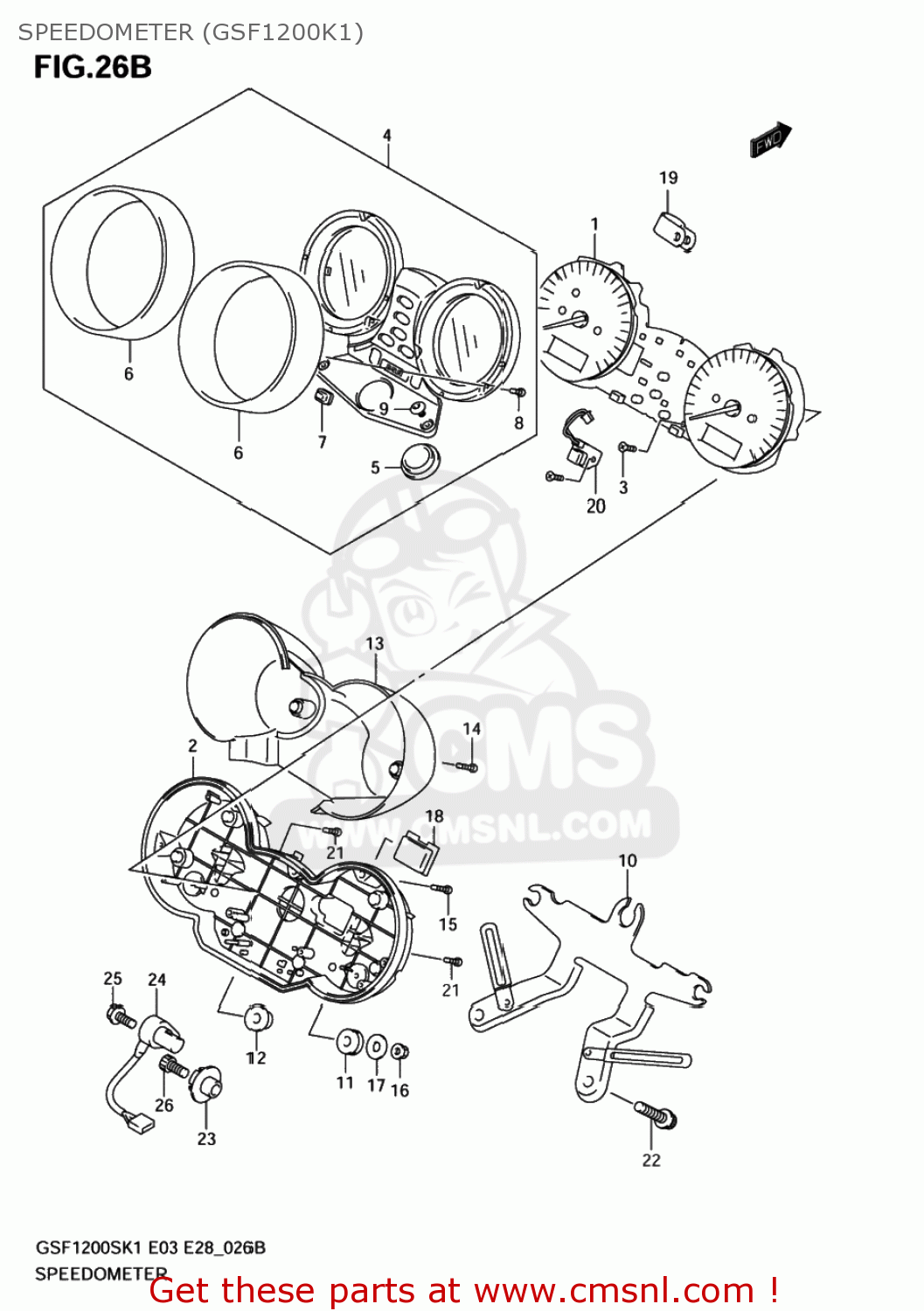

Speedometer (gsf1200k1) diagram GSF1200S BANDIT 2003 (K3) USA (E03)

SPEEDOMETER (GSF1200K1) GSF1200S BANDIT 2003 (K3) USA (E03)

SPEEDOMETER (GSF1200K1) GSF1200S BANDIT 2003 (K3) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

3412031F60
ref: 1

SPEEDOMETER

€ 374.50

2

3411131F10
ref: 2

CASE ASSY,LWR

€ 67.00

3

3414917E10
ref: 3

SCREW(4X14)

€ 4.00

4

3415031F10
ref: 4

UPR CASE ASSY

€ 183.00

5

3418831F10
ref: 5

DAMPER

€ 8.00

6

3419331F10
ref: 6

RING

€ 56.50

7

3412431F10
ref: 7

RUBBER,SWITCH

€ 5.50

8

3418331F10
ref: 8

SCREW(2.3X8)

€ 3.00

9

3419931F10
ref: 9

TAPPING CAP(5X10.2)

€ 7.50

10

3495031F10
ref: 10

BRACKET

€ 69.00

11

3418932B00
ref: 11

CUSHION

€ 5.00

12

3495513E00
ref: 12

CUSHION

€ 3.00

13

3415231F10
ref: 13

COVER

€ 187.50

14

3414931F10
ref: 14

SCREW,PAN HEAD(3X14)

€ 4.00

15

0913203008
ref: 15

SCREW(3X16)

€ 1.50

16

0831000057
ref: 16

NUT

€ 2.50

17

0916005013
ref: 17

WASHER(5.2X16X1)

€ 1.50

18

3419819F20
ref: 18

GROMMET

€ 9.00

19

3417921F00
ref: 19

CLAMP

€ 4.00

20

3417731F10
ref: 20

SWITCH,PRINT CIRCUIT

€ 34.50

21

3438331F10
ref: 21

SCREW,PAN HEAD(3X16)

€ 3.50

22

0712006163
ref: 22
07120-0616B

BOLT MAGNETO S

€ 2.50

23

3498135F00
ref: 23
34981-38G01

ROTOR,SPEED

€ 15.00

24

3499033E10
ref: 24
34990-35F00

SENSOR,SPEED

€ 112.50

25

0712005123
ref: 25
07120-0512B

BOLT

€ 2.00

26

0713008253
ref: 26
07130-0825B

BOLT

€ 3.50
