FUEL TANK (MODEL K4)
GSF1200S BANDIT 2003 (K3) USA (E03)

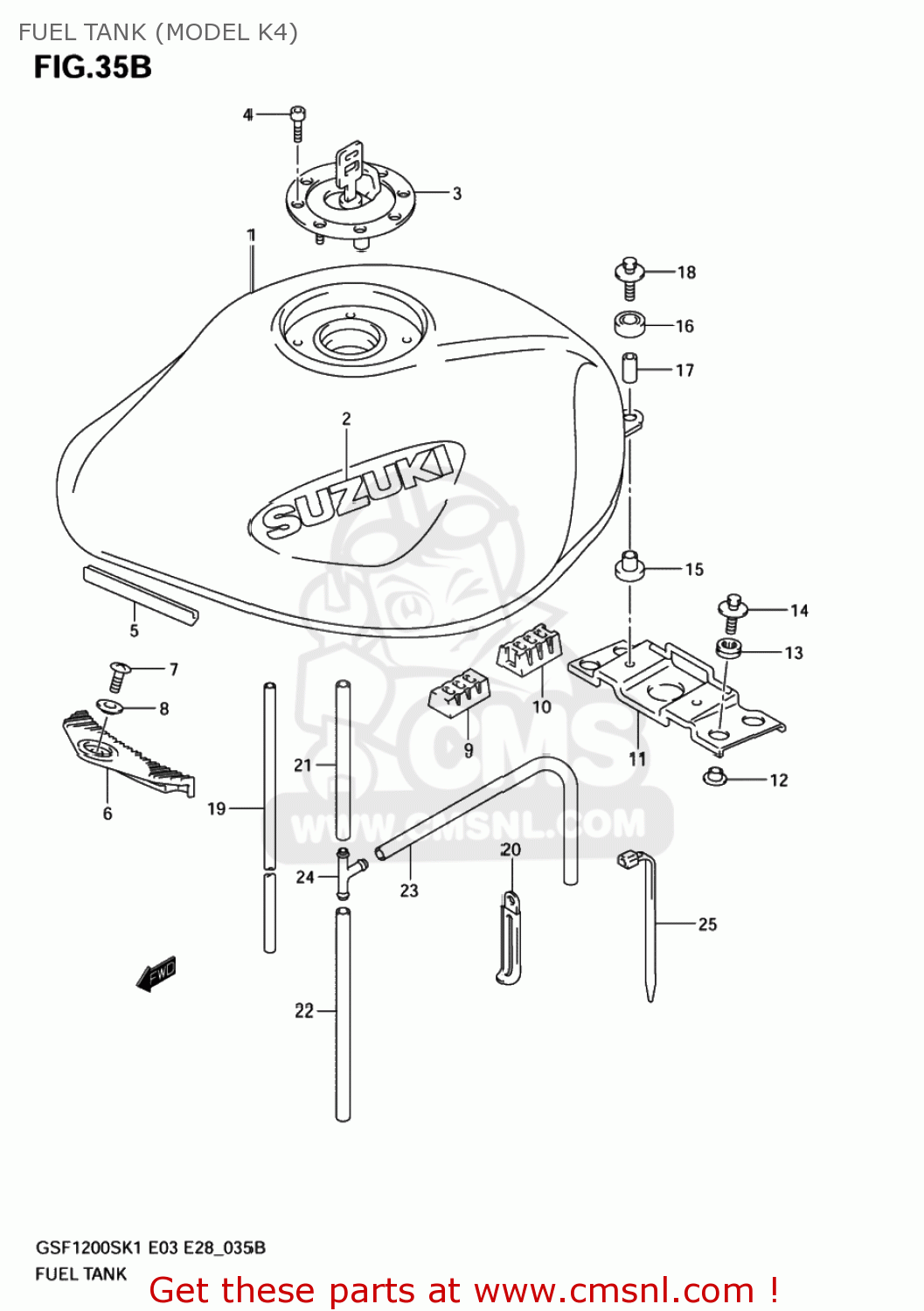

Fuel tank (model k4) diagram GSF1200S BANDIT 2003 (K3) USA (E03)
FUEL TANK (MODEL K4) GSF1200S BANDIT 2003 (K3) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
4410031F10YD8
ref: 1-1
TANK ASSY,FUEL(SILVER)
€ 795.50
1-2
4410031F10YAR
ref: 1-2
TANK ASSY,FUEL(BLUE)
€ 415.00
1-3
4410031F10YAU
ref: 1-3
TANK ASSY,FUEL(GRAY)
€ 0.00
1-4
4410031F50YD8
ref: 1-4
44100-31F51-YD8
TANK ASSY, FUEL (SILVER)
€ 634.50
1-5
4410031F50YAR
ref: 1-5
TANK ASSY, FUEL (BLUE)
€ 0.00
1-6
4410031F50YAU
ref: 1-6
TANK ASSY,FUEL(GRAY)
€ 0.00
2-1
6827104AA00AT
ref: 2-1
EMBLEM(SILVER)
€ 19.00
2-2
6827104AA0YN7
ref: 2-2
EMBLEM(BLACK)
€ 19.00
3-1
4420133810
ref: 3-1
CAP SET,FUEL TANK
€ 234.50
3-2
4420033830
ref: 3-2
CAP SET,FUEL TANK
€ 0.00
4
0910605017
ref: 4
BOLT(5X20)
€ 3.00
5
6824104X5000B
ref: 5
MOLDING
€ 23.00
6
4451127E00
ref: 6
CUSHION,FUEL TANK FR
€ 11.00
7
0214205103
ref: 7
02142-0510B
SCREW
€ 2.50
8
0916905012
ref: 8
WASHER
€ 3.00
9
4514945330
ref: 9
CUSHION,SUPPORT(50X25X32)
€ 2.00
10
4454131F00
ref: 10
CUSHION,TANK SIDE
€ 11.50
11
4455031F01
ref: 11
BRACKET,FUEL TANK RR
€ 23.50
12
0916906062
ref: 12
WASHER
€ 3.00
13
0932009009
ref: 13
CUSHION
€ 5.00
14
0911606146
ref: 14
09116-06150
BOLT(6X25)
€ 2.50
15
0932010038
ref: 15
CUSHION
€ 4.00
16
4451242E00
ref: 16
CUSHION,FUEL TANK RR
€ 3.50
17
0918006271
ref: 17
SPACER(6.5X9X18)
€ 2.00
18
0911606172
ref: 18
BOLT(6X30)
€ 2.50
19
093527011300B
ref: 19
HOSE(7X11X2000)
€ 24.50
20
0940410417
ref: 20
CLAMP(L:97)
€ 2.50
21
0935250823600
ref: 21
44420-44AR0
HOSE(5X8.2X600)
€ 13.00
22
0935250823600
ref: 22
44420-44AR0
HOSE(5X8.2X600)
€ 13.00
23
0935250823600
ref: 23
44420-44AR0
HOSE(5X8.2X600)
€ 13.00
24
0936706002
ref: 24
JOINT,3 WAY
€ 3.00
25
0940714403
ref: 25
CLAMP(L:125)
€ 2.50
