CYLINDER HEAD

GSF1200Z BANDIT 2001 (K1) USA (E03)

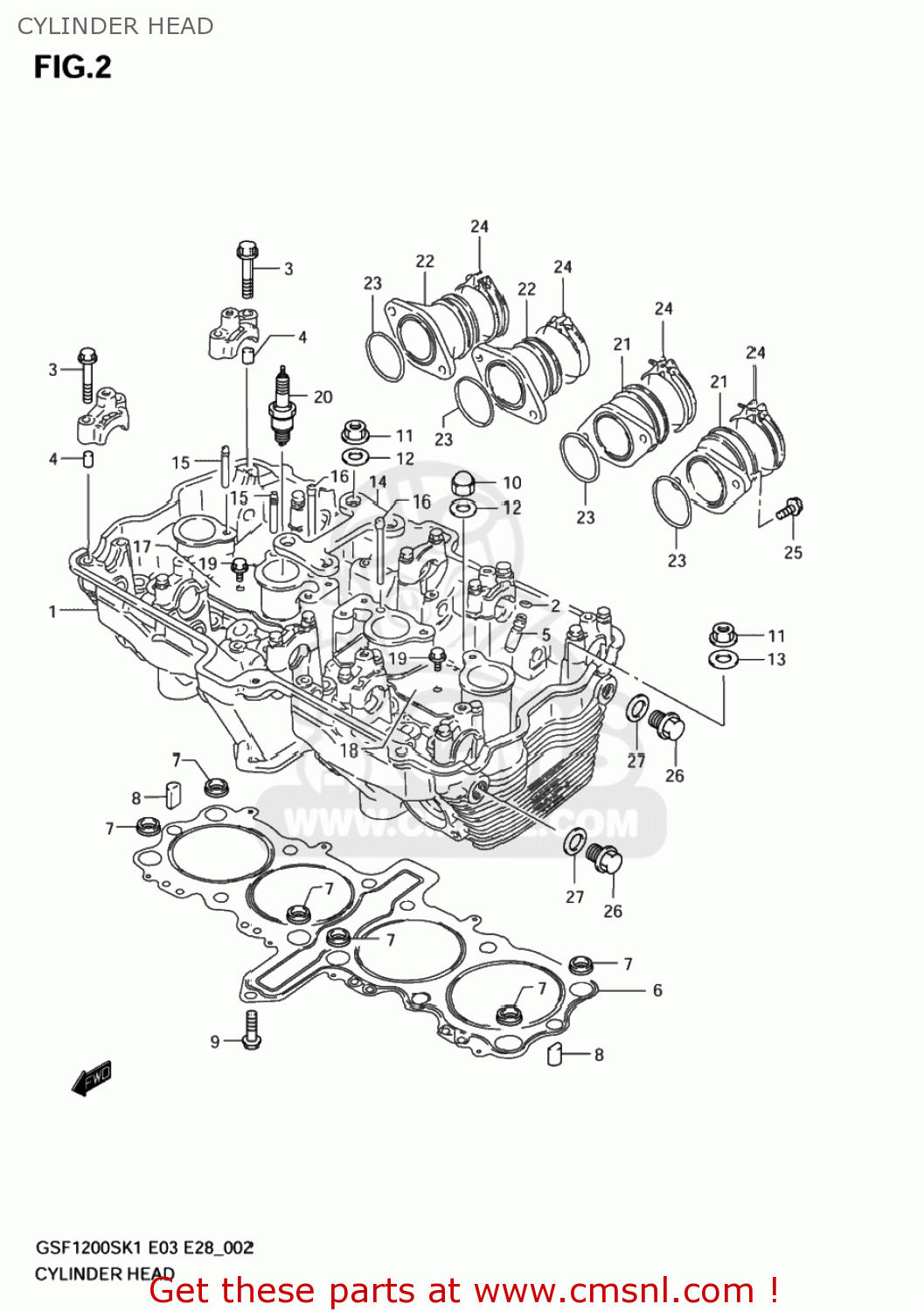

Cylinder head diagram GSF1200Z BANDIT 2001 (K1) USA (E03)

CYLINDER HEAD GSF1200Z BANDIT 2001 (K1) USA (E03)

CYLINDER HEAD GSF1200Z BANDIT 2001 (K1) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

1110027E60
ref: 1

HEAD ASSY,CYLINDER

€ 1,855.50

2

0938110004
ref: 2

RING,SNAP

€ 1.50

3

0910306026
ref: 3

BOLT(6X39)

€ 2.00

4

0920608001
ref: 4

PIN(6.2X8X11)

€ 2.00

5

1111606B70
ref: 5

GUIDE,VALVE

€ 43.00

6

1114132F01
ref: 6

GASKET,CYLINDER HEAD (NAS)

€ 91.50

7

1114332F00
ref: 7

O RING,HEAD GASKET

€ 6.00

8

0920911007
ref: 8

PIN

€ 16.00

9

0155006303
ref: 9
01550-0630A

BOLT

€ 2.50

10

0915910069
ref: 10

NUT

€ 5.00

11

0831610103
ref: 11
08316-1010B

NUT

€ 2.00

12

0916810031
ref: 12

GASKET(10.2X20X2).3 (NAS)

€ 2.00

13

0916010060
ref: 13
09160-10039

WASHER (10.5X22X2.3)

€ 2.50

14

1113840C10
ref: 14

PLATE,HEAD REINFORCEMENT

€ 27.00

15

1113127A00
ref: 15

PIPE,OIL NO.1

€ 6.00

16

1113327A00
ref: 16

PIPE,OIL NO.3

€ 7.00

17

1113527A02
ref: 17

PLATE,OIL PIPE,R

€ 4.00

18

1113627A02
ref: 18

PLATE,OIL PIPE,L

€ 4.00

19

0155006123
ref: 19
01550-0612A

BOLT

€ 2.50

20-1

0948200389
ref: 20-1

PLUG,SPARK(JR9B)

€ 8.00

20-2

0948200391
ref: 20-2

PLUG,SPARK(JR10B)

€ 9.00

21

1310132F00
ref: 21

PIPE ASSY,INTAKE,L

€ 44.00

22

1310332F00
ref: 22

PIPE ASSY,INTAKE,R

€ 44.00

23

0928042003
ref: 23

O RING(D:2.4,ID:41.7)

€ 8.50

24

0940252208
ref: 24

CLAMP

€ 5.50

25

0712006163
ref: 25
07120-0616B

BOLT MAGNETO S

€ 2.50

26-1

0924814010
ref: 26-1

PLUG

€ 5.00

26-2

0924814012
ref: 26-2

PLUG,14X12

€ 5.00

27

0916814002
ref: 27
09168-14004

GASKET(13.8X18.8X4.8) (NAS)

€ 2.50
