WIRING HARNESS (GSF1200K1/K2/K3)

GSF1200Z BANDIT 2001 (K1) USA (E03)

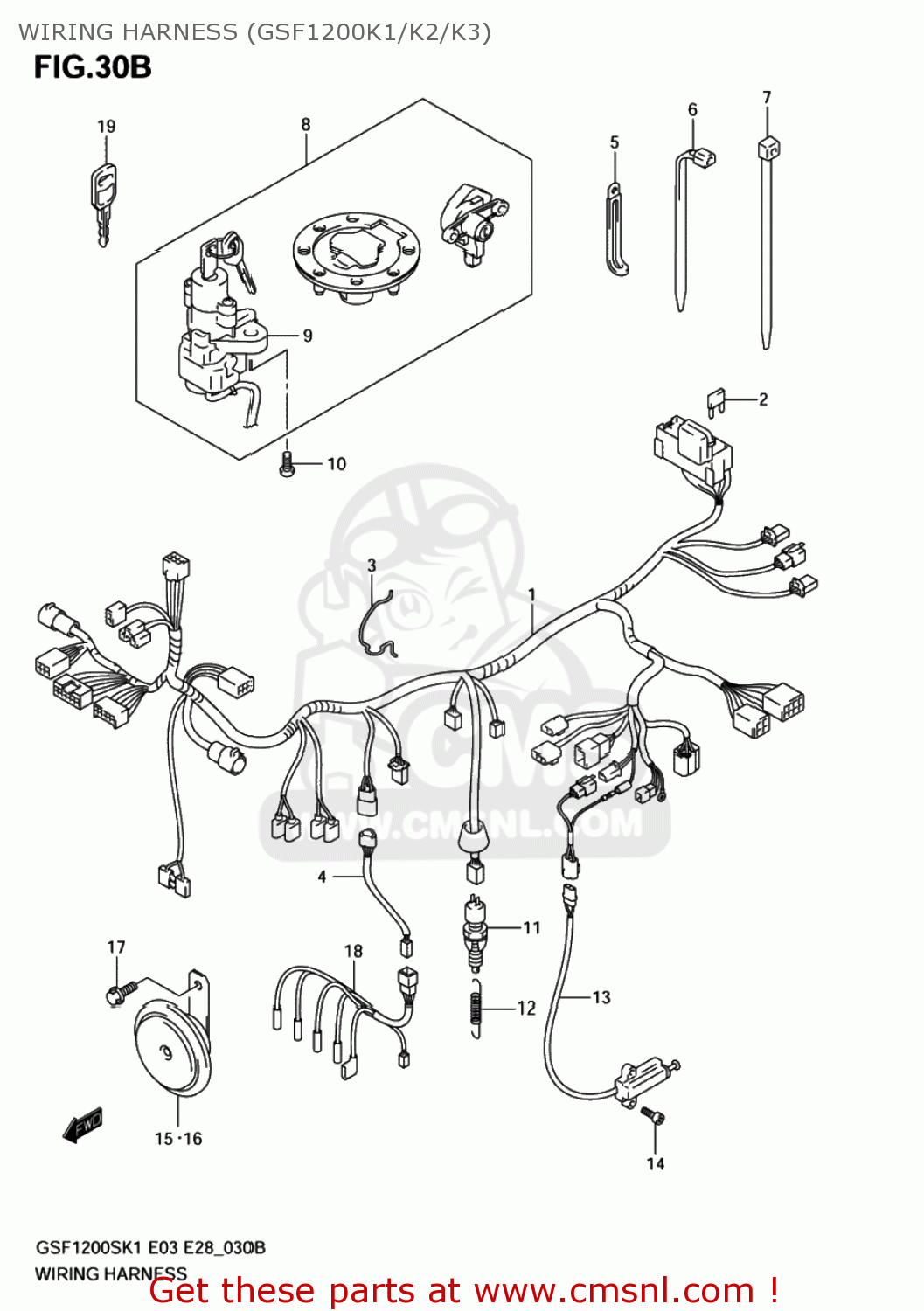

Wiring harness (gsf1200k1/k2/k3) diagram GSF1200Z BANDIT 2001 (K1) USA (E03)

WIRING HARNESS (GSF1200K1/K2/K3) GSF1200Z BANDIT 2001 (K1) USA (E03)
WIRING HARNESS (GSF1200K1/K2/K3) GSF1200Z BANDIT 2001 (K1) USA (E03)
WIRING HARNESS (GSF1200K1/K2/K3) GSF1200Z BANDIT 2001 (K1) USA (E03)
prices are in EUR
ref
part #
description
quantity
1-1
3661031F20
ref: 1-1
HARNESS,WIRING
€ 407.50
1-2
3661031FC0
ref: 1-2
HARNESS,WIRING
€ 401.50
2-1
0948110501
ref: 2-1
FUSE(10A)
0948110501
€ 3.00
2-2
0948115501
ref: 2-2
FUSE(15A)
0948115501
€ 1.00
3
3661931F20
ref: 3
GUIDE,WIRING HARNESS
€ 8.50
4
3685331F00
ref: 4
WIRE,TPS LEAD
3685331F00
€ 25.50
5-1
0940406432
ref: 5-1
CLAMP(L:65)
0940406432
€ 2.50
5-2
0940406433
ref: 5-2
CLAMP(L:80)
0940406433
€ 3.00
5-3
0940408207
ref: 5-3
CLAMP(L:80)
0940408207
€ 3.00
6-1
0940714403
ref: 6-1
CLAMP(L:125)
0940714403
€ 2.50
6-2
0940718402
ref: 6-2
CLAMP(L:165)
0940718402
€ 2.50
6-3
0940711402
ref: 6-3
CLAMP(L:90)
0940711402
€ 2.50
7
0940714407
ref: 7
CLAMP(L:145)
0940714407
€ 4.00
8-1
3710433850
ref: 8-1
37103-33890
LOCK SET
3710433850
€ 543.00
8-2
3710433890
ref: 8-2
37104-33810
LOCK SET
€ 309.00
9
3710033E60
ref: 9
37100-33E20
LOCK ASSY,STEE
€ 223.50
10
0913908016
ref: 10
BOLT(8X20)
0913908016
€ 3.50
11
3774024A00
ref: 11
SWITCH ASSY,STOP LAMP
3774024A00
€ 20.50
12
0944306054
ref: 12
SPRING
0944306054
€ 2.50
13
3784044X50
ref: 13
SWITCH ASSY,SIDE STAND
3784044X50
€ 75.50
14
0712006203
ref: 14
07120-0620B
BOLT
0712006203
€ 3.50
15
3850020E00
ref: 15
HORN ASSY,LOW PITCHED
3850020E00
€ 50.00
16
3850127E00
ref: 16
HORN ASSY,HIGH PITCHED
3850127E00
€ 69.00
17
0155008123
ref: 17
01550-0812A
BOLT
0155008123
€ 3.50
18
3685621E00
ref: 18
WIRE,CARB HEATER LEAD
3685621E00
€ 79.50
19
3714633E00
ref: 19
KEY,BLANK
3714633E00
€ 13.00
