SIGNAL GENERATOR
GSF1200Z BANDIT 2004 (K4) USA (E03)

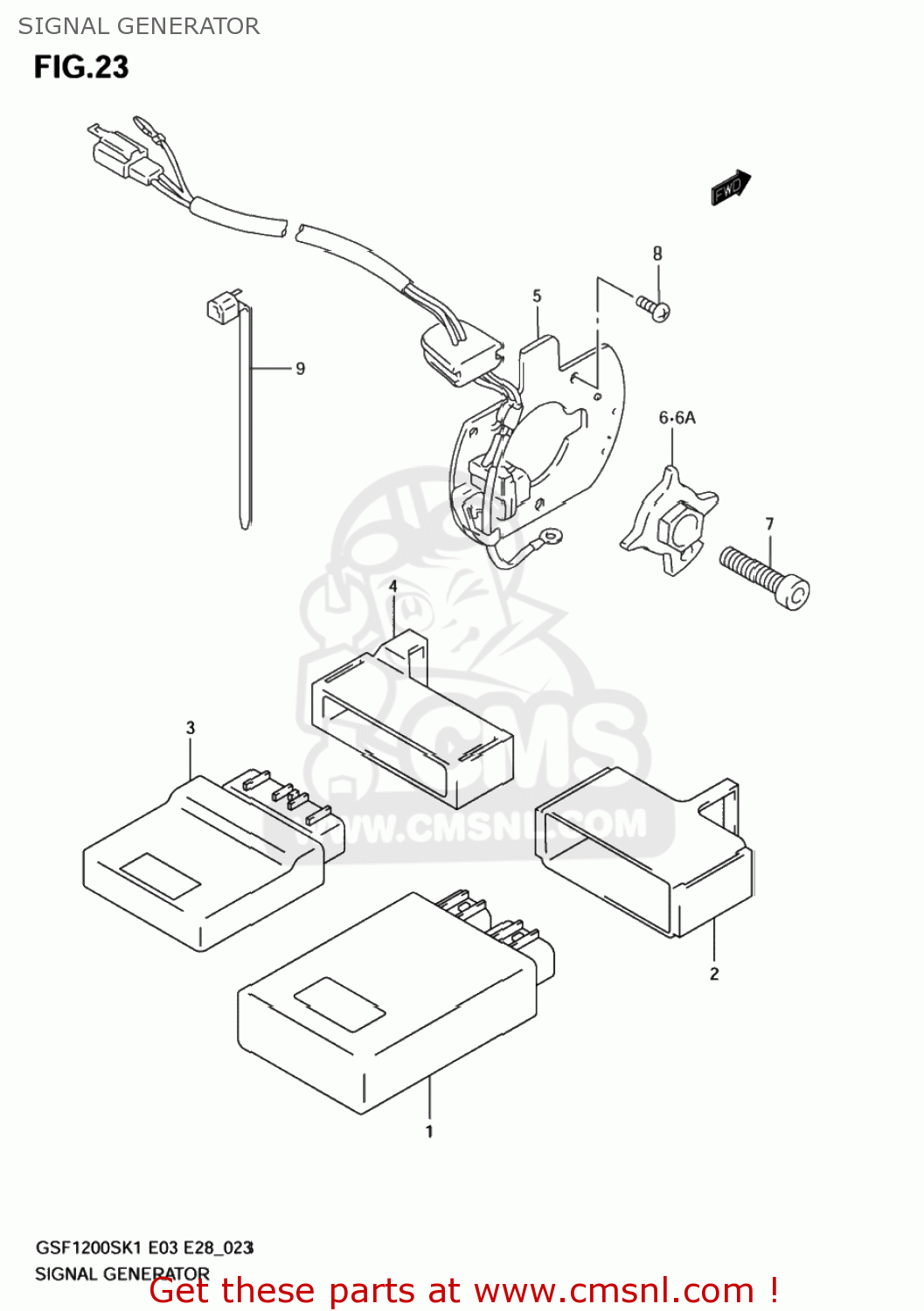

Signal generator diagram GSF1200Z BANDIT 2004 (K4) USA (E03)
SIGNAL GENERATOR GSF1200Z BANDIT 2004 (K4) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
3290031F50
ref: 1
IGNITOR ASSY
€ 0.00
2
3298040C01
ref: 2
CUSHION,IGNITOR
€ 9.50
3-1
3290031FD0
ref: 3-1
IGNITOR ASSY
€ 0.00
3-2
3290031FJ0
ref: 3-2
IGNITOR ASSY
€ 0.00
4
3298041F00
ref: 4
COVER,IGNITOR
€ 9.00
5
3311031F00
ref: 5
33110-31F01
STATOR,SIGNAL GENERATOR
€ 323.50
6
3312019C20
ref: 6
ROTOR,SIGNAL GENERATOR
€ 182.00
6A
3312048B20
ref: 6A
ROTOR,SIGNAL
€ 115.50
7
0713008303
ref: 7
07130-0830A
BOLT
€ 3.00
8
0211205103
ref: 8
02112-0510A
SCREW
€ 2.00
9
0940714403
ref: 9
CLAMP(L:125)
€ 2.50
