Buy Suzuki GSF Parts Online


STARTER CLUTCH

GSF1200Z BANDIT 2004 (K4) USA (E03)

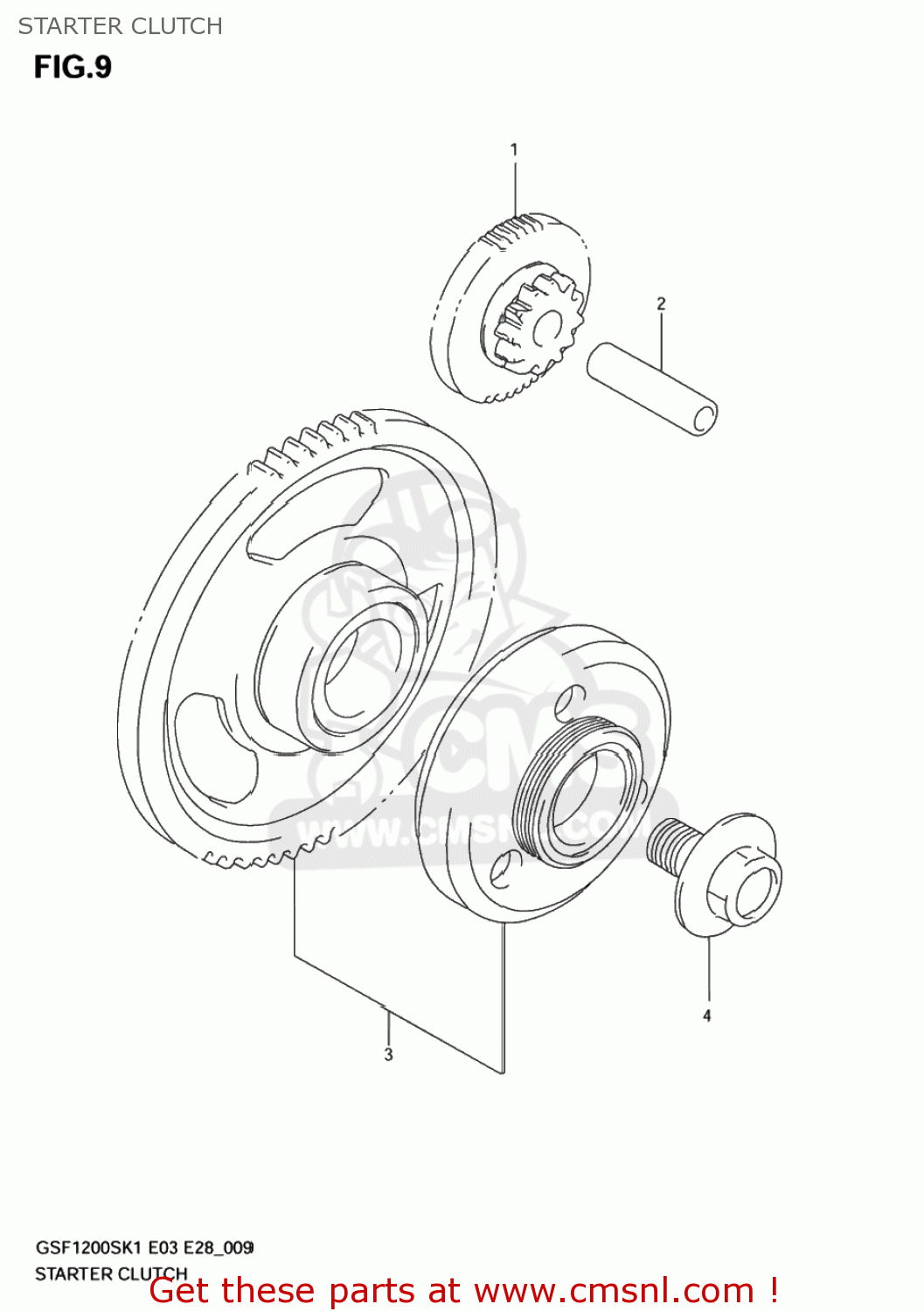

Starter clutch diagram GSF1200Z BANDIT 2004 (K4) USA (E03)

STARTER CLUTCH GSF1200Z BANDIT 2004 (K4) USA (E03)
STARTER CLUTCH GSF1200Z BANDIT 2004 (K4) USA (E03)
STARTER CLUTCH GSF1200Z BANDIT 2004 (K4) USA (E03)
prices are in EUR
ref
part #
description
quantity
1
1261106B00
ref: 1
GEAR,STARTER IDLE(NT:12,53)
1261106B00
€ 68.50
2
0920611014
ref: 2
PIN(7X11X42)
0920611014
€ 8.00
3
1260027831
ref: 3
12600-27832
CLUTCH SET,STARTER
€ 397.50
4
0910314005
ref: 4
BOLT(14X21)
0910314005
€ 17.00
