FRONT CALIPER

GSF1250S BANDIT 2009 (K9) USA (E03)

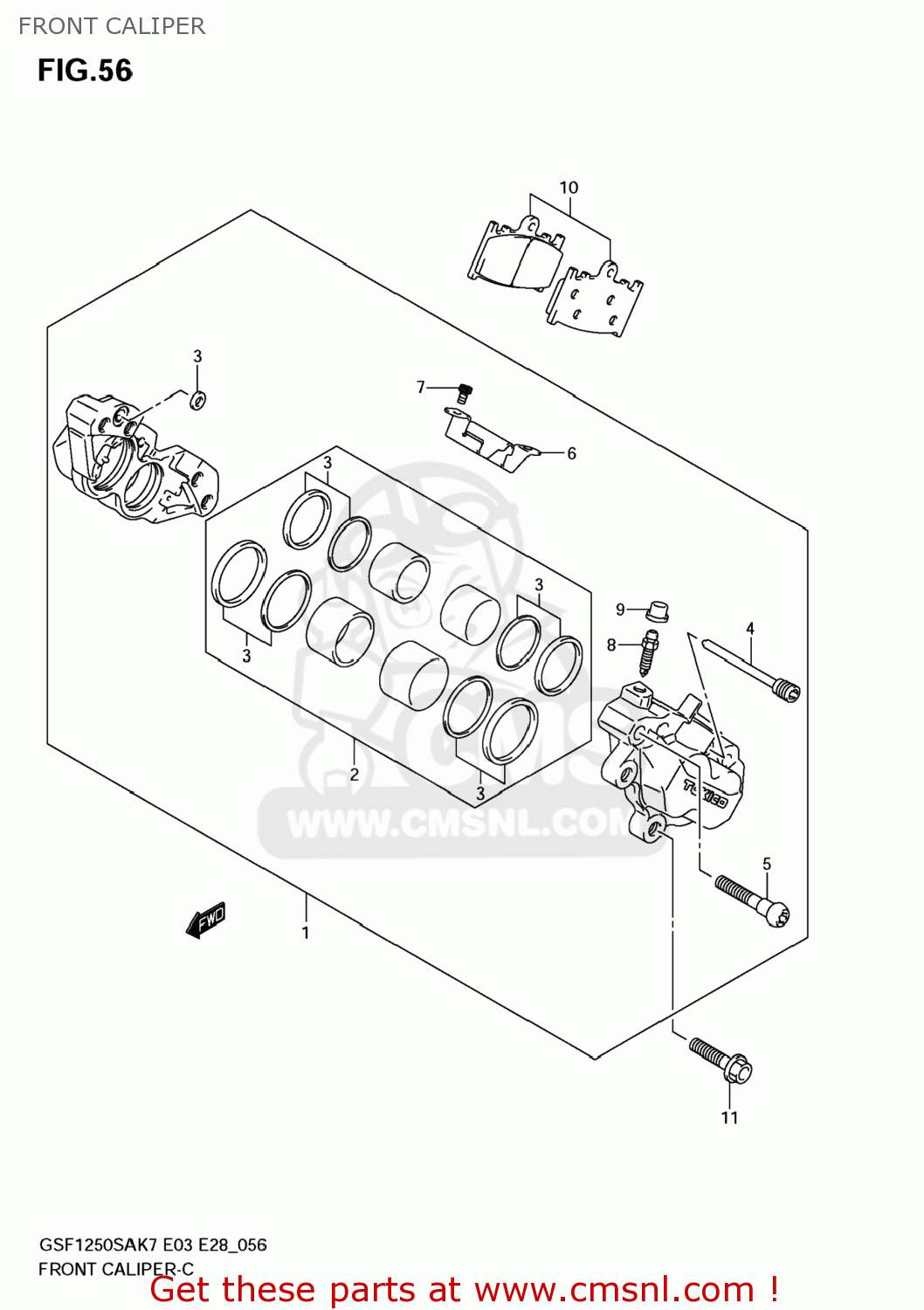

Front caliper diagram GSF1250S BANDIT 2009 (K9) USA (E03)

prices are in EUR

ref

part #

description

quantity

1-1

5910035F60999
ref: 1-1

CALIPER ASSY,FR,R

€ 378.50

1-2

5930035F60999
ref: 1-2

CALIPER ASSY,FR,L

€ 378.00

5930034811
ref: 2

PISTON SET

€ 82.00

5930034821
ref: 3

SEAL SET,PISTON

€ 37.00

5914140F00
ref: 4

PIN,PAD

€ 31.50

5914518G00
ref: 5

BOLT

€ 7.50

6-1

5915235F00
ref: 6-1

COVER,CALIPER DUST

€ 13.50

6-2

5915135F00
ref: 6-2

COVER,CALIPER DUST

€ 14.50

5915322D00
ref: 7

SCREW

€ 4.50

5912118410
ref: 8

BLEEDER

€ 8.00

5515666310
ref: 9

CAP,BLEEDER PLUG

€ 6.00

10-1

5910135810
ref: 10-1

PAD SET (NAS)

€ 65.50

10-2

5910035880
ref: 10-2

PAD SET (NAS)

€ 54.00

0910308359
ref: 11

BOLT(8X28)

€ 4.00
