FUEL PUMP
GSF1250S BANDIT 2009 (K9) USA (E03)

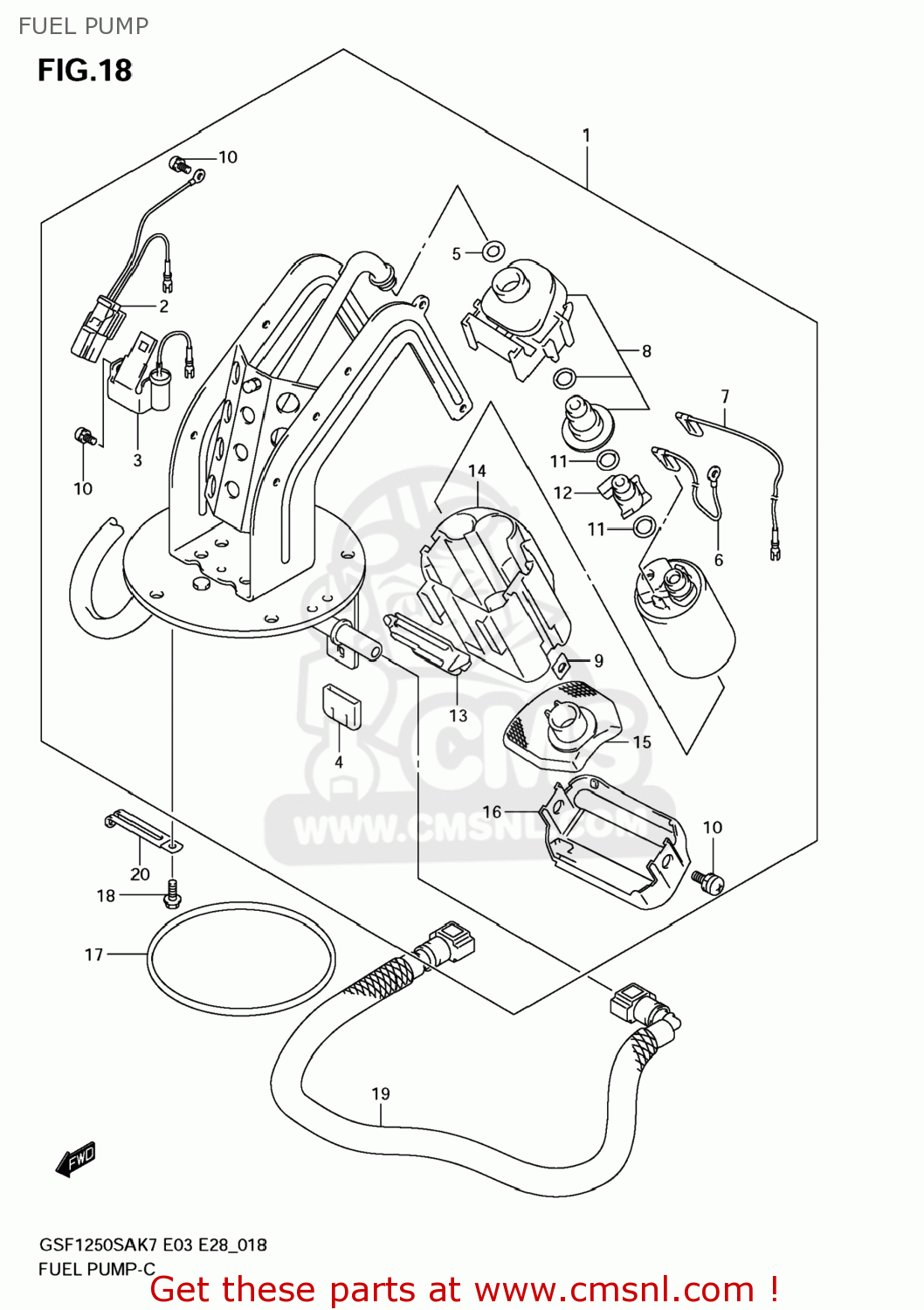

Fuel pump diagram GSF1250S BANDIT 2009 (K9) USA (E03)
FUEL PUMP GSF1250S BANDIT 2009 (K9) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
1510018H00
ref: 1
15100-18H10
PUMP ASSY,FUEL
€ 653.50
2
1524618H00
ref: 2
HARNESS,GAUGE
€ 67.50
3
1524018H00
ref: 3
THERMISTOR
€ 156.00
4
1558318H00
ref: 4
CAP,STAY
€ 17.00
5
1511335F00
ref: 5
O RING
€ 7.50
6
1511405H00
ref: 6
WIRE,EARTH
€ 19.50
7
1511505H00
ref: 7
WIRE,LEAD
€ 21.00
8
1561018H00
ref: 8
REGULATOR
€ 165.50
9
1511705H00
ref: 9
STOPPER
€ 4.50
10
1511610F00
ref: 10
SCREW
€ 3.50
11
1511305H00
ref: 11
O RING
€ 17.00
12
1511205H00
ref: 12
JOINT
€ 17.00
13
1511818H00
ref: 13
COVER,CUP
€ 18.00
14
1511118H00
ref: 14
CUP
€ 25.00
15
1542005H00
ref: 15
STRAINER
€ 20.50
16
1542518H00
ref: 16
VESSEL
€ 11.00
17
1520135F00
ref: 17
O RING,FUEL PUMP
€ 26.00
18
071200612A
ref: 18
BOLT
€ 3.50
19
1581018H00
ref: 19
15810-18H10
HOSE COMP,FUEL
€ 105.00
20
0940406429
ref: 20
CLAMP(L:45)
€ 2.50
