FRAME (GSF600ST/SUT)

GSF600S 1996 (T) (E02 E04 E17 E18 E22 E24 E25 E34)

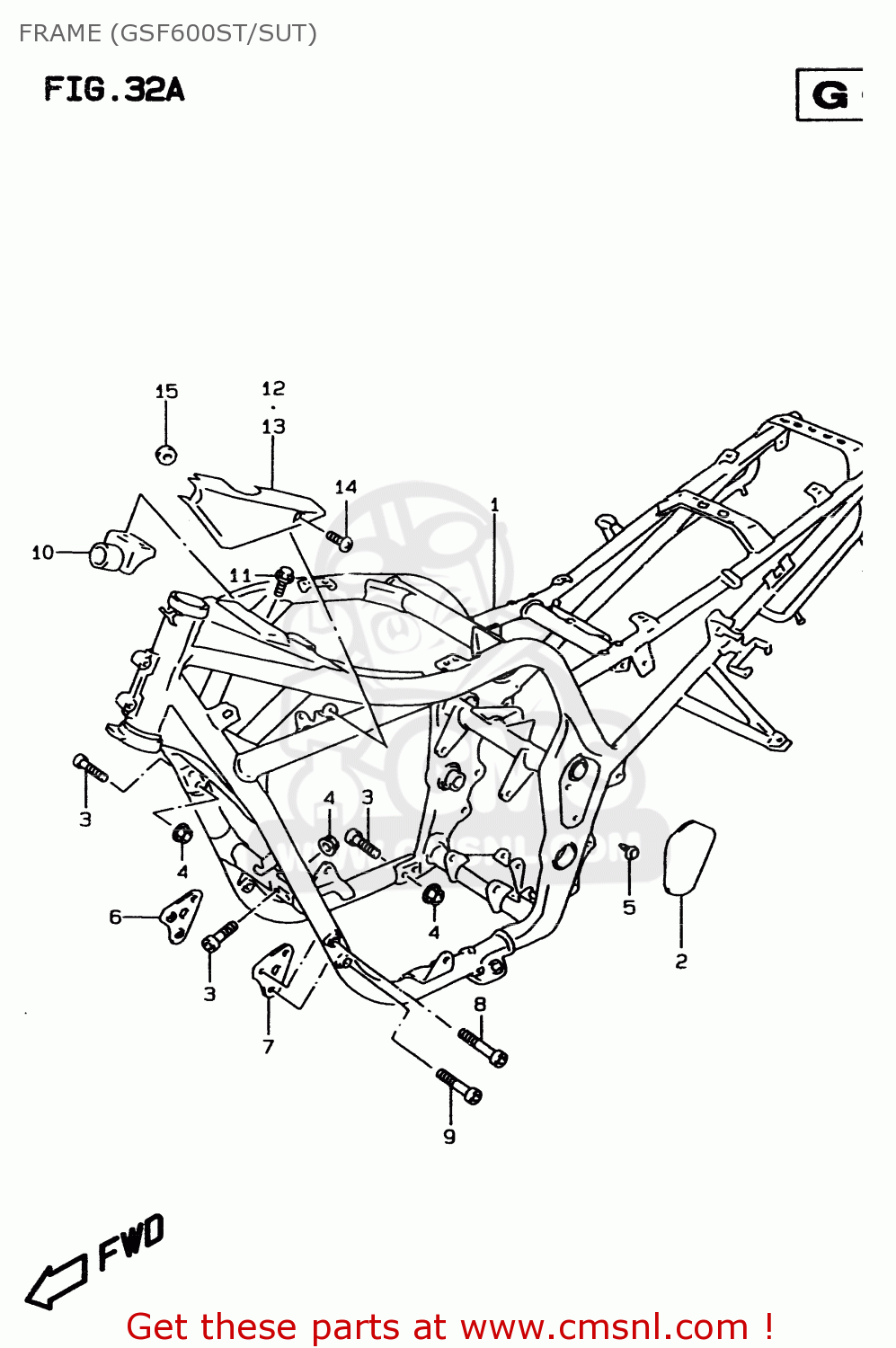

Frame (gsf600st/sut) diagram GSF600S 1996 (T) (E02 E04 E17 E18 E22 E24 E25 E34)

FRAME (GSF600ST/SUT) GSF600S 1996 (T) (E02 E04 E17 E18 E22 E24 E25 E34)

FRAME (GSF600ST/SUT) GSF600S 1996 (T) (E02 E04 E17 E18 E22 E24 E25 E34)

prices are in EUR

ref

part #

description

quantity

1-1

4110026E0028V
ref: 1-1

FRAME COMP

€ 1,221.50

1-2

4110026E000WP
ref: 1-2

FRAME COMP

€ 1,412.50

1-3

4110026E001ZV
ref: 1-3

FRAME COMP

€ 1,986.00

1-4

4110026E5028V
ref: 1-4
E18

FRAME COMP

€ 1,221.50

1-5

4110026E500WP
ref: 1-5
E18

FRAME COMP

€ 1,412.50

1-6

4110026E501ZV
ref: 1-6
E18

FRAME COMP

€ 1,986.00

2-1

4163926E00
ref: 2-1

COVER,FRAME BODY,R

€ 12.50

2-2

4164926E00
ref: 2-2

COVER,FRAME BODY,L

€ 12.50

3

0910610019
ref: 3

BOLT(10X33)

€ 4.00

4

0831931103
ref: 4

NUT

€ 3.00

5

0940907329
ref: 5

CLIP

€ 3.00

6-1

4191026E0028V
ref: 6-1

PLATE,ENG MTG,R

€ 23.50

6-2

4191026E000WP
ref: 6-2

PLATE COMP,ENGINE MOUNTING

€ 21.00

6-3

4191026E001ZV
ref: 6-3

PLATE,ENG MNT,

€ 21.00

7-1

4192026E0028V
ref: 7-1

PLATE COMP,ENGINE MOUNTING

€ 141.50

7-2

4192026E000WP
ref: 7-2

PLATE COMP,ENGINE MOUNTING

€ 141.50

7-3

4192026E001ZV
ref: 7-3

PLATE,ENG MNT,

€ 141.50

8

0713008503
ref: 8

BOLT

€ 3.50

9

0713008453
ref: 9

BOLT

€ 3.00

10

4255026E00
ref: 10

DAMPER,FRAME

€ 58.00

11

0155006123
ref: 11

BOLT

€ 2.50

12

4751126E10291
ref: 12

COVER,FRAME HEAD,R

€ 15.50

13

4752126E10291
ref: 13

COVER,FRAME HEAD,L

€ 22.00

14

0913905021
ref: 14

SCREW(5X12)

€ 2.00

15

0932008013
ref: 15

CUSHION

€ 4.00

all assemblies
