REAR MASTER CYLINDER

GSF600S 1996 (T) (E02 E04 E17 E18 E22 E24 E25 E34)

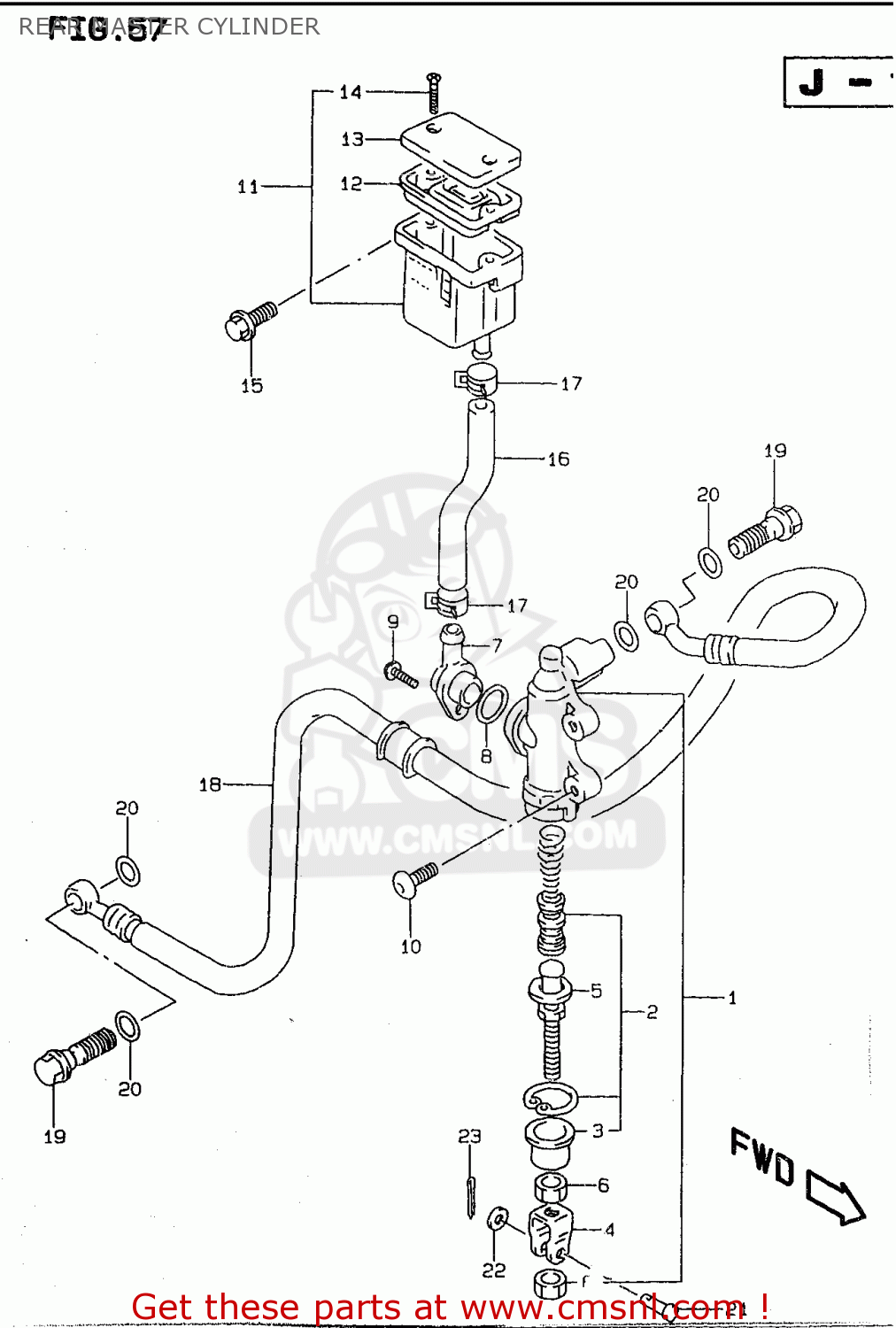

Rear master cylinder diagram GSF600S 1996 (T) (E02 E04 E17 E18 E22 E24 E25 E34)

REAR MASTER CYLINDER GSF600S 1996 (T) (E02 E04 E17 E18 E22 E24 E25 E34)

REAR MASTER CYLINDER GSF600S 1996 (T) (E02 E04 E17 E18 E22 E24 E25 E34)

prices are in EUR

ref

part #

description

quantity

1

6960017C01
ref: 1

CYLINDER ASSY,RR MASTER

€ 194.50

2

6960004820
ref: 2

PISTON/CUP SET

€ 31.00

3

6969100A00
ref: 3

BOOT

€ 3.50

4

6969227A30
ref: 4

YOKE

€ 12.50

5

6967048B00
ref: 5

ROD,PUSH

€ 20.50

6

6969305A00
ref: 6

NUT

€ 1.50

7

6967205A00
ref: 7

CONNECTOR

€ 4.50

8

6968634200
ref: 8

O RING

€ 3.50

9

0211274123
ref: 9

SCREW

€ 2.50

10

0910608118
ref: 10

BOLT 8X20

€ 4.00

11

6974038B21
ref: 11

TANK ASSY,RESERVOIR

€ 85.50

12

5966704700
ref: 12

DIAPHRAGM

€ 8.00

13

5966905D00
ref: 13

CAP

€ 13.50

14

6968904A00
ref: 14

SCREW

€ 2.00

15

0155006123
ref: 15

BOLT

€ 2.50

16

6973126E00
ref: 16

HOSE,RESERVOIR TANK

€ 21.00

17

0940113417
ref: 17

CLIP

€ 2.50

18

6948026E00
ref: 18

HOSE,RR BRAKE

€ 77.50

19-1

0936010039
ref: 19-1
MODEL S/T

BOLT UNION

€ 6.50

19-2

0936010041
ref: 19-2
MODEL V/W

BOLT UNION

€ 6.50

20

0916110009
ref: 20

WASHER(10X15X1.5)

€ 2.00

21

0920006037
ref: 21

PIN

€ 5.00

22

0832201063
ref: 22

WASHER

€ 2.00

23

0411120158
ref: 23

PIN

€ 1.50
