SEAT (MODEL T/V/W)

GSF600S 1996 (T) (E02 E04 E17 E18 E22 E24 E25 E34)

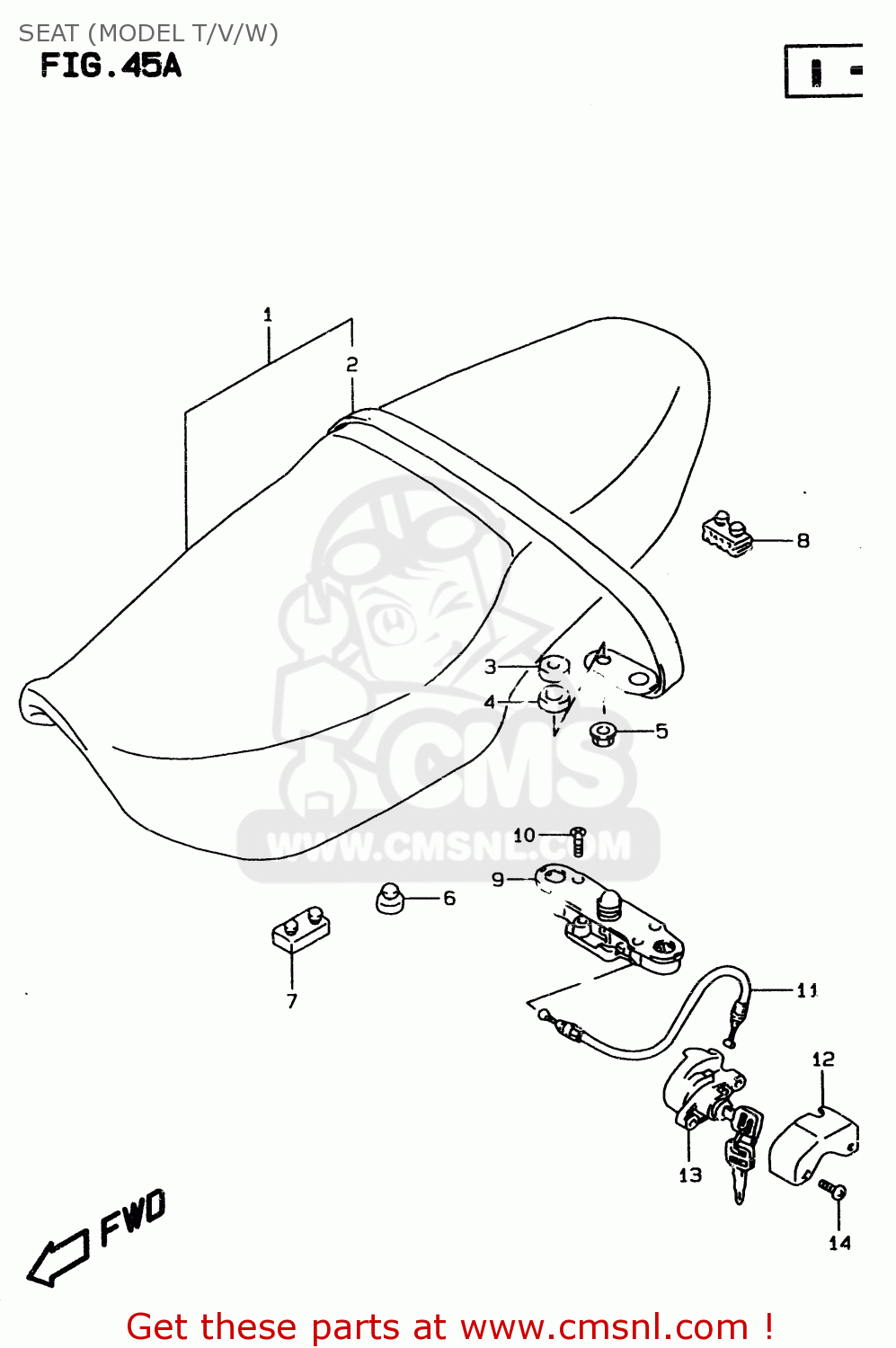

Seat (model t/v/w) diagram GSF600S 1996 (T) (E02 E04 E17 E18 E22 E24 E25 E34)

SEAT (MODEL T/V/W) GSF600S 1996 (T) (E02 E04 E17 E18 E22 E24 E25 E34)

SEAT (MODEL T/V/W) GSF600S 1996 (T) (E02 E04 E17 E18 E22 E24 E25 E34)

prices are in EUR

ref

part #

description

quantity

1-1

4510026E03P21
ref: 1-1
MODEL T

SEAT ASSEMBLY (BLACK)

€ 392.50

1-2

4510026E11P21
ref: 1-2
MODEL V/W

SEAT ASSY

€ 820.00

2

4518026E01P21
ref: 2

BAND ASSY,SEAT(BLACK)

€ 29.50

3

0932010038
ref: 3

CUSHION

€ 4.00

4

0932014017
ref: 4

CUSHION

€ 3.00

5

0831620063
ref: 5

NUT

€ 2.00

6

0932110012
ref: 6

CUSHION

€ 3.00

7

0932108006
ref: 7

CUSHION

€ 3.00

8

4514931300
ref: 8

CUSHION,SEAT(40X20X15)

€ 2.00

9

4522013601
ref: 9

LOCK ASSY,SEAT STRIKER

€ 47.00

10

0211206303
ref: 10

SCREW 6X30

€ 2.50

11

4528008A00
ref: 11

CABLE,SEAT LOCK

€ 13.00

12

4528926E00
ref: 12

GUARD,SEAT LOCK

€ 13.00

13-1

9570012852
ref: 13-1
MODEL T/V

LOCK SET,SEAT

€ 110.50

13-2

9570010833
ref: 13-2
MODEL W

LOCK SET,SEAT & HELMET

€ 99.50

14

0913906092
ref: 14

SCREW(6X14)

€ 3.50

all assemblies

* COLOR CHART *

* CATALOG PREFACE *

* CATALOG PREFACE *

* CONVERSION CHART *
