Buy Suzuki GSF Parts Online
home
CANISTER (E33)
GSF600S BANDIT 1997 (V) USA (E03)

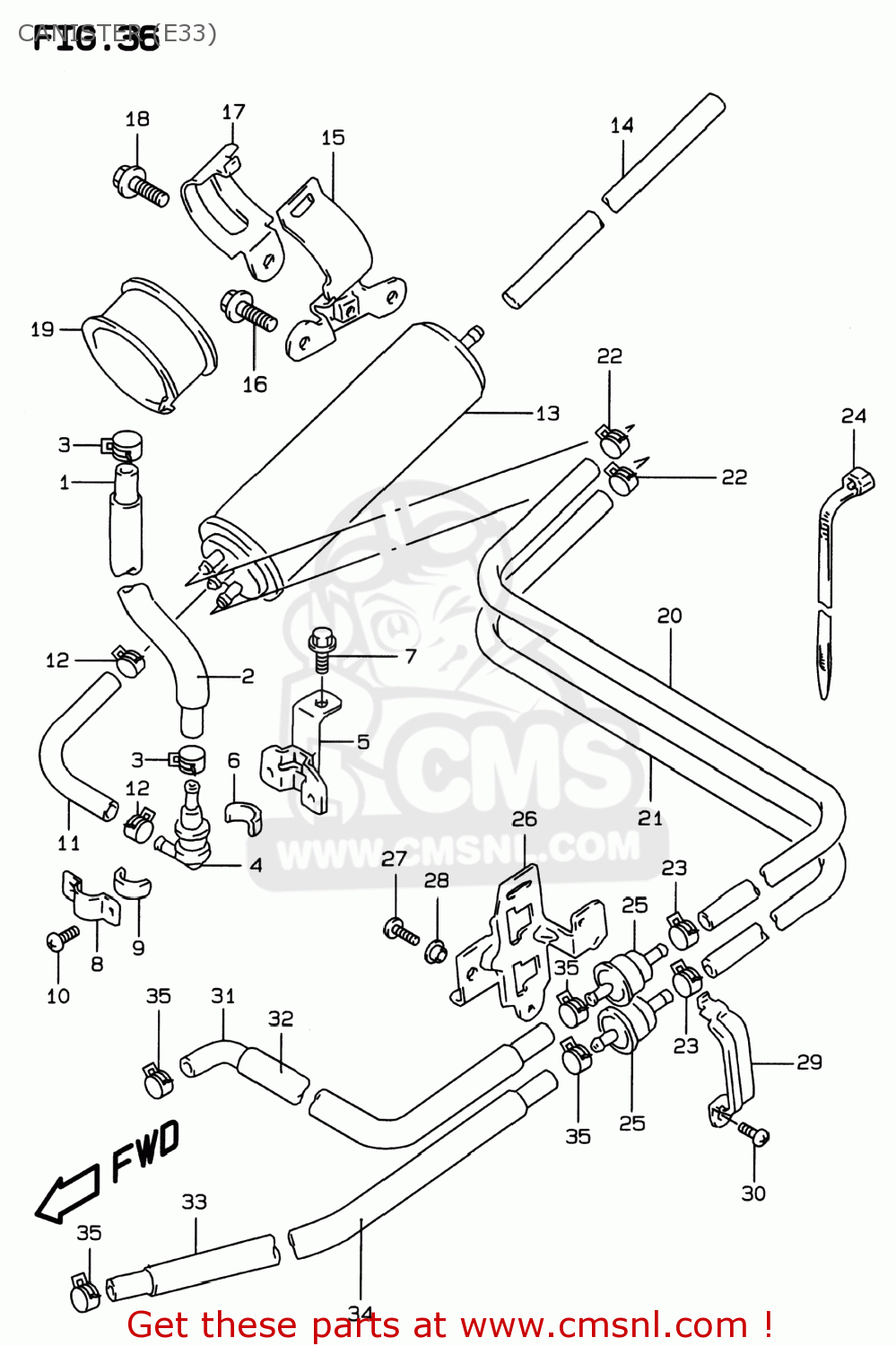

Canister (e33) diagram GSF600S BANDIT 1997 (V) USA (E03)
CANISTER (E33) GSF600S BANDIT 1997 (V) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
0935454115600
ref: 1-1
09355-54115-600
HOSE (5.4X11.4X600)
€ 20.00
1-2
0935554116600
ref: 1-2
HOSE(5.4X11.4X600)
€ 12.00
2
0935114152600
ref: 2
PROTECTOR(14.5X15.5X600)
€ 9.00
3
0940111413
ref: 3
CLIP
€ 2.50
4
4424017C00
ref: 4
VALVE,FUEL TANK BREATHER
€ 40.00
5
4489026E00
ref: 5
BRACKET COMP,FUEL TANK
€ 0.00
6
4489424A00
ref: 6
CUSHION
€ 1.50
7
0155006163
ref: 7
01550-0616A
BOLT
€ 2.50
8
4489224A00
ref: 8
PLATE,FUEL TANK BREATHER NO.2
€ 3.00
9
4489424A00
ref: 9
CUSHION
€ 1.50
10
0214204103
ref: 10
02142-0410A
SCREW
€ 1.50
11-1
0935454115600
ref: 11-1
09355-54115-600
HOSE (5.4X11.4X600)
€ 20.00
11-2
0935554116600
ref: 11-2
HOSE(5.4X11.4X600)
€ 12.00
12
0940111413
ref: 12
CLIP
€ 2.50
13
1721026E00
ref: 13
CANISTER ASSY,CHARCOAL
€ 261.50
14-1
0935470123600
ref: 14-1
44421-12FR0
HOSE (7X12X600)
€ 26.00
14-2
0935570125600
ref: 14-2
44421-12FR0
HOSE(7X12X600)
€ 26.00
15
4488126E00
ref: 15
BRACKET,CANISTER
€ 0.00
16
0155006163
ref: 16
01550-0616A
BOLT
€ 2.50
17
4488226E00
ref: 17
HOLDER,CANISTER
€ 8.00
18
0214206123
ref: 18
02142-0612A
SCREW 6X12
€ 2.00
19
4488326E00
ref: 19
CUSHION,CANISTER
€ 9.00
20
0935954111600
ref: 20
HOSE(5.4X11.4X600)
€ 22.00
21
0935954111600
ref: 21
HOSE(5.4X11.4X600)
€ 22.00
22
0940111407
ref: 22
09401-11415
CLIP
€ 2.50
23
0940111413
ref: 23
CLIP
€ 2.50
24-1
0940714403
ref: 24-1
CLAMP(L:125)
€ 2.50
24-2
0940718402
ref: 24-2
CLAMP(L:165)
€ 2.50
25
4425048B00
ref: 25
VALVE,CANISTER PURGE
€ 39.50
26
4488526E00
ref: 26
BRACKET,CANISTER PURGE VALVE
€ 0.00
27
0214205123
ref: 27
02142-0512A
SCREW 5X12
€ 1.50
28
0916905021
ref: 28
09169-05024
WASHER (5X14X1)
€ 2.00
29
4488431E00
ref: 29
HOLDER,CANISTER PURGE
€ 0.00
30
0211205083
ref: 30
02112-0508A
SCREW
€ 2.00
31-1
0935454115600
ref: 31-1
09355-54115-600
HOSE (5.4X11.4X600)
€ 20.00
31-2
0935554115600
ref: 31-2
HOSE(5.4X11.4X600)
€ 20.00
32
0935114152600
ref: 32
PROTECTOR(14.5X15.5X600)
€ 9.00
33-1
0935454115600
ref: 33-1
09355-54115-600
HOSE (5.4X11.4X600)
€ 20.00
33-2
0935554115600
ref: 33-2
HOSE(5.4X11.4X600)
€ 20.00
34
0935114152600
ref: 34
PROTECTOR(14.5X15.5X600)
€ 9.00
35
0940111413
ref: 35
CLIP
€ 2.50
