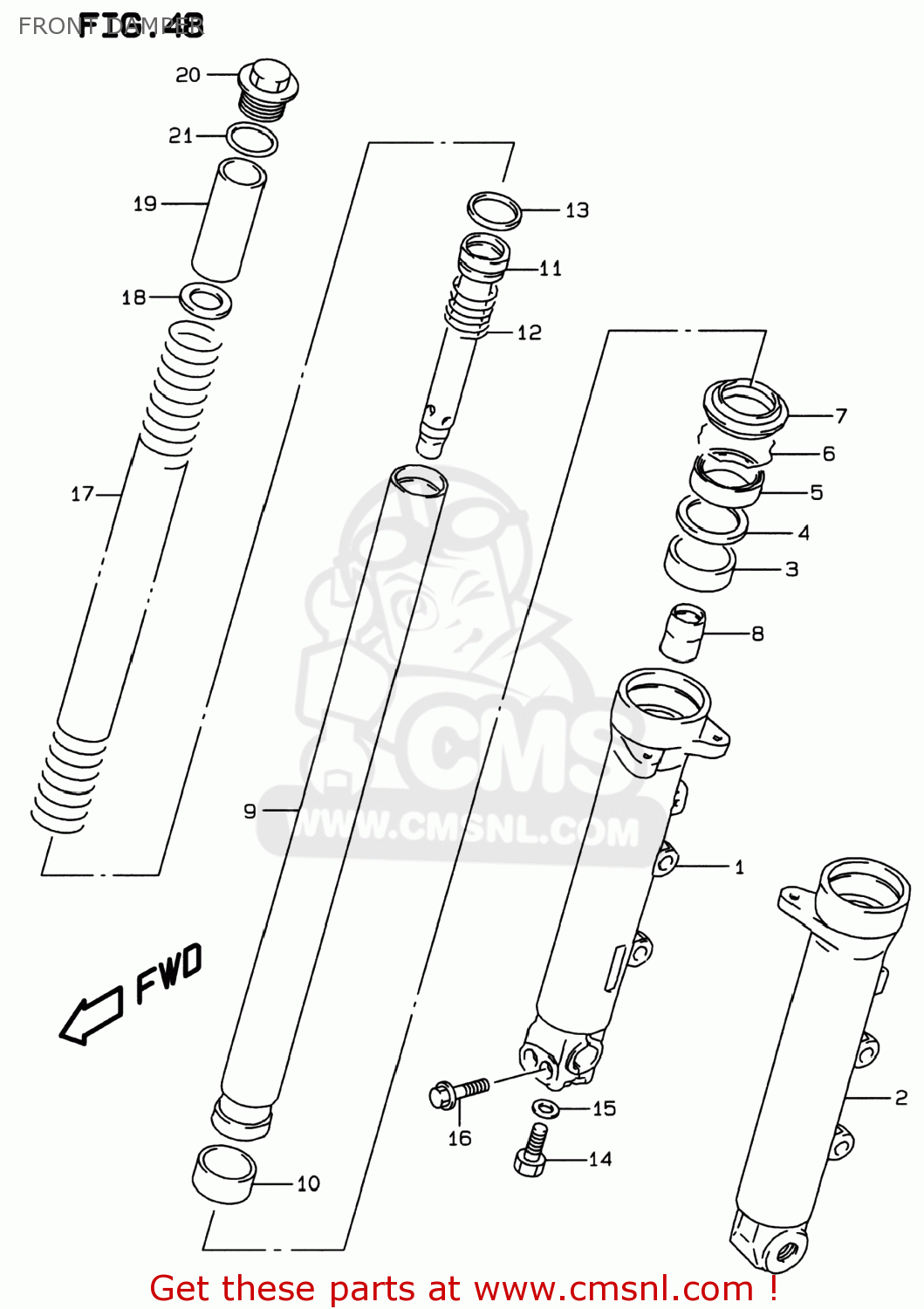

FRONT DAMPER

ref

part #

description

quantity

5110326E11
ref:

DAMPER ASSY,FR FORK,R

€ 818.50

5110426E11
ref:

DAMPER ASSY,FR FORK,L

€ 530.00

1

5113026E00
ref: 1

TUBE,OUTER,R

€ 375.00

2

5114026E00
ref: 2

TUBE,OUTER,L

€ 357.00

3

5116726E10
ref: 3

METAL,SLIDE

€ 20.50

4

5115805A00
ref: 4

WASHER,FORK OIL SEAL

€ 5.00

5-1

5115327C20
ref: 5-1

SEAL,OIL

€ 22.00

5-2

5115314F00
ref: 5-2

SEAL,OIL

€ 25.00

6

5115649440
ref: 6

RING,OIL SEAL STOPPER

€ 5.50

7-1

5117346E00
ref: 7-1

SEAL,DUST

€ 20.00

7-2

5117314F00
ref: 7-2

SEAL,DUST

€ 18.50

8

5119506C00
ref: 8

PIECE,OIL LOCK

€ 13.00

9

5111026E11
ref: 9

TUBE,INNER

€ 352.50

10

5112126E10
ref: 10

PISTON

€ 23.00

11

5114626E10
ref: 11

CYLINDER

€ 100.50

12

5117706C00
ref: 12

SPRING,REBOUND

€ 10.50

13

5119606C00
ref: 13

RING,PISTON

€ 6.50

14

5114716510
ref: 14

BOLT,FORK CYLINDER(10X25)

€ 3.50

15

5114841310
ref: 15

GASKET (NAS)

€ 2.50

16

0155008457
ref: 16

BOLT

€ 4.00

17

5117126E00
ref: 17

SPRING,MAIN

€ 63.00

18

5135610D03
ref: 18

WASHER(22.5X35.9X1.6)

€ 3.00

19

5117610D40
ref: 19

SPACER,SPRING

€ 16.00

20

5135110D00
ref: 20

CAP,FORK

€ 50.00

21

0928032001
ref: 21

O RING(D:3.5,ID:31.7)

€ 2.00

all assemblies
