REAR CALIPER
GSF600S BANDIT 1997 (V) USA (E03)

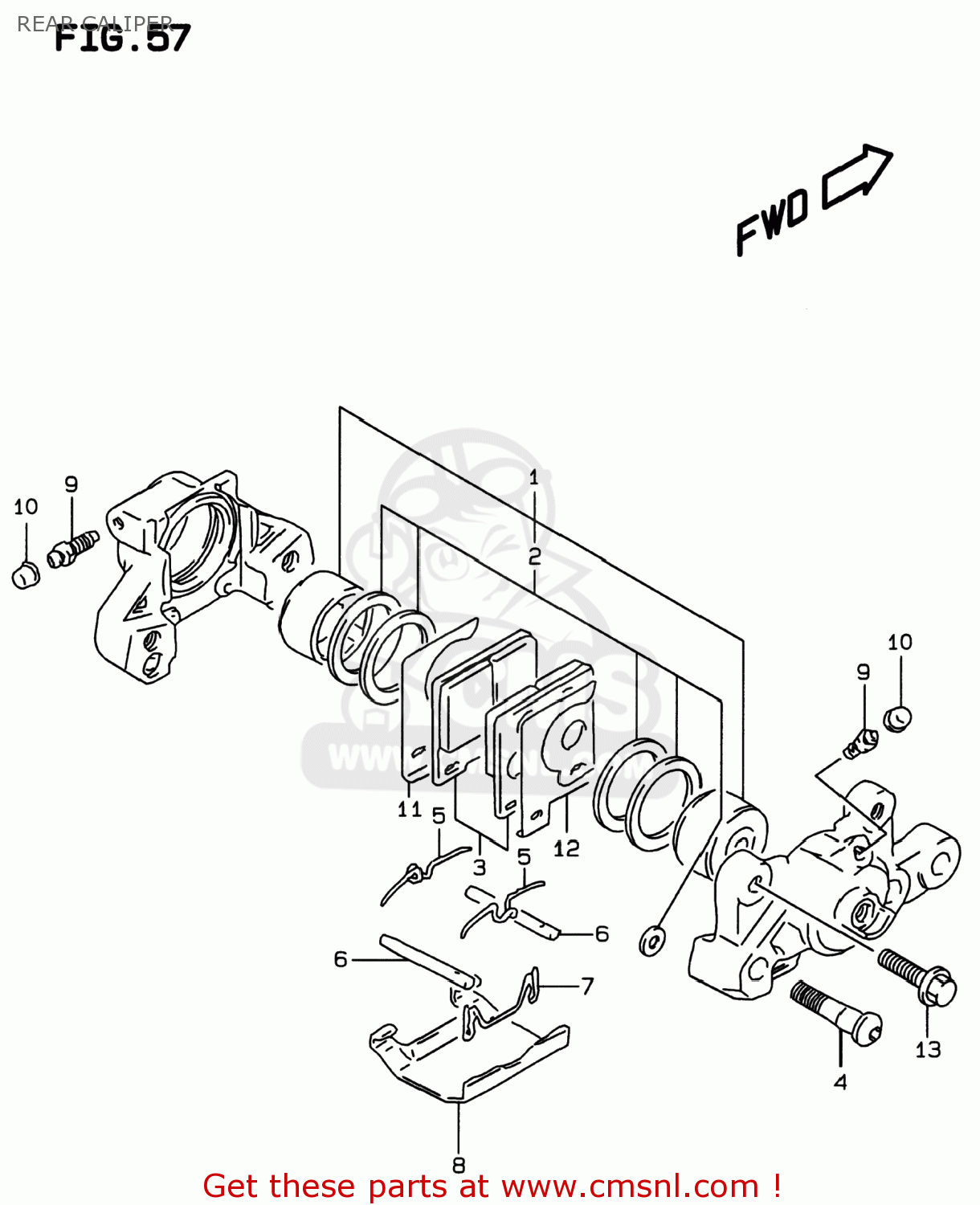

Rear caliper diagram GSF600S BANDIT 1997 (V) USA (E03)
REAR CALIPER GSF600S BANDIT 1997 (V) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
6910005C41
ref:
69100-05CG0-999
CALIPER ASSEMBLY,REAR
€ 770.50
1-1
6910032810
ref: 1-1
69100-05851
PISTON SET
€ 122.50
1-1
6910032810
ref: 1-1
69100-05851
PISTON SET
€ 122.50
1-2
6910005850
ref: 1-2
69100-05851
PISTON SET
€ 122.50
1-2
6910005850
ref: 1-2
69100-05851
PISTON SET
€ 122.50
1-2
6910005850
ref: 1-2
69100-05851
PISTON SET
€ 122.50
2
6910032820
ref: 2
69101-05840
SEAL SET,PISTON
€ 26.00
3
6910005830
ref: 3
69101-05870
PAD SET (NAS)
€ 57.00
4-1
5914516700
ref: 4-1
BOLT,HOUSING
€ 8.00
4-1
5914516700
ref: 4-1
BOLT,HOUSING
€ 8.00
4-2
5914505C50
ref: 4-2
BOLT,HOUSING
€ 9.50
4-2
5914505C50
ref: 4-2
BOLT,HOUSING
€ 9.50
4-2
5914505C50
ref: 4-2
BOLT,HOUSING
€ 9.50
5
5914316700
ref: 5
SPRING
€ 7.50
6
6914146E01
ref: 6
PIN,PAD
€ 9.00
7
6914246E01
ref: 7
CLIP,PAD PIN
€ 14.00
8
5915116701
ref: 8
COVER
€ 13.50
9
5912118410
ref: 9
BLEEDER
€ 8.00
10
5515666310
ref: 10
CAP,BLEEDER PLUG
€ 6.00
11
5937120C00
ref: 11
SHIM,INNER
€ 7.50
12
5938120C00
ref: 12
SHIM,OUTER
€ 7.50
13
0155008303
ref: 13
01550-0830A
BOLT
€ 3.00
