COWLING BODY (MODEL K1)

GSF600S BANDIT 2002 (K2) USA (E03)

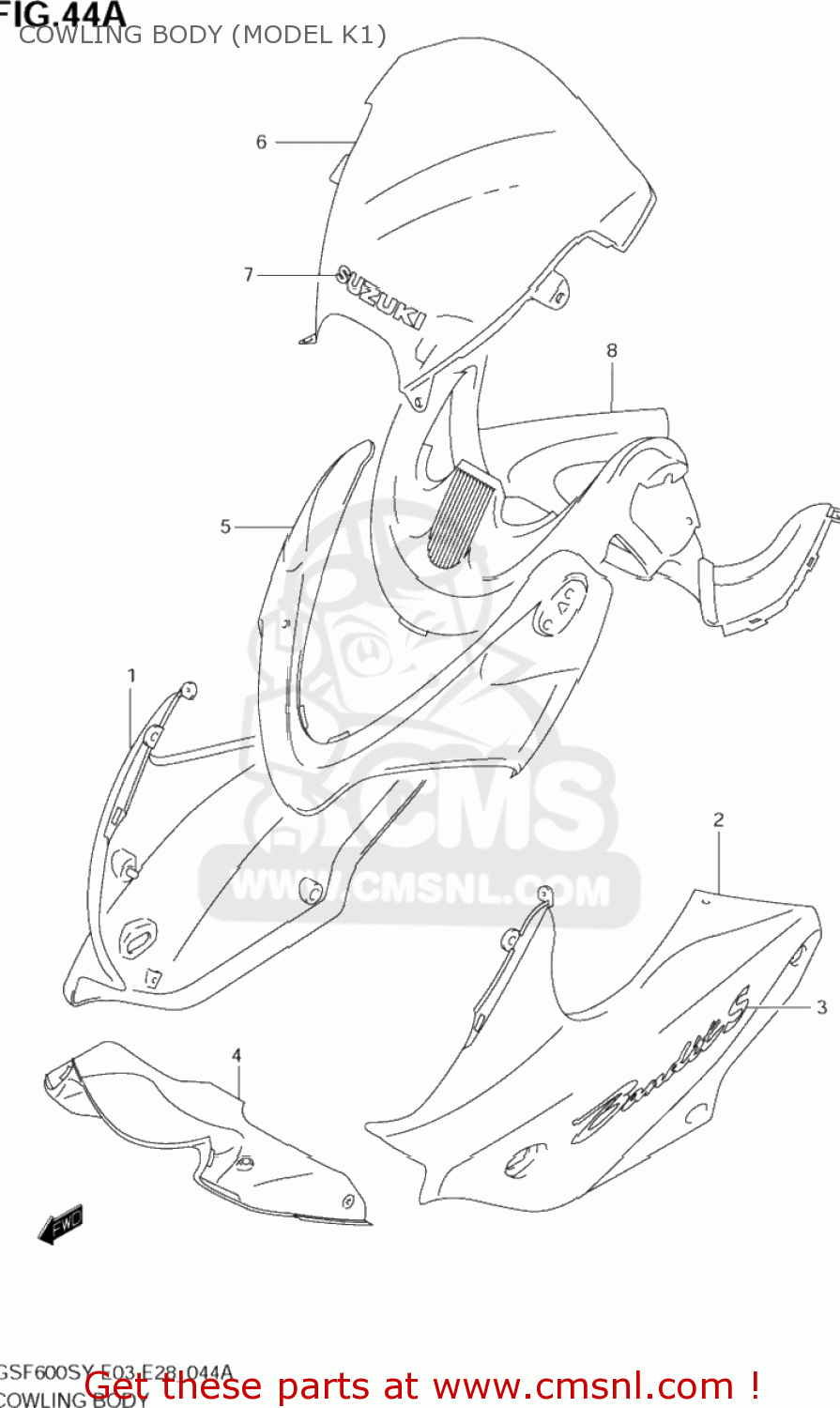

Cowling body (model k1) diagram GSF600S BANDIT 2002 (K2) USA (E03)

COWLING BODY (MODEL K1) GSF600S BANDIT 2002 (K2) USA (E03)

COWLING BODY (MODEL K1) GSF600S BANDIT 2002 (K2) USA (E03)

prices are in EUR

ref

part #

description

quantity

1-1

9440131F1019A
ref: 1-1

COWLING ASSY,SIDE,R

€ 211.00

1-2

9440131F0033J
ref: 1-2

COWLING ASSY,SIDE,R

€ 229.50

1-3

9440131F00YC2
ref: 1-3

COWLING ASSY,SIDE,R

€ 289.50

2-1

9440231F1019A
ref: 2-1

COWLING ASSY,SIDE,L

€ 248.00

2-2

9440231F0033J
ref: 2-2

COWLING ASSY,SIDE,L

€ 214.50

2-3

9440231F00YC2
ref: 2-3

COWLING ASSY,SIDE,L

€ 289.50

3-1

6868131F00FC2
ref: 3-1

EMBLEM,COWLING SIDE

€ 33.50

3-2

6868131F00CV1
ref: 3-2

EMBLEM,COWLING SIDE

€ 25.50

3-3

6868131F00FC3
ref: 3-3

EMBLEM,COWLING SIDE

€ 41.00

4-1

9443031F0019A
ref: 4-1

COWLING,CTR(RED)

€ 78.50

4-2

9443031F0033J
ref: 4-2

COWLING,CTR(BLACK)

€ 69.50

4-3

9443031F00YC2
ref: 4-3

COWLING,CTR(BLUE)

€ 74.00

5

9444031F0035W
ref: 5

COWLING,FR

€ 87.50

6

9460031F0013L
ref: 6
94600-31F01-13L

WINDSCREEN ASSEMBLY (SILVER)

€ 122.50

7

6828002F0013L
ref: 7

EMBLEM,SUZUKI

€ 20.00

8

9464031F01
ref: 8
94640-31F02

PANEL,METER

€ 157.00
