SEAT

GSF600S BANDIT 2002 (K2) USA (E03)

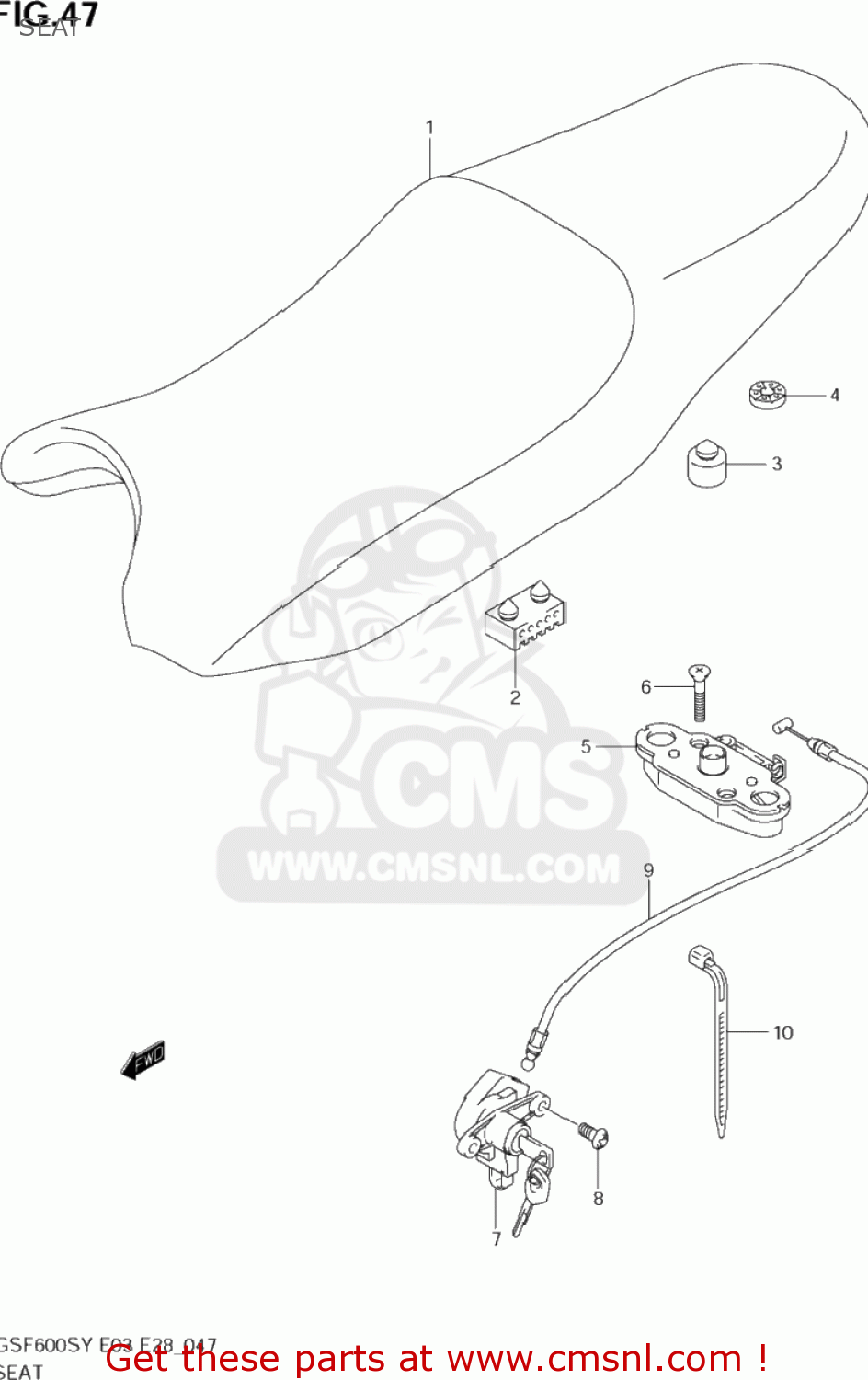

Seat diagram GSF600S BANDIT 2002 (K2) USA (E03)

SEAT GSF600S BANDIT 2002 (K2) USA (E03)

SEAT GSF600S BANDIT 2002 (K2) USA (E03)

prices are in EUR

ref

part #

description

quantity

1-1

4510031F00BH4
ref: 1-1
45100-31F02-BH4

SEAT ASSEMBLY

€ 313.00

1-2

4510031F01BH4
ref: 1-2
45100-31F02-BH4

SEAT ASSEMBLY

€ 313.00

1-3

4510031F02BH4
ref: 1-3

SEAT ASSY

€ 313.00

2

4514931300
ref: 2

CUSHION,SEAT(40X20X15)

€ 2.00

3

0932110011
ref: 3

CUSHION

€ 3.00

4

4521331300
ref: 4

CUSHION

€ 1.50

5

4522020A01
ref: 5
45220-47H00

BRACKET,SEAT SUPPORT,RIGHT

€ 79.50

6

0212206303
ref: 6
02122-0630B

SCREW

€ 2.00

7-1

9570010833
ref: 7-1
95700-10835

LOCK SET,SEAT & HELMET

€ 99.50

7-2

9570010834
ref: 7-2
95700-10835

LOCK SET,SEAT & HELMET

€ 99.50

8

0913906092
ref: 8

SCREW(6X14)

€ 3.50

9

4528020A00
ref: 9

CABLE,TANK LOCK

€ 16.00

10

0940714403
ref: 10

CLAMP(L:125)

€ 2.50
