HANDLEBAR
GSF600S BANDIT 2002 (K2) USA (E03)

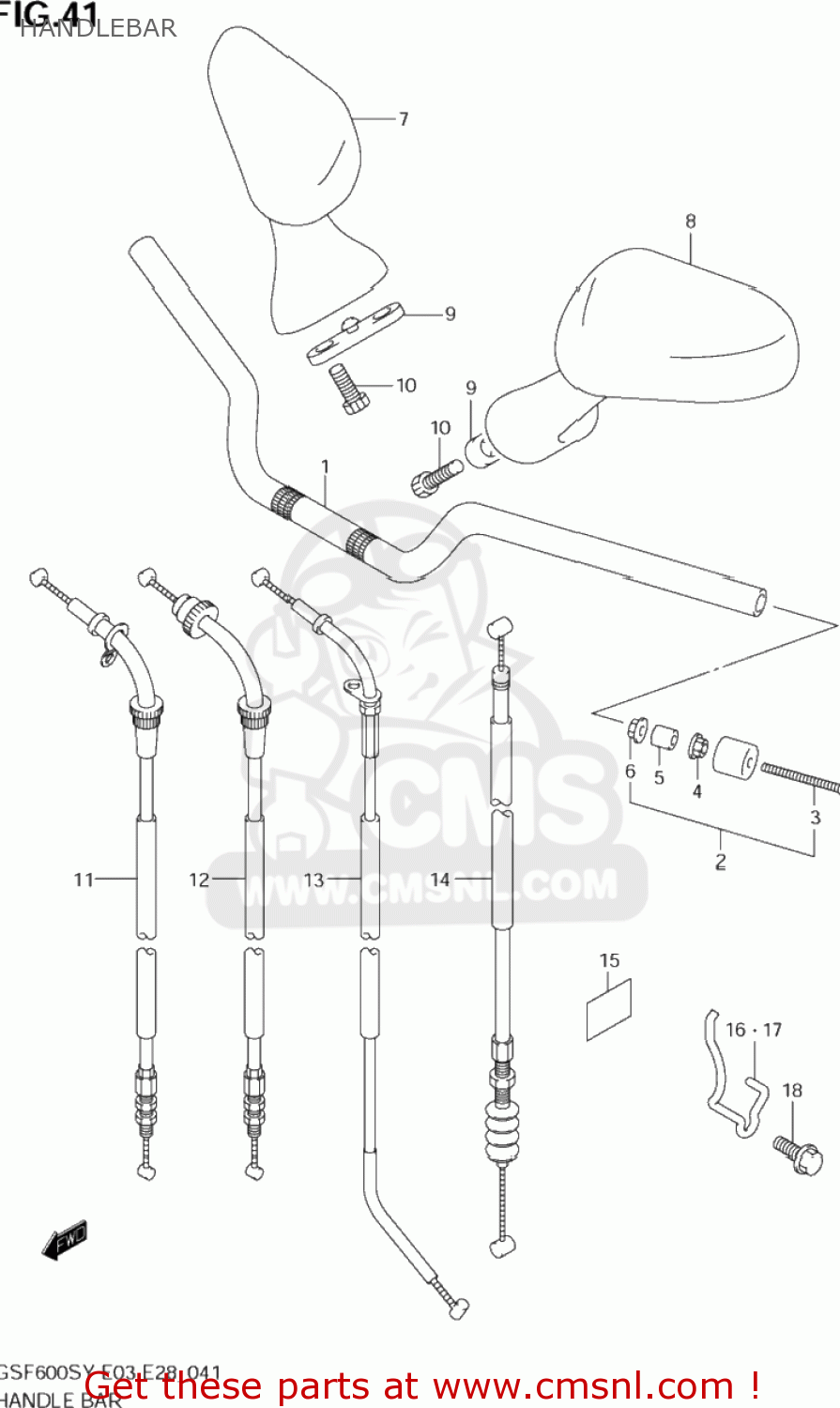

Handlebar diagram GSF600S BANDIT 2002 (K2) USA (E03)
HANDLEBAR GSF600S BANDIT 2002 (K2) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
5611131F00
ref: 1-1
56111-31F01
HANDLEBAR
€ 107.50
1-2
5611131F01
ref: 1-2
HANDLEBAR
€ 107.50
2
5620031820
ref: 2
56200-31821
BALANCER SET,HANDLEBAR
€ 46.50
3
0212206803
ref: 3
02122-0680B
SCREW
€ 2.50
4
0831610083
ref: 4
08316-1008B
NUT
€ 3.00
5
5627244500
ref: 5
EXPANDER,HANDLE BALANCER
€ 3.00
6
0915906024
ref: 6
NUT
€ 2.00
7
5650031F00
ref: 7
MIRROR ASSY,RR VIEW,R
€ 391.00
8
5660031F00
ref: 8
MIRROR ASSY,RR VIEW,L
€ 374.50
9
9457631F00
ref: 9
CUSHION,RR VIEW MIRRORR
€ 6.50
10
0713006353
ref: 10
07130-0635B
BOLT
€ 3.50
11
5830031F00
ref: 11
CABLE ASSY,THROTTLE NO.1
€ 37.00
12
5830031F10
ref: 12
CABLE ASSY,THROTTLE NO.2
€ 37.50
13
5841031F00
ref: 13
CABLE,STARTER
€ 35.00
14
5820031F00
ref: 14
CABLE ASSY,CLUTCH
€ 32.00
15
4726148B00
ref: 15
PROTECTOR,FRAME COVER FR
€ 5.50
16
3661931F10
ref: 16
GUIDE,WIRING HARNESS
€ 6.50
17
5862231F00
ref: 17
GUIDE,CABLE
€ 9.50
18
0155006163
ref: 18
01550-0616A
BOLT
€ 2.50
