AIR CLEANER
GSF600SU 1999 (X) GERMANY (E22)

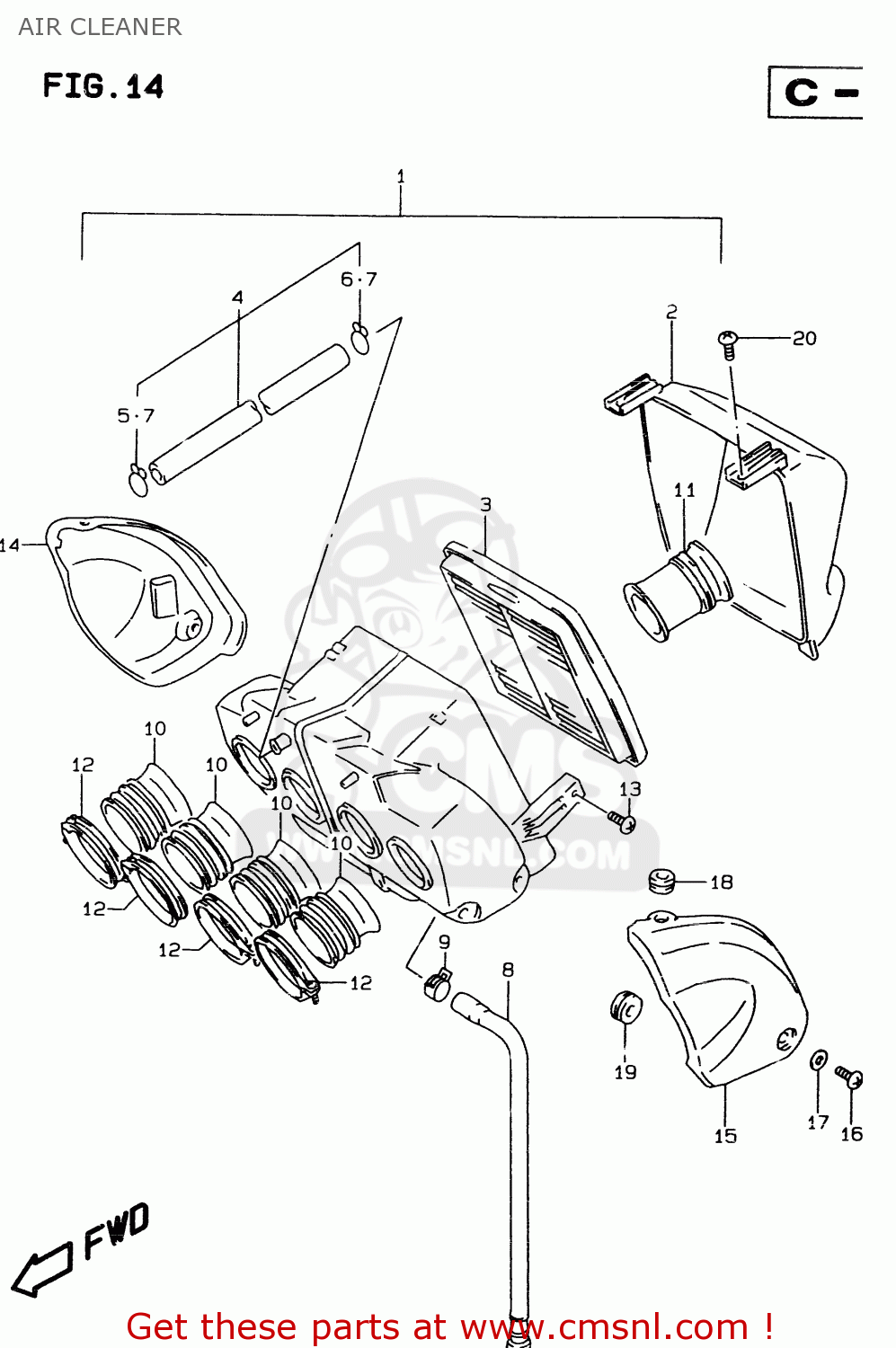

Air cleaner diagram GSF600SU 1999 (X) GERMANY (E22)
AIR CLEANER GSF600SU 1999 (X) GERMANY (E22)
×
prices are in EUR
ref
part #
description
quantity
1-1
1370026E00
ref: 1-1
CLEANER ASSY,AIR
€ 296.00
1-2
1370026E10
ref: 1-2
E18
CLEANER ASSEMBLY,AIR
€ 0.00
2
1374017E02
ref: 2
CAP,AIR CLEANER
€ 38.50
3
1378017E00
ref: 3
FILTER,AIR
€ 34.50
4-1
1385027E00
ref: 4-1
TUBE,BREATHER
€ 18.00
4-2
1385026E10
ref: 4-2
E18
TUBE,BREATHER
€ 0.00
5
0940114301
ref: 5
CLIP
€ 2.00
6
0940116401
ref: 6
CLIP
€ 3.00
7
0940114301
ref: 7
E18
CLIP
€ 2.00
8
1387021458
ref: 8
TUBE,DRAIN
€ 23.50
9-1
0940113413
ref: 9-1
MODEL S/T/V
CLIP
€ 2.50
9-2
0940113417
ref: 9-2
MODEL W
CLIP
€ 2.50
10
1388126E00
ref: 10
TUBE,OUTLET
€ 28.50
11
1389117E00
ref: 11
TUBE,INLET
€ 22.50
12
0940256208
ref: 12
CLAMP
€ 3.50
13
0214205127
ref: 13
SCREW
€ 1.50
14-1
1391026E00
ref: 14-1
MODEL S/T/V
COVER,AIR CLEANER,RIGHT
€ 80.00
14-2
1391027E00
ref: 14-2
MODEL W
COVER COMP,AIR CLEANER,RIGHT
€ 69.00
15-1
1392026E00
ref: 15-1
MODEL S/T/V
COVER,AIR CLEANER,LEFT
€ 73.00
15-2
1392027E00
ref: 15-2
MODEL W
COVER COMP,AIR CLEANER,LEFT
€ 72.50
16
0913905025
ref: 16
SCREW(5X14)
€ 2.00
17
0916905013
ref: 17
WASHER
€ 8.00
18-1
0932005006
ref: 18-1
MODEL S/T/V
CUSHION
€ 4.00
18-2
0932006504
ref: 18-2
MODEL W
CUSHION
€ 4.00
19
0932008018
ref: 19
CUSHION
€ 4.00
20
0214206123
ref: 20
SCREW 6X12
€ 2.00
