CAM SHAFT - VALVE
GSF600SU 1999 (X) GERMANY (E22)

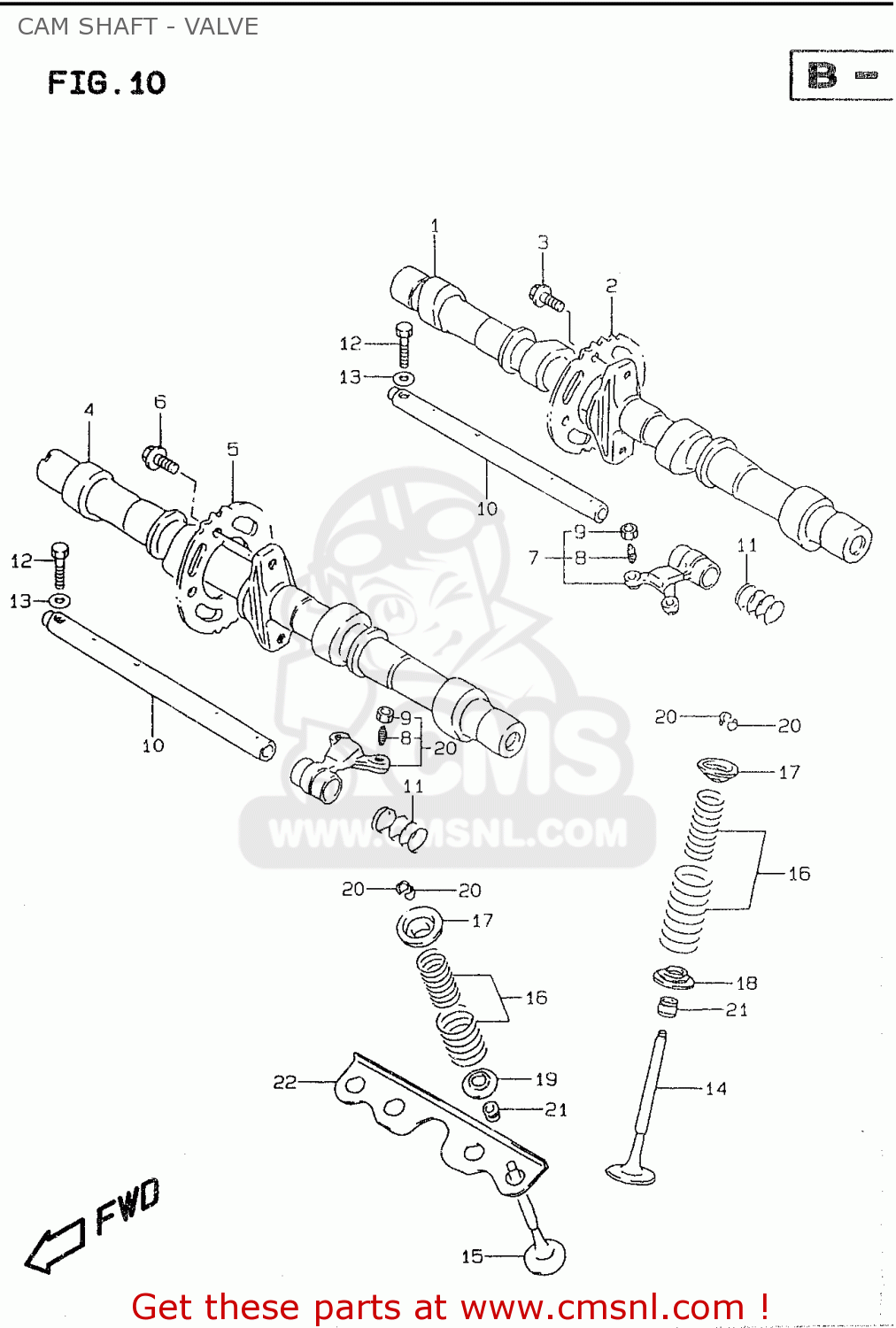

Cam shaft - valve diagram GSF600SU 1999 (X) GERMANY (E22)
CAM SHAFT - VALVE GSF600SU 1999 (X) GERMANY (E22)
×
prices are in EUR
ref
part #
description
quantity
1-1
1271126E00
ref: 1-1
CAMSHAFT,INTAKE
€ 447.00
1-2
1271126E10
ref: 1-2
E18
CAMSHAFT,INTAKE
€ 239.00
2
1274126E00
ref: 2
SPROCKET,CAMSHAFT
€ 52.50
3
0910307001
ref: 3
BOLT(7X11)
€ 2.00
4-1
1272126E00
ref: 4-1
CAMSHAFT,EXHAUST
€ 449.00
4-2
1272126E10
ref: 4-2
E18
CAMSHAFT,EXHAUST
€ 239.00
5
1274126E00
ref: 5
SPROCKET,CAMSHAFT
€ 52.50
6
0910307001
ref: 6
BOLT(7X11)
€ 2.00
7
1284019C00
ref: 7
ARM,VALVE ROCKER
€ 74.50
8
1284249201
ref: 8
SCREW,TAPPET ADJUSTING
€ 5.50
9
1284327A00
ref: 9
NUT,TAPPET ADJUSTING
€ 3.00
10
1286127A00
ref: 10
SHAFT,VALVE ROCKER ARM
€ 31.00
11
0944013014
ref: 11
SPRING
€ 2.50
12
0180006303
ref: 12
BOLT
€ 0.00
13
0832201063
ref: 13
WASHER
€ 2.00
14
1291119C00
ref: 14
VALVE,INTAKE
€ 37.00
15
1291219C00
ref: 15
VALVE,EXHAUST
€ 78.00
16
1292027A01
ref: 16
SPRING SET,VALVE
€ 15.50
17
1293127A01
ref: 17
RETAINER,VALVE SPRING
€ 5.50
18
1293381400
ref: 18
SEAT,VALVE SPRING
€ 4.00
19
1293427A01
ref: 19
SEAT,VALVE SPRING EXH INNER
€ 7.00
20
1293227A00
ref: 20
COTTER VALVE
€ 2.50
21
0928905011
ref: 21
SEAL,OIL(5X10X9.7)
€ 6.00
22
1113719C01
ref: 22
PLATE,VALVE SEAT
€ 7.00
