WIRING HARNESS
GSF600SU 1999 (X) GERMANY (E22)

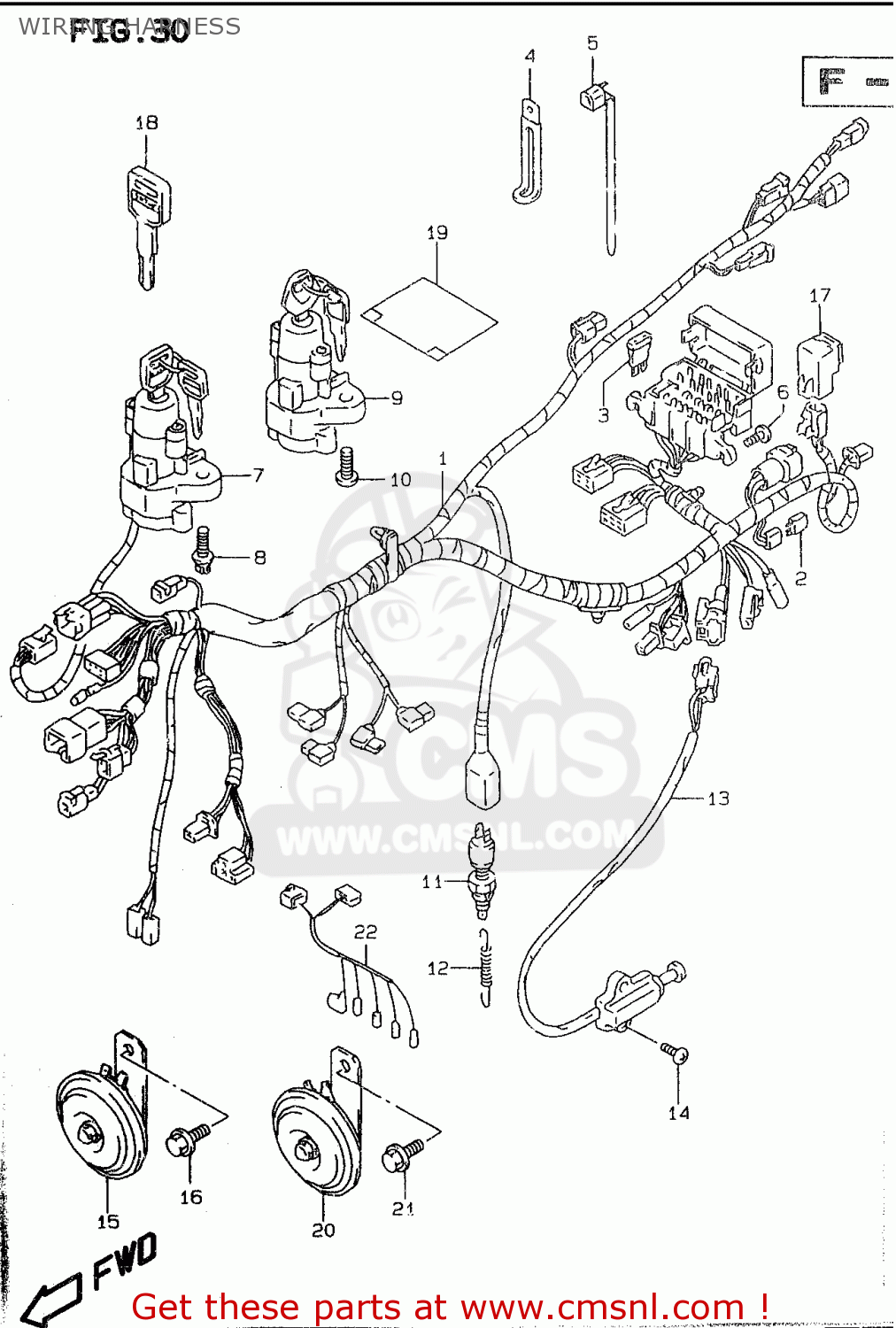

Wiring harness diagram GSF600SU 1999 (X) GERMANY (E22)
WIRING HARNESS GSF600SU 1999 (X) GERMANY (E22)
×
prices are in EUR
ref
part #
description
quantity
1-1
3661027E00
ref: 1-1
GSF600S/T/US/UT <-36
HARNESS, WIRING
€ 444.00
1-2
3661026E30
ref: 1-2
GSF600V/W/UV/UW
HARNESS,WIRING
€ 471.50
1-3
3661026E20
ref: 1-3
GSF600ST/SUT
HARNESS,WIRING
€ 492.50
1-4
3661026E40
ref: 1-4
GSF600SV/SW/SUV/SUW
HARNESS,WIRING
€ 495.50
2
3661138A00
ref: 2
DIODE(STANLEY DE8804)
€ 13.00
3-1
0948110101
ref: 3-1
FUSE(10A)
€ 2.50
3-2
0948115101
ref: 3-2
FUSE(15A)
€ 1.50
4-1
0940406431
ref: 4-1
CLAMP(L:65)
€ 2.50
4-2
0940406429
ref: 4-2
CLAMP(L:45)
€ 2.50
4-3
0940408419
ref: 4-3
CLAMP(L:80)
€ 2.00
5-1
0940714403
ref: 5-1
CLAMP(L:125)
€ 2.50
5-2
0940711401
ref: 5-2
CLAMP(L:95)
€ 2.50
5-3
0940718403
ref: 5-3
CLAMP L:165
€ 2.50
6
0214206123
ref: 6
SCREW 6X12
€ 2.00
7-1
3710046E21
ref: 7-1
MODEL S/T,<-37100-46
LOCK ASSY,STEERING
€ 110.00
7-2
3710018E11
ref: 7-2
MODEL S/T E24
SWITCH ASSY,IGNITION
€ 136.50
8
0911908082
ref: 8
BOLT M8X20
€ 3.00
9-1
3710033E01
ref: 9-1
MODEL V/W
LOCK ASSY,STEERING
€ 170.00
9-2
3710033E11
ref: 9-2
MODEL V/W24
LOCK ASSY,STEERING
€ 160.00
10
0913908016
ref: 10
MODEL V/W
BOLT(8X20)
€ 3.50
11
3774024A00
ref: 11
SWITCH ASSY,STOP LAMP
€ 20.50
12
0944306054
ref: 12
SPRING
€ 2.50
13
3784044X50
ref: 13
SWITCH ASSY,SIDE STAND
€ 75.50
14
0214206203
ref: 14
SCREW
€ 2.00
15
3850020E10
ref: 15
HORN ASSY
€ 75.50
16
0155008123
ref: 16
BOLT
€ 3.50
17
3874026E00
ref: 17
RELAY ASSY
€ 32.50
18
3714646E00
ref: 18
OPT
KEY,BLANK
€ 13.00
19
3661815D20
ref: 19
GSF600ST/SV/SW/SUT/S
COVER,WIRING HARNESS
€ 12.00
20
3850221E02
ref: 20
GSF600ST/SV/SW/SUT/S
HORN ASSY
€ 63.50
21
0155008123
ref: 21
BOLT
€ 3.50
22
3685621E00
ref: 22
E2, OPT
WIRE,CARB HEATER LEAD
€ 79.50
