CARBURETOR FITTINGS (MODEL S)
GSF600U 1996 (T) GERMANY (E22)

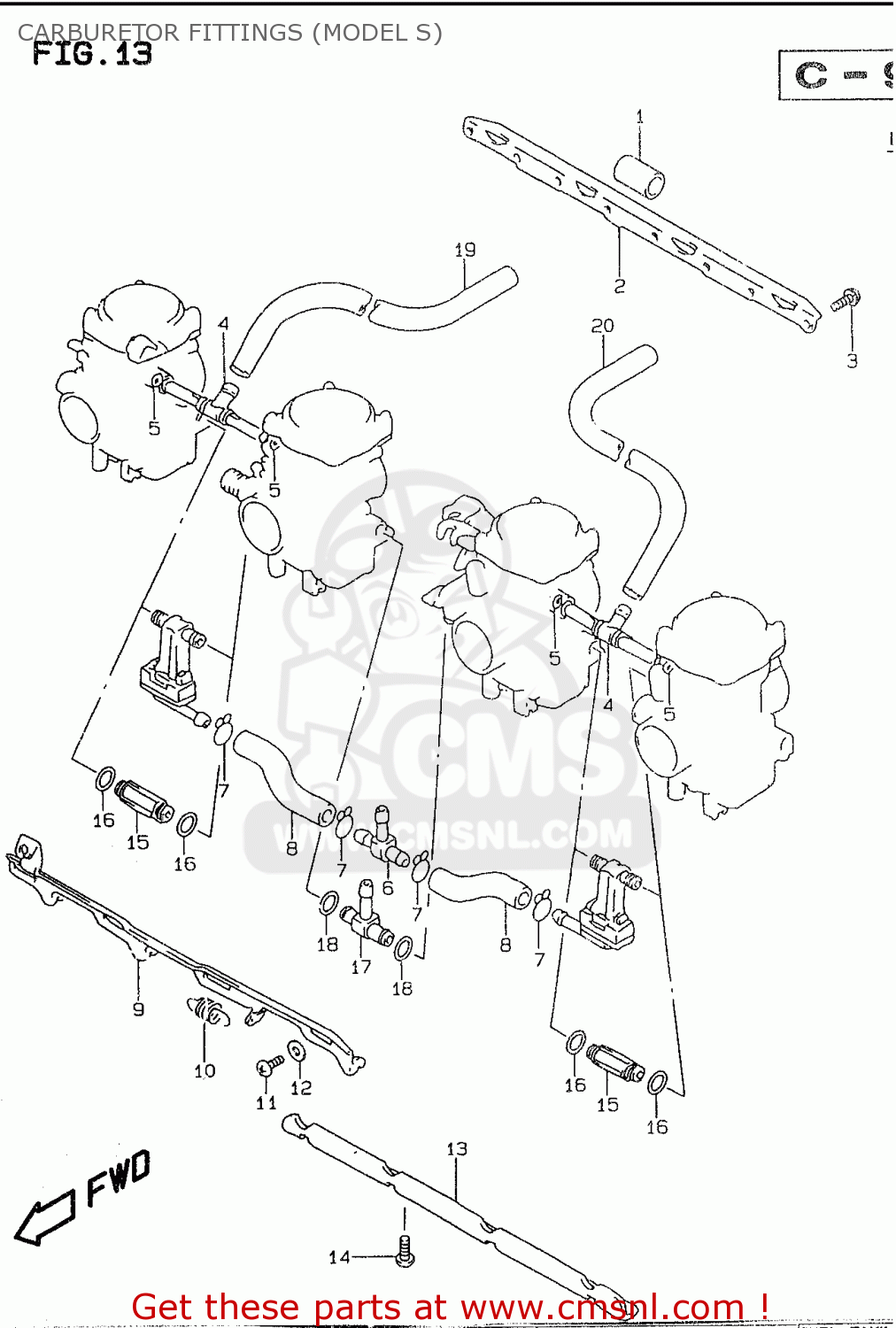

Carburetor fittings (model s) diagram GSF600U 1996 (T) GERMANY (E22)
CARBURETOR FITTINGS (MODEL S) GSF600U 1996 (T) GERMANY (E22)
×
prices are in EUR
ref
part #
description
quantity
1
1368426E00
ref: 1
PIPE
€ 3.00
2
1362826E10
ref: 2
STAY,PLATE
€ 29.00
3
1360226E50
ref: 3
SCREW
€ 3.50
4
1368526E20
ref: 4
JOINT
€ 14.00
5
1367326E00
ref: 5
O RING
€ 4.50
6
1368526E30
ref: 6
E18,E22
JOINT
€ 18.50
7
1367126E10
ref: 7
E18,E22
CLAMP
€ 3.50
8
1368326E00
ref: 8
E18,E22
HOSE
€ 25.00
9
1341326E00
ref: 9
LEVER,STARTER
€ 59.50
10
1341726E20
ref: 10
SPRING
€ 9.50
11
1360226E60
ref: 11
SCREW
€ 3.50
12
1341826E10
ref: 12
WASHER
€ 3.50
13
1362826E00
ref: 13
STAY,PLATE
€ 29.00
14
1360226E40
ref: 14
SCREW
€ 3.50
15
1368526E10
ref: 15
EXCEPT E18,E22
JOINT
€ 12.50
16
1367326E10
ref: 16
EXCEPT E18,E22
O RING
€ 4.50
17
1368526E00
ref: 17
EXCEPT E18,E22
JOINT
€ 25.00
18
1367326E00
ref: 18
EXCEPT E18,E22
O RING
€ 4.50
19
0935270113600
ref: 19
L:600->450
HOSE(7X11X600)
€ 17.50
20
0935270113600
ref: 20
L:600->480
HOSE(7X11X600)
€ 17.50
