MUFFLER
GSF600U 1996 (T) GERMANY (E22)

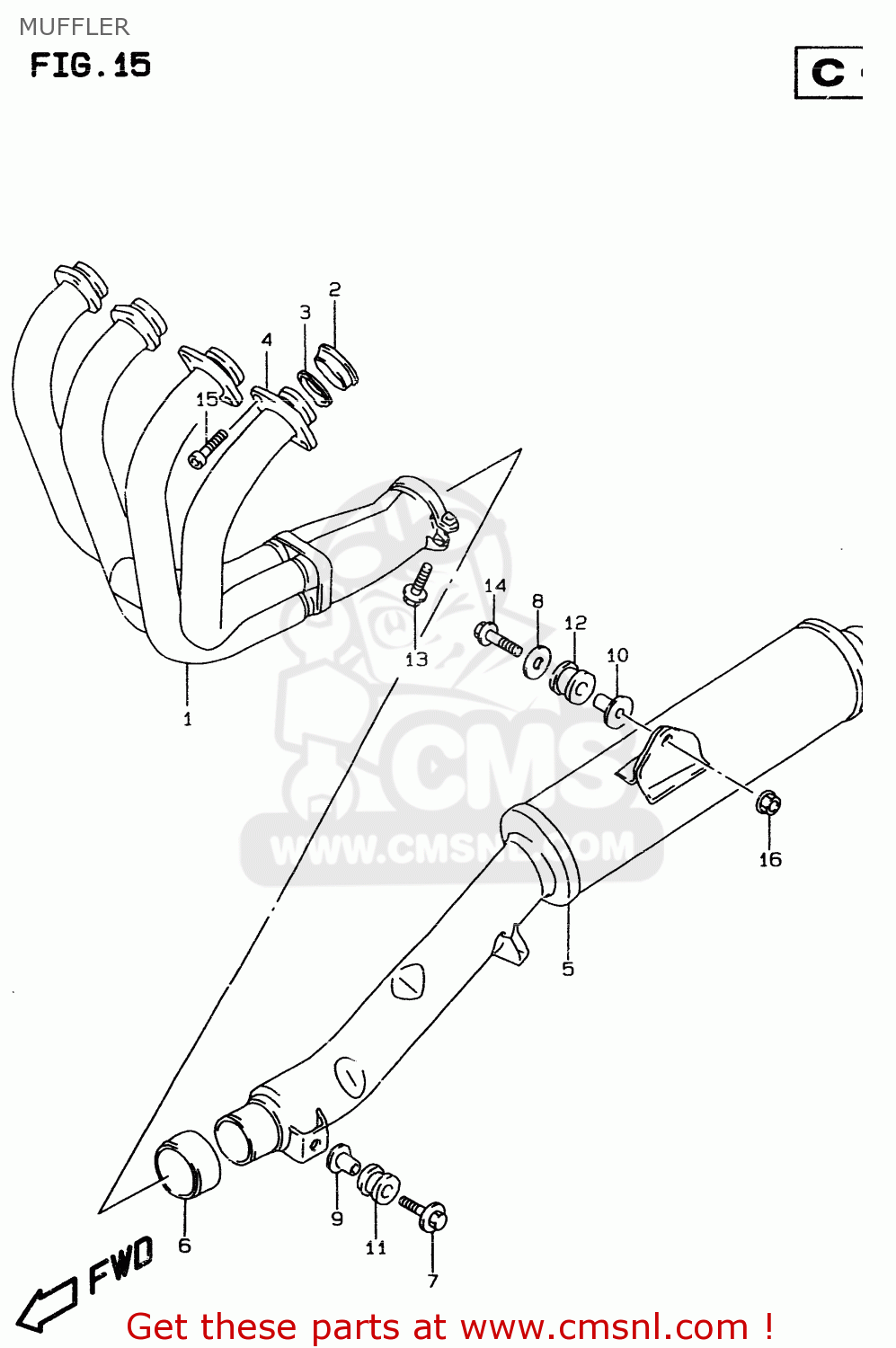

Muffler diagram GSF600U 1996 (T) GERMANY (E22)
MUFFLER GSF600U 1996 (T) GERMANY (E22)
×
prices are in EUR
ref
part #
description
quantity
1
1410026E00
ref: 1
EXHAUST
€ 1,157.00
2
1415527A00
ref: 2
~F.NO.GN77A-101171 ~
PLATE,EXHAUST PIPE
€ 3.50
3
1418118C00
ref: 3
GASKET,EXHAUST (NAS)
€ 6.50
4
1418226D00
ref: 4
~F.NO.GN77A-101171 ~
CLAMP,EXHAUST PIPE
€ 21.00
5
1431026E00H01
ref: 5
BODY,MUFFLER
€ 781.50
6
1477127E00
ref: 6
CONNECTOR,MUFFLER
€ 29.00
7
0911808068
ref: 7
BOLT 8X40
€ 7.50
8-1
0916008106
ref: 8-1
MODEL S/T/V
WASHER (8.1X33X1.6)
€ 3.00
8-2
0916008140
ref: 8-2
MODEL W
WASHER (8.5X33X1.6)
€ 3.00
9
0918008152
ref: 9
SPACER(8.6X12X24.2)
€ 6.00
10
0918008156
ref: 10
SPACER(8.6X12X27.1)
€ 6.50
11
0932012048
ref: 11
CUSHION
€ 5.00
12
0932012049
ref: 12
CUSHION
€ 9.00
13
0155008403
ref: 13
BOLT
€ 3.50
14
0155008457
ref: 14
BOLT
€ 4.00
15
0713008257
ref: 15
BOLT
€ 3.50
16-1
0836125083
ref: 16-1
GREEN
NUT
€ 2.50
16-2
0836125088
ref: 16-2
WHITE
NUT
€ 2.50
