CYLINDER
GSF600U 1996 (T) GERMANY (E22)

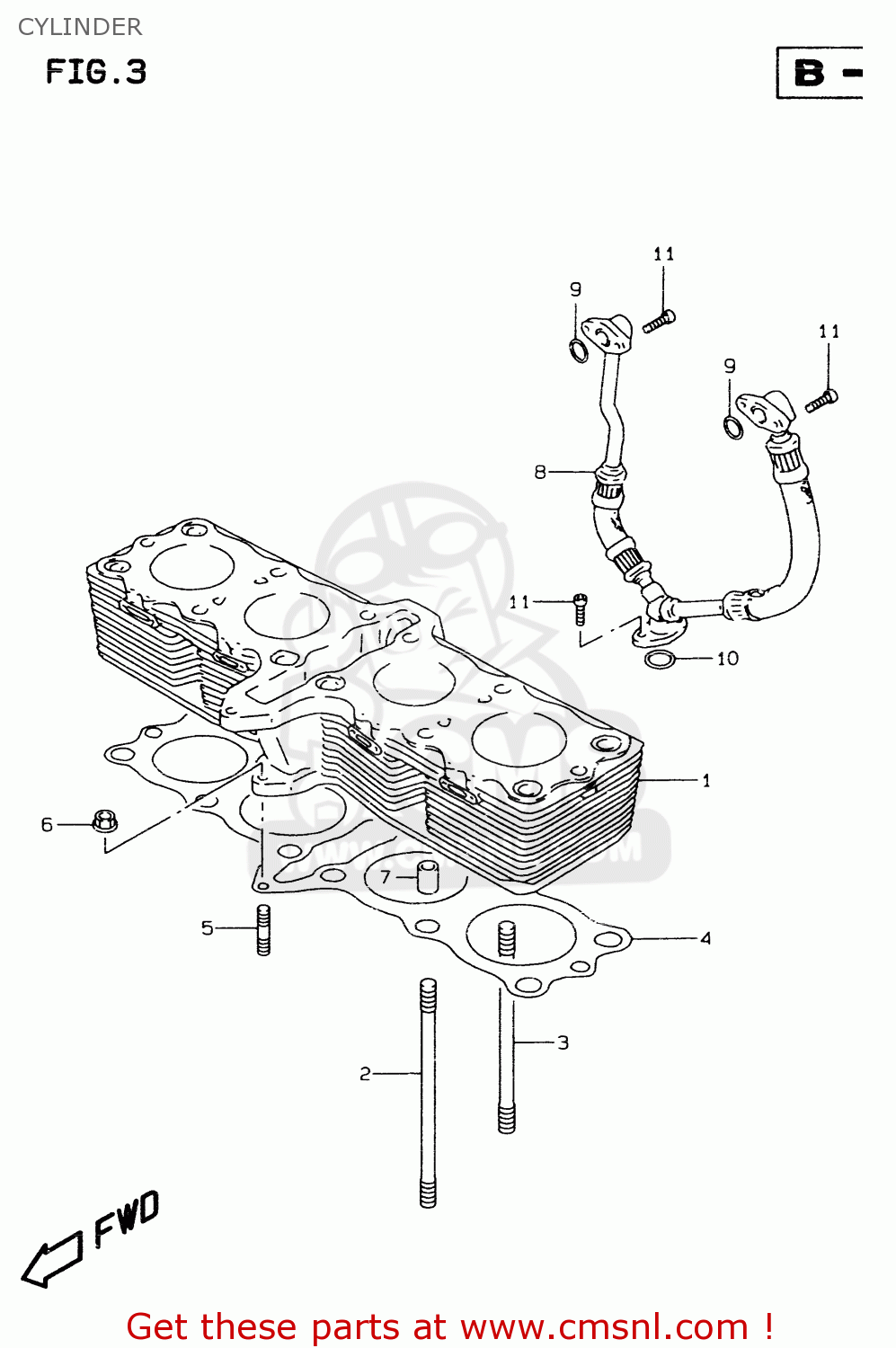

Cylinder diagram GSF600U 1996 (T) GERMANY (E22)
CYLINDER GSF600U 1996 (T) GERMANY (E22)
×
prices are in EUR
ref
part #
description
quantity
1-1
1121026E00
ref: 1-1
CYLINDER COMP
€ 791.00
1-2
1121026E10
ref: 1-2
E18
CYLINDER COMP
€ 777.50
2
0910810109
ref: 2
STUD BOLT (L:150)
€ 11.00
3
0910810073
ref: 3
BOLT,STUD
€ 9.50
4-1
1124127A03
ref: 4-1
~E.NO.N712-122930 ~E
GASKET,CYLINDER (NAS)
€ 20.00
4-2
1124127A04
ref: 4-2
E.NO.N712-122931~ E.
GASKET,CYLINDER (NAS)
€ 20.00
5
0142106203
ref: 5
STUD,M6X1X32
€ 2.50
6
0831610063
ref: 6
NUT
€ 2.50
7
0920613017
ref: 7
PIN(13X10.4X20)
€ 9.00
8
1132827A04
ref: 8
HOSE,OIL HEAD COOLER
€ 241.00
9
0928014011
ref: 9
O RING(D:2.5,ID:13.8)
€ 3.50
10
0928015007
ref: 10
O RING(D:2.4,ID:15.8)
€ 2.00
11
0713006163
ref: 11
BOLT,OIL FILLE
€ 3.00
