FUEL TANK (GSX1100EFE E2)

GSX1100E 1985 (F) (E01 E02 E04 E21 E22 E24)

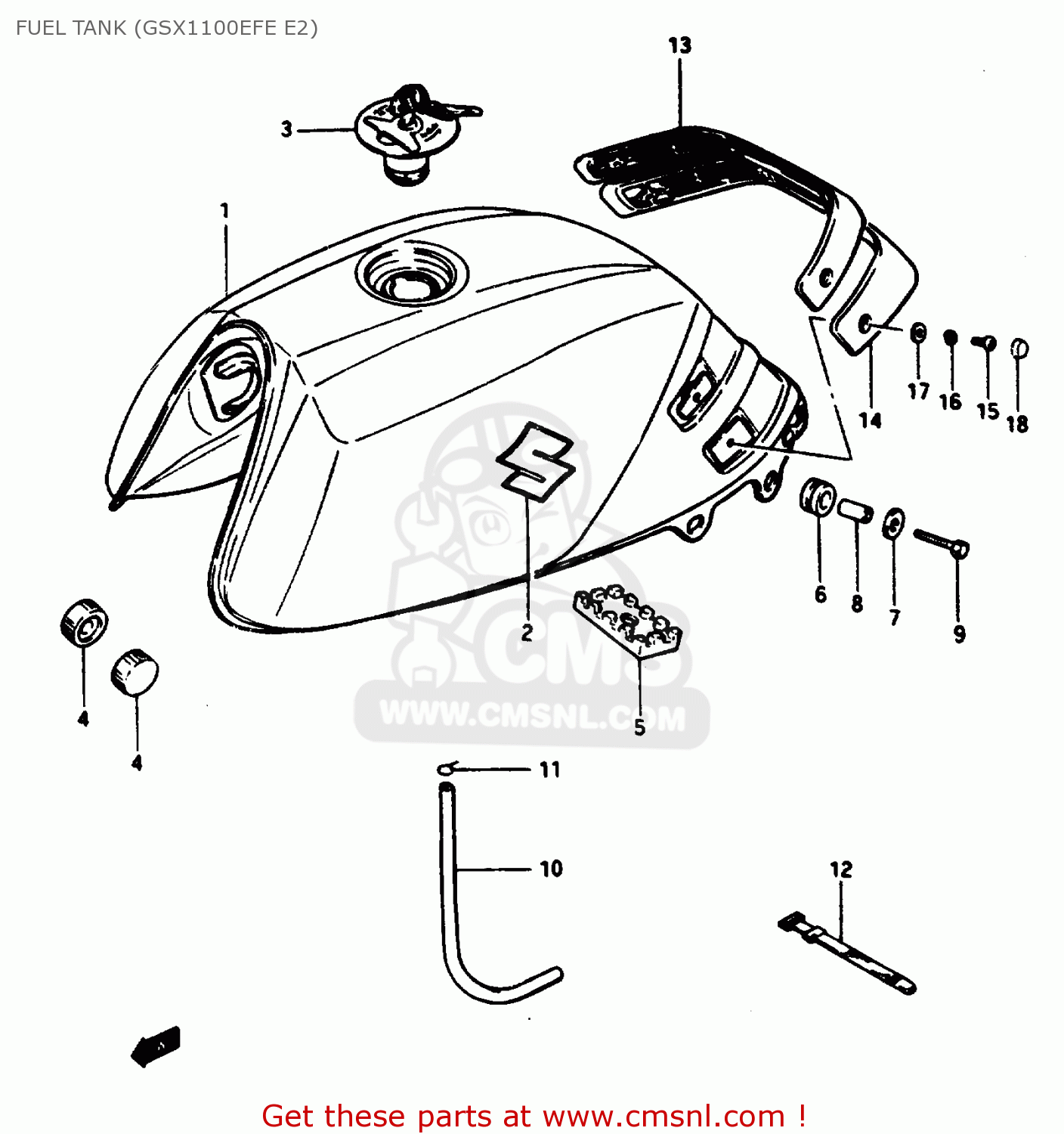

Fuel tank (gsx1100efe e2) diagram GSX1100E 1985 (F) (E01 E02 E04 E21 E22 E24)

FUEL TANK (GSX1100EFE E2) GSX1100E 1985 (F) (E01 E02 E04 E21 E22 E24)

FUEL TANK (GSX1100EFE E2) GSX1100E 1985 (F) (E01 E02 E04 E21 E22 E24)

prices are in EUR

ref

part #

description

quantity

1

4410000A5014L
ref: 1

TANK ASSY, FUEL (WHITE)

€ 441.00

2

681664341069L
ref: 2

EMBLEM, "S" MARK

€ 4.50

3

4420043410KEY
ref: 3

CAP ASSY,FUEL TANK

€ 125.50

4

0932910016
ref: 4

CUSHION

€ 3.00

5

4454134500
ref: 5

CUSHION,FUEL TANK CTR

€ 13.00

6

0932009017
ref: 6

CUSHION

€ 3.00

7

0916006030
ref: 7

WASHER (6.5X29X1.6)

€ 2.50

8

0918006107
ref: 8

SPACER (6.4X9X20)

€ 3.00

9

0110706307
ref: 9

BOLT 6X30

€ 2.50

10

0934305165
ref: 10

HOSE,FUEL

€ 13.00

11

0940108402
ref: 11

CLIP

€ 1.50

12

0940718401
ref: 12

CLAMP(L:187)

€ 2.00

13

4425100A0057S
ref: 13

KNEE GRIP,FUEL TANK,UPPER

€ 39.00

14

4425200A0057S
ref: 14

GRIP,FUEL TANK KNEE LWR

€ 62.50

15

0211205088
ref: 15

SCREW

€ 2.00

16

0832121057
ref: 16

LOCK WASHER

€ 2.00

17

0832221057
ref: 17

WASHER

€ 2.50

18

4425300A0057S
ref: 18

CAP,KNEE GRIP

€ 4.00
