LEFT HANDLE SWITCH (GSX1100EE/EF/EG)

GSX1100E 1985 (F) (E01 E02 E04 E21 E22 E24)

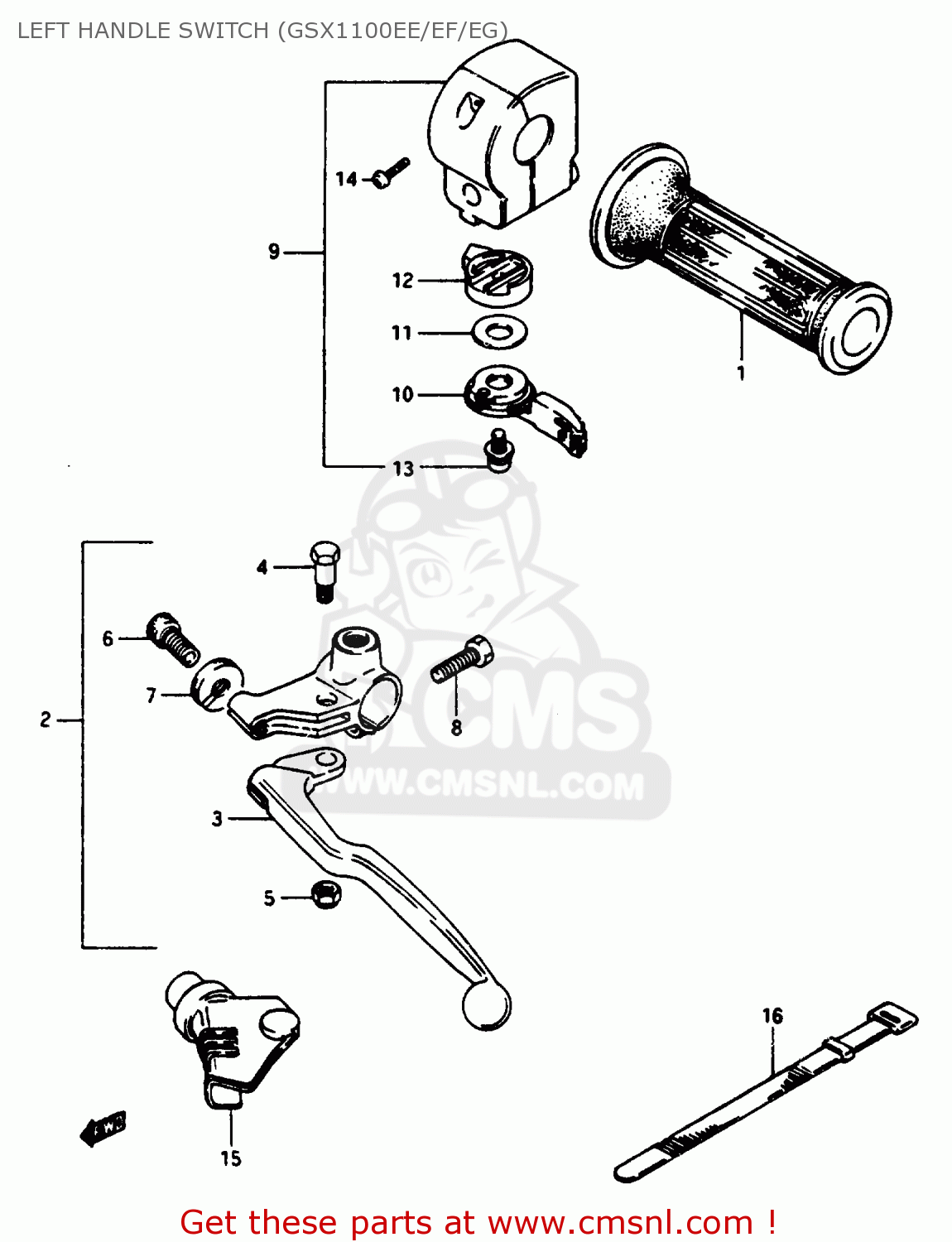

Left handle switch (gsx1100ee/ef/eg) diagram GSX1100E 1985 (F) (E01 E02 E04 E21 E22 E24)

LEFT HANDLE SWITCH (GSX1100EE/EF/EG) GSX1100E 1985 (F) (E01 E02 E04 E21 E22 E24)

LEFT HANDLE SWITCH (GSX1100EE/EF/EG) GSX1100E 1985 (F) (E01 E02 E04 E21 E22 E24)

prices are in EUR

ref

part #

description

quantity

1

5721149500
ref: 1

GRIP,L

€ 9.00

2

5750033420
ref: 2

LEVER ASSY,CLU

€ 50.00

3

5762033410
ref: 3

LEVER,CLUTCH

€ 28.50

4

5743133450
ref: 4

BOLT,LEVER

€ 8.50

5

0831921065
ref: 5

NUT

€ 2.50

6

5744111010
ref: 6

ADJUSTER,CABLE

€ 8.00

7

5744211010
ref: 7

NUT,CABLE ADJUSTER

€ 4.00

8

0110706205
ref: 8

BOLT

€ 2.00

9-1

3740049513
ref: 9-1

SWITCH ASSY, HANDLE LH

€ 165.00

9-2

3740049523
ref: 9-2
E22,MODEL G E2

SWITCH ASSY, HANDLE LH

€ 0.00

10

5872127503
ref: 10

LEVER,STARTER

€ 8.00

11

5872203010
ref: 11

WASHER,ADJUSTER

€ 3.00

12

3757249441
ref: 12

BODY,STARTER LEVER

€ 15.50

13

3757449440
ref: 13

SCREW,CHOKE LE

€ 2.50

14

0211205168
ref: 14

SCREW

€ 2.50

15

5766133400
ref: 15

COVER,CLUTCH LEVER

€ 7.50

16

0940712402
ref: 16

CLAMP(L:120)

€ 3.00
