OIL PUMP - OIL FILTER

GSX1100E 1985 (F) (E01 E02 E04 E21 E22 E24)

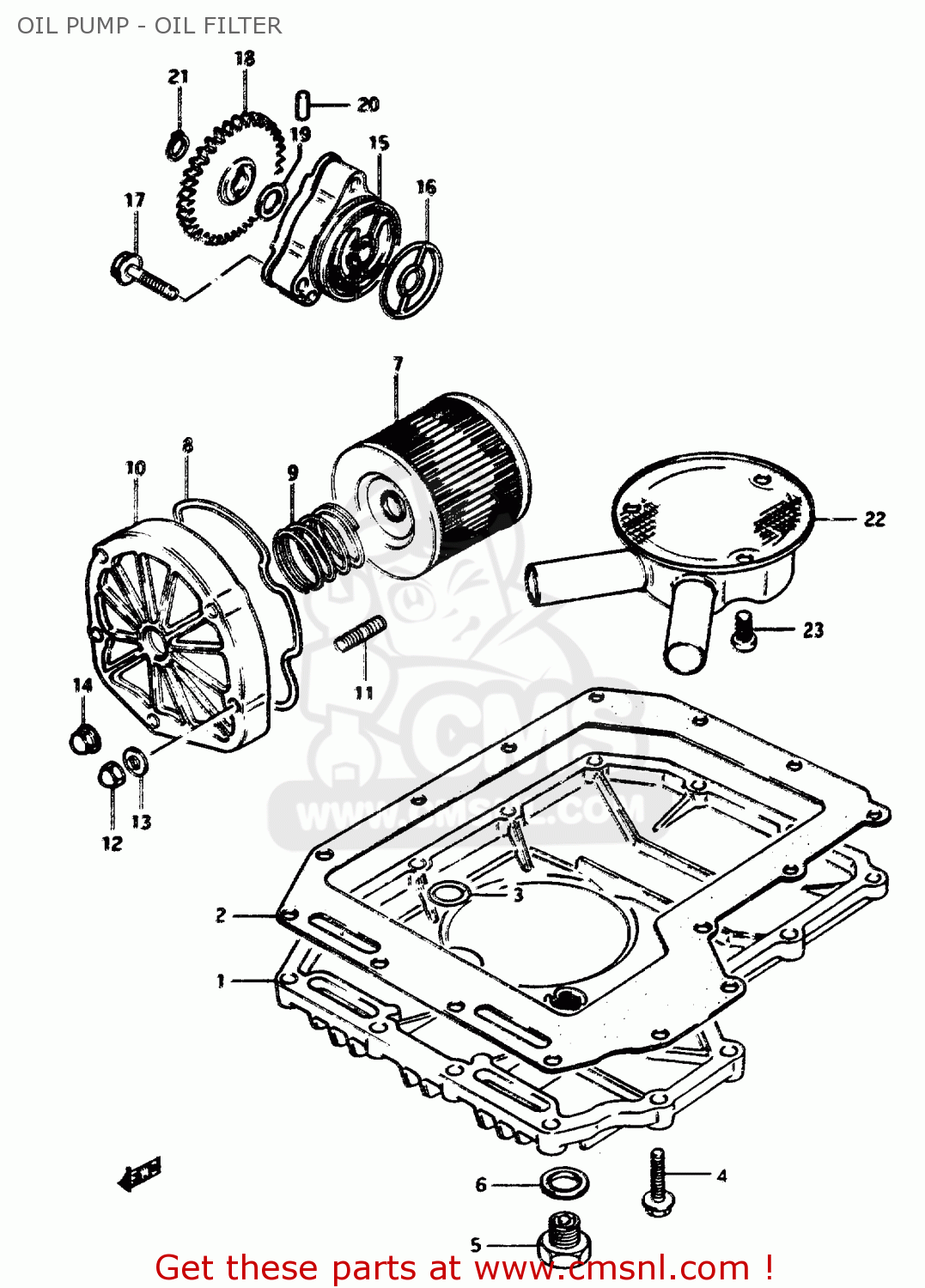

Oil pump - oil filter diagram GSX1100E 1985 (F) (E01 E02 E04 E21 E22 E24)

OIL PUMP - OIL FILTER GSX1100E 1985 (F) (E01 E02 E04 E21 E22 E24)

OIL PUMP - OIL FILTER GSX1100E 1985 (F) (E01 E02 E04 E21 E22 E24)

prices are in EUR

ref

part #

description

quantity

1

1151149201
ref: 1

PAN,OIL

€ 255.50

2-1

1148949200
ref: 2-1
~E.NO.102247

GASKET,OIL PAN (MCA)

€ 13.00

2-2

1148949201
ref: 2-2
E.NO.102248~

GASKET,OIL PAN (MCA)

€ 13.00

3

0928013001
ref: 3

O RING(D:3.2,ID:12.9)

€ 4.00

4

0151706254
ref: 4

BOLT

€ 2.50

5

0924714001
ref: 5

PLUG

€ 5.00

6

0916814004
ref: 6

GASKET(14X19.2X2) (NAS)

€ 2.50

7

1651045040
ref: 7

FILTER ASSY,ENGINE OIL

€ 7.50

8

1651849200
ref: 8

O RING,OIL FILTER CHAMBER CAP

€ 8.50

9

0944032004
ref: 9

SPRING

€ 13.50

10

1653100A00
ref: 10

CAP,ENGINE OIL FILTER

€ 151.50

11

0142106258
ref: 11

STUD 6X25

€ 2.50

12

0831311065
ref: 12
MODEL E/F

NUT 6MM

€ 2.00

13

0832221064
ref: 13
MODEL E/F

WASHER

€ 2.00

14

0831321065
ref: 14
MODEL G

NUT

€ 2.00

15

1640049220
ref: 15

PUMP ASSY,ENGINE OIL

€ 155.00

16

1649131300
ref: 16

O RING,OIL PUMP

€ 12.50

17

0910306045
ref: 17

BOLT(6X32)

€ 3.00

18

1633149000
ref: 18

GEAR,ENG OIL PUMP DRIVEN(NT:33

€ 84.50

19

0822110185
ref: 19

SHIM

€ 2.00

20

0926104009
ref: 20

PIN(4X15.8)

€ 1.50

21

0833131109
ref: 21

CIRCLIP

€ 2.00

22

1652049200
ref: 22

STRAINER,ENGINE OIL

€ 58.50

23

0211206128
ref: 23

SCREW 6X12

€ 2.00
