REAR CALIPERS

GSX1100EF 1985 (F) (E01 E02 E04 E15 E16 17 18 21 22 24 25 34 39)

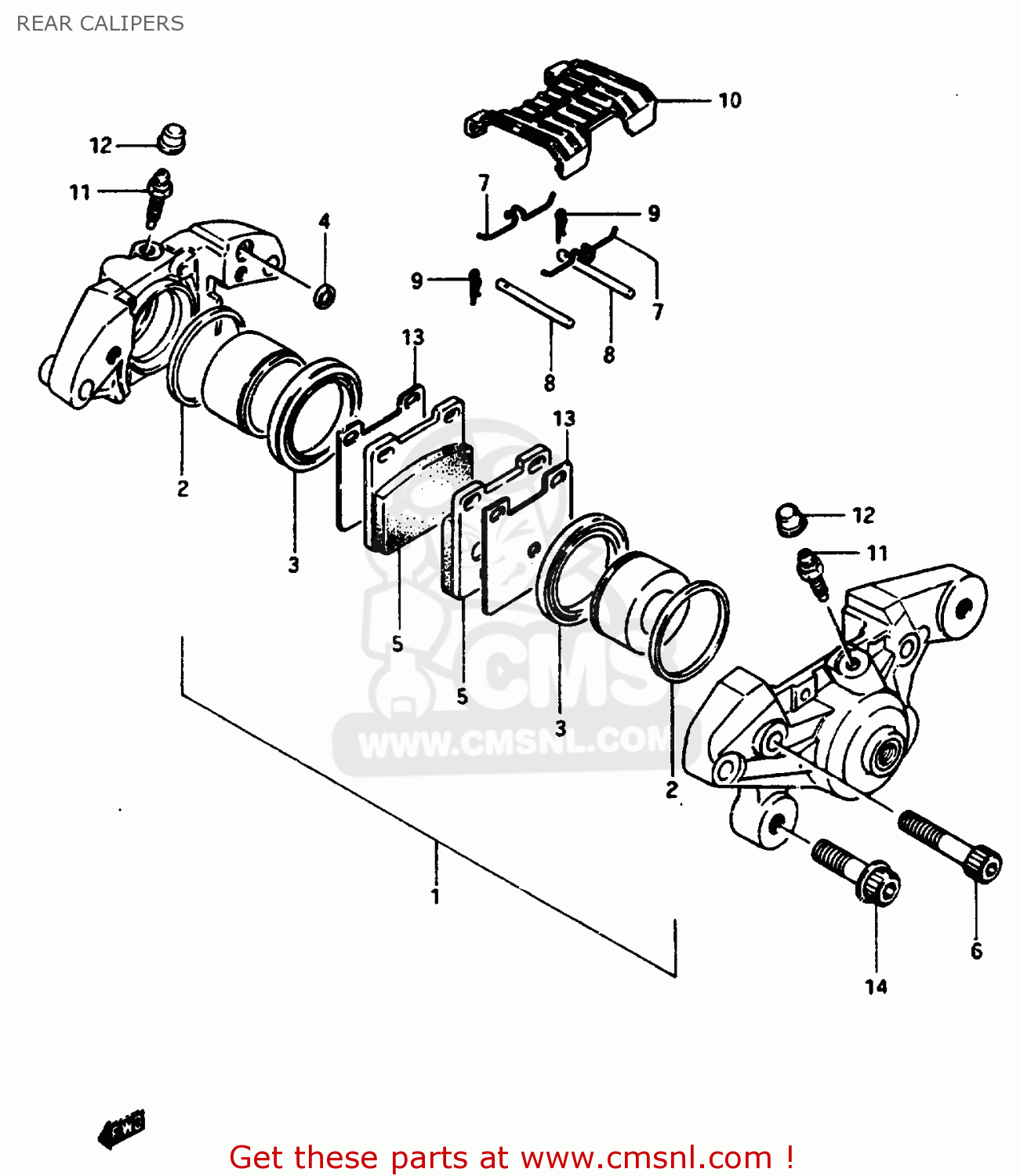

Rear calipers diagram GSX1100EF 1985 (F) (E01 E02 E04 E15 E16 17 18 21 22 24 25 34 39)

REAR CALIPERS GSX1100EF 1985 (F) (E01 E02 E04 E15 E16 17 18 21 22 24 25 34 39)
REAR CALIPERS GSX1100EF 1985 (F) (E01 E02 E04 E15 E16 17 18 21 22 24 25 34 39)
REAR CALIPERS GSX1100EF 1985 (F) (E01 E02 E04 E15 E16 17 18 21 22 24 25 34 39)
prices are in EUR
ref
part #
description
quantity
0
6910000A00
ref: 0
CALIPER ASSEMBLY,REAR
€ 383.50
1
6910000810
ref: 1
PISTON SET
€ 94.00
2
5910718410
ref: 2
SEAL,PISTON
5910718410
€ 17.00
3
6910845000
ref: 3
BOOT,PISTON
6910845000
€ 10.00
4
6910734200
ref: 4
SEAL,JOINT
6910734200
€ 12.00
5
5913000A00
ref: 5
PAD,BRAKE
5913000A00
€ 24.00
6
5914500A00
ref: 6
BOLT,CALIPER
5914500A00
€ 18.00
7
5914316700
ref: 7
SPRING
5914316700
€ 7.50
8
6914145000
ref: 8
PIN,PAD
6914145000
€ 6.50
9
6914245000
ref: 9
CLIP,PAD PIN
6914245000
€ 4.50
10
5915100A00
ref: 10
COVER,CALIPER
€ 13.00
11
5912118410
ref: 11
BLEEDER
5912118410
€ 8.00
12
5912218410
ref: 12
CAP,BREATHER
5912218410
€ 6.00
13
5937133410
ref: 13
SHIM,PAD
5937133410
€ 15.00
14
0910610026
ref: 14
BOLT 10X28
€ 2.50
