SEAT MOLDING (MODEL E)

GSX1100EF 1985 (F) (E01 E02 E04 E15 E16 17 18 21 22 24 25 34 39)

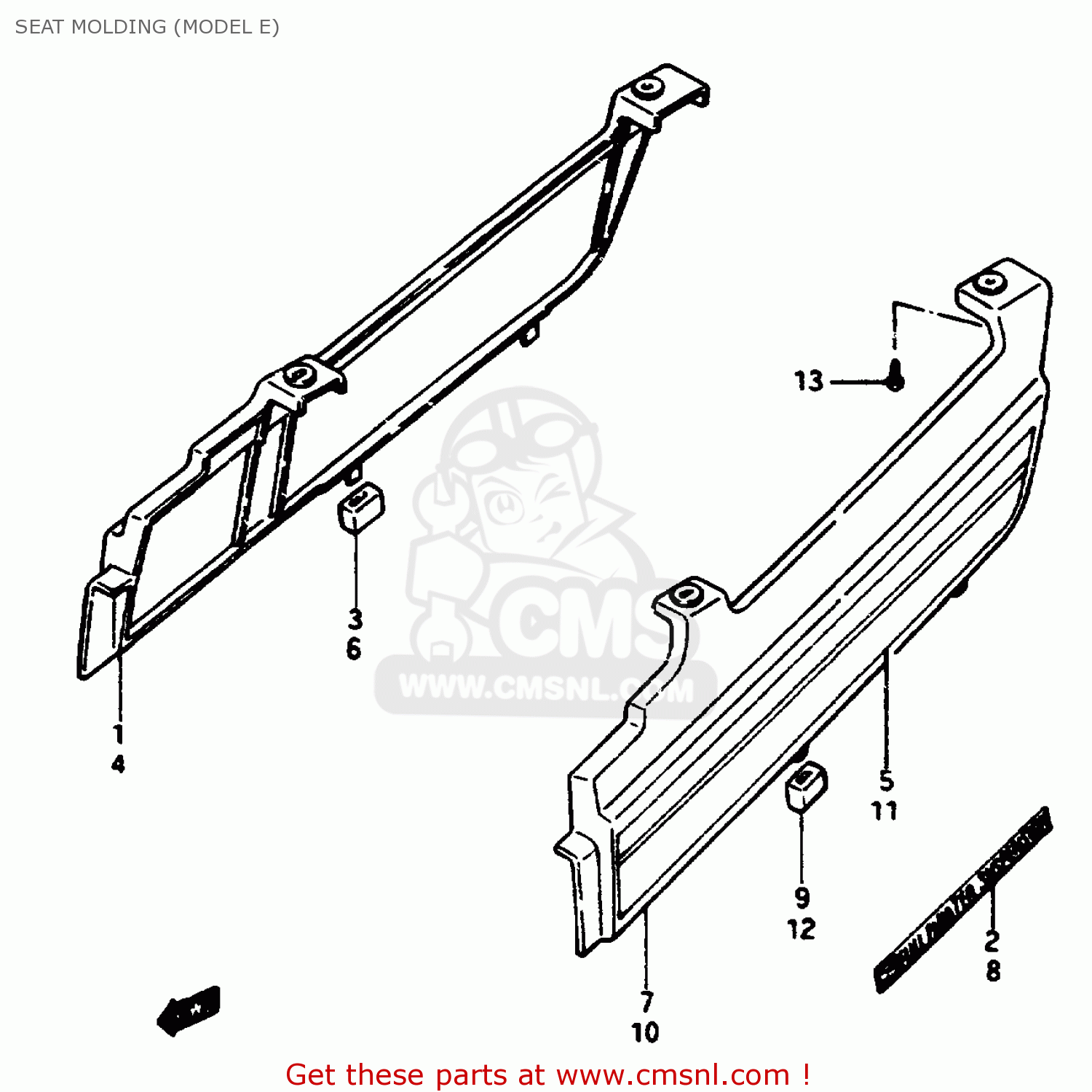

Seat molding (model e) diagram GSX1100EF 1985 (F) (E01 E02 E04 E15 E16 17 18 21 22 24 25 34 39)

SEAT MOLDING (MODEL E) GSX1100EF 1985 (F) (E01 E02 E04 E15 E16 17 18 21 22 24 25 34 39)

SEAT MOLDING (MODEL E) GSX1100EF 1985 (F) (E01 E02 E04 E15 E16 17 18 21 22 24 25 34 39)

prices are in EUR

ref

part #

description

quantity

1-1

4541000A0017R
ref: 1-1
GSX1100EE

MOLDING,SEAT,RIGHT

€ 33.50

1-2

4541000A1017R
ref: 1-2
GSX1100EE E39

MOLDING, SEAT RH (RED)

€ 0.00

1-3

4541000A0016D
ref: 1-3
GSX1100ESE/EFE

MOLDING, SEAT RH (WHITE)

€ 33.50

1-4

4541000A1016D
ref: 1-4
GSX1100ESE/EFE E39

MOLDING, SEAT RH (WHITE)

€ 0.00

1-5

4541000A0021J
ref: 1-5
GSX1100ESE/EFE

MOLDING, SEAT RH (SILVER)

€ 33.50

1-6

4541000A1021J
ref: 1-6
GSX1100ESE/EFE E39

MOLDING, SEAT RH (SILVER)

€ 0.00

2-1

682353130091R
ref: 2-1
FOR 17R

EMBLEM

€ 12.00

2-2

682353130087W
ref: 2-2
FOR 16D,21J

EMBLEM

€ 4.50

3

4519500A00
ref: 3

CAP,SEAT MOLDING

€ 4.00

4

4541000A2019F
ref: 4
GSX1100EFE E2

MOLDING, SEAT RH (BLUE)

€ 0.00

5

6865000A0014L
ref: 5
GSX1100EFE E2

TAPE SET, RH (WHITE)

€ 0.00

6

4519500A00
ref: 6

CAP,SEAT MOLDING

€ 4.00

7-1

4542000A0017R
ref: 7-1
GSX1100EE

MOLDING,SEAT,LEFT

€ 41.50

7-2

4542000A1017R
ref: 7-2
GSX1100EE E39

MOLDING, SEAT LH (RED)

€ 0.00

7-3

4542000A0016D
ref: 7-3
GSX1100ESE/EFE

MOLDING, SEAT LH (WHITE)

€ 41.50

7-4

4542000A1016D
ref: 7-4
GSX1100ESE/EFE E39

MOLDING, SEAT LH (WHITE)

€ 0.00

7-5

4542000A0021J
ref: 7-5
GSX1100ESE/EFE

MOLDING, SEAT LH (SILVER)

€ 41.50

7-6

4542000A1021J
ref: 7-6
GSX1100ESE/EFE E39

MOLDING, SEAT LH (SILVER)

€ 0.00

8-1

682353130091R
ref: 8-1
FOR 17R

EMBLEM

€ 12.00

8-2

682353130087W
ref: 8-2
FOR 16D,21J

EMBLEM

€ 4.50

9

4519500A00
ref: 9

CAP,SEAT MOLDING

€ 4.00

10

4542000A2019F
ref: 10
GSX1100EFE E2

MOLDING, SEAT LH (BLUE)

€ 0.00

11

6876000A0014L
ref: 11
GSX1100EFE E2

TAPE SET, LH (WHITE)

€ 0.00

12

4519500A00
ref: 12

CAP,SEAT MOLDING

€ 4.00

13

0315104166
ref: 13

SCREW

€ 2.00
