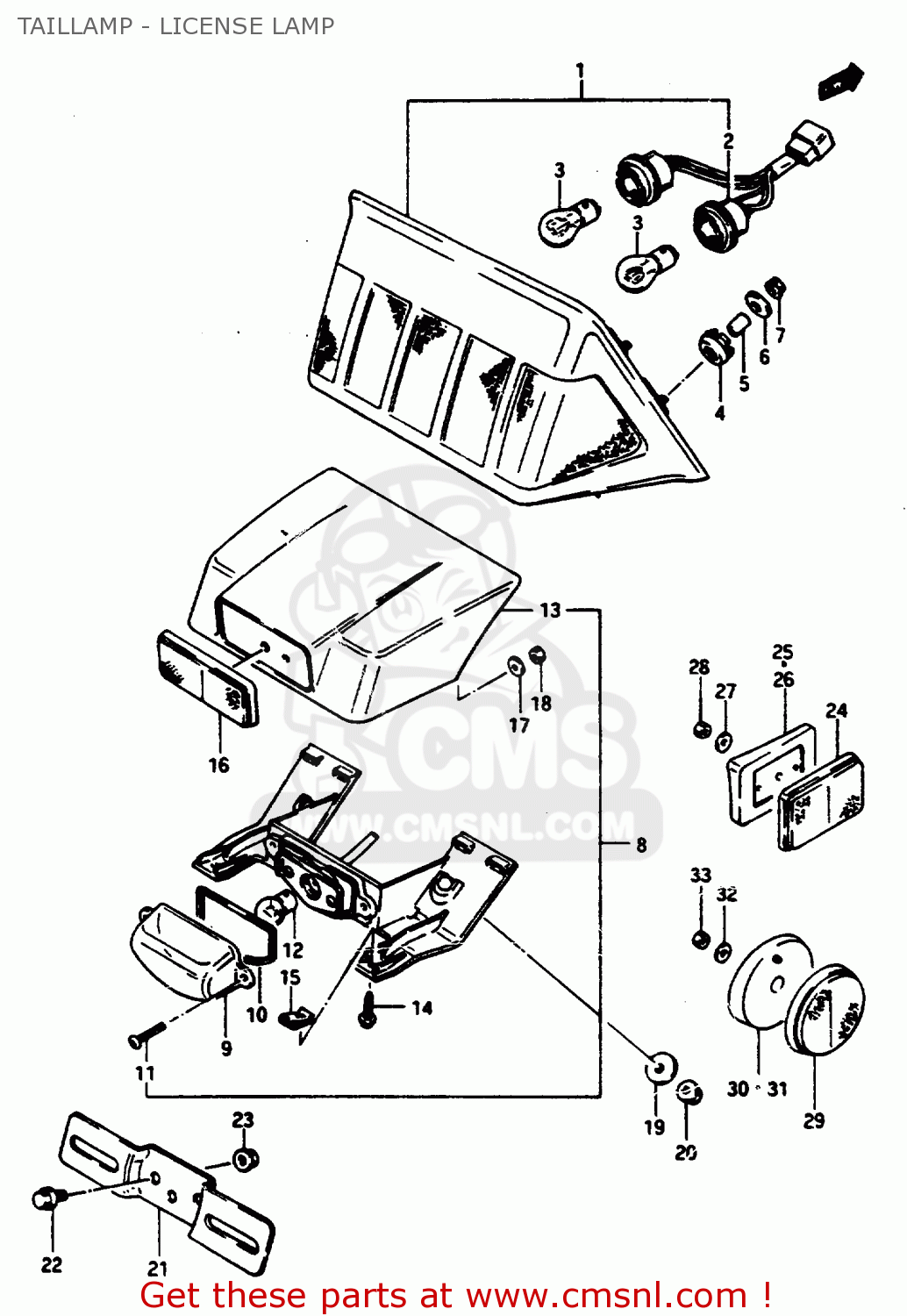

TAILLAMP - LICENSE LAMP - GSX1100EF 1985 (F) (E01 E02 E04 E15 E16 17 18 21 22 24 25 34 39)

ref

part #

description

quantity

1-1

3571000A10
ref: 1-1
E1,E6,E24

LAMP ASSY, REAR COMBINATION

€ 195.00

1-2

3571000A20
ref: 1-2
MODEL E/F E2,E17,E39

LAMP ASSY,RR C

€ 195.00

1-3

3571000A50
ref: 1-3
MODEL G E2,E17,E39

LAMP ASSY, REAR COMBINATION

€ 195.00

1-4

3571000A20
ref: 1-4
E4,E16,E18,E21,E25,E

LAMP ASSY,RR C

€ 195.00

1-5

3571000A50
ref: 1-5
E15,E26

LAMP ASSY, REAR COMBINATION

€ 195.00

1-6

3571000A60
ref: 1-6
E22

LAMP ASSY, REAR COMBINATION

€ 195.00

2-1

3571800A10
ref: 2-1

SOCKET,REAR COMBINATION LAMP

€ 0.00

2-2

3571800A50
ref: 2-2
E15,E26,MODEL G E2,E

SOCKET,REAR COMBINATION LAMP

€ 0.00

3-1

0947112084
ref: 3-1
E1,E6,E24

BULB(12V23/8W,TOKAI DENSO)

€ 6.00

3-2

0947112083
ref: 3-2
E2,E4,E15,E16,E17,E1

BULB(12V21/5W)

€ 6.00

4

0932009015
ref: 4

CUSHION

€ 2.50

5

0918006062
ref: 5

SPACER (6.4X9X13.5)

€ 2.00

6

0916006060
ref: 6

WASHER

€ 2.00

7

0831626066
ref: 7

NUT

€ 2.00

8-1

3591000A10
ref: 8-1
E1,E6,E24

LAMP ASSEMBLY,LICENSE

€ 0.00

8-2

3591000A20
ref: 8-2
MODEL E E2,E4,E16,E1

LAMP ASSY, LICENSE

€ 78.50

8-3

3591000A21
ref: 8-3
MODEL F E2,E17,E39 M

LAMP ASSY, LICENSE

€ 78.50

8-4

3591000A51
ref: 8-4
MODEL G E2,E17,E39

LAMP ASSY, LICENSE

€ 78.50

8-5

3591000A50
ref: 8-5
MODEL E E15,E26

LAMP ASSY, LICENSE

€ 78.50

8-6

3591000A51
ref: 8-6
MODEL F/G E15,E26

LAMP ASSY, LICENSE

€ 78.50

9-1

3591200A10
ref: 9-1
E1,E6,E24

LENS,LICENSE LAMP

€ 16.00

9-2

3591200A20
ref: 9-2
E2,E4,E15,E16,E17,E1

LENS,LICENSE LAMP

€ 24.00

10

3591304A00
ref: 10

GASKET,LICESE LAMP (NAS)

€ 4.00

11

0321104208
ref: 11

SCREW

€ 1.50

12-1

0947112037
ref: 12-1
E1,E6,E24

BULB

€ 7.00

12-2

0947112058
ref: 12-2
E2,E4,E15,E16,E17,E1

BULB

€ 4.00

13

3591700A10
ref: 13

COVER,LICENSE LAMP

€ 15.00

14

0315104165
ref: 14

SCREW

€ 2.00

15

3565716700
ref: 15

COVER,TURN,RIGHT

€ 2.00

16-1

3597000A00
ref: 16-1
E1,E6,E24

REFLEX REFLECTOR,REAR

€ 22.00

16-2

3597000A00
ref: 16-2
MODEL E E2,E4,E15,E1

REFLEX REFLECTOR,REAR

€ 22.00

16-3

3597000A10
ref: 16-3
MODEL F/G E2,E4,E15,

REFLEX REFLECTOR,RR

€ 22.00

17

0916005013
ref: 17

WASHER(5.2X16X1)

€ 1.50

18

0831011056
ref: 18

NUT

€ 2.50

19

0916006060
ref: 19

WASHER

€ 2.00

20

0831626066
ref: 20

NUT

€ 2.00

21

3592700A10
ref: 21

BRACKET,LICENSE PLATE

€ 6.00

22

0151706164
ref: 22

BOLT

€ 2.50

23

0831626066
ref: 23
E39

NUT

€ 2.00

24

3595049330
ref: 24
E39

REFLECTOR,REFLEX

€ 15.00

25

3597700A00
ref: 25
E39

SPACER, RH

€ 0.00

26

3597800A00
ref: 26
E39

SPACER, LH

€ 0.00

27

0916005013
ref: 27
E39

WASHER(5.2X16X1)

€ 1.50

28

0831011056
ref: 28
E39

NUT

€ 2.50

29

3595014A30
ref: 29
E39

REFLEX REFLECTOR ASSY,FR

€ 12.00

30

3597700A10
ref: 30
E39

SPACER, RH

€ 0.00

31

3597800A10
ref: 31
E39

SPACER, LH

€ 0.00

32

0916005013
ref: 32
E39

WASHER(5.2X16X1)

€ 1.50

33

0831011056
ref: 33
E39

NUT

€ 2.50

TAILLAMP - LICENSE LAMP

all assemblies
