COWLING (MODEL J 9RD)

GSX1100F 1991 (M) (E01 E02 E04 15 16 17 18 21 22 24 25 34 39 53)

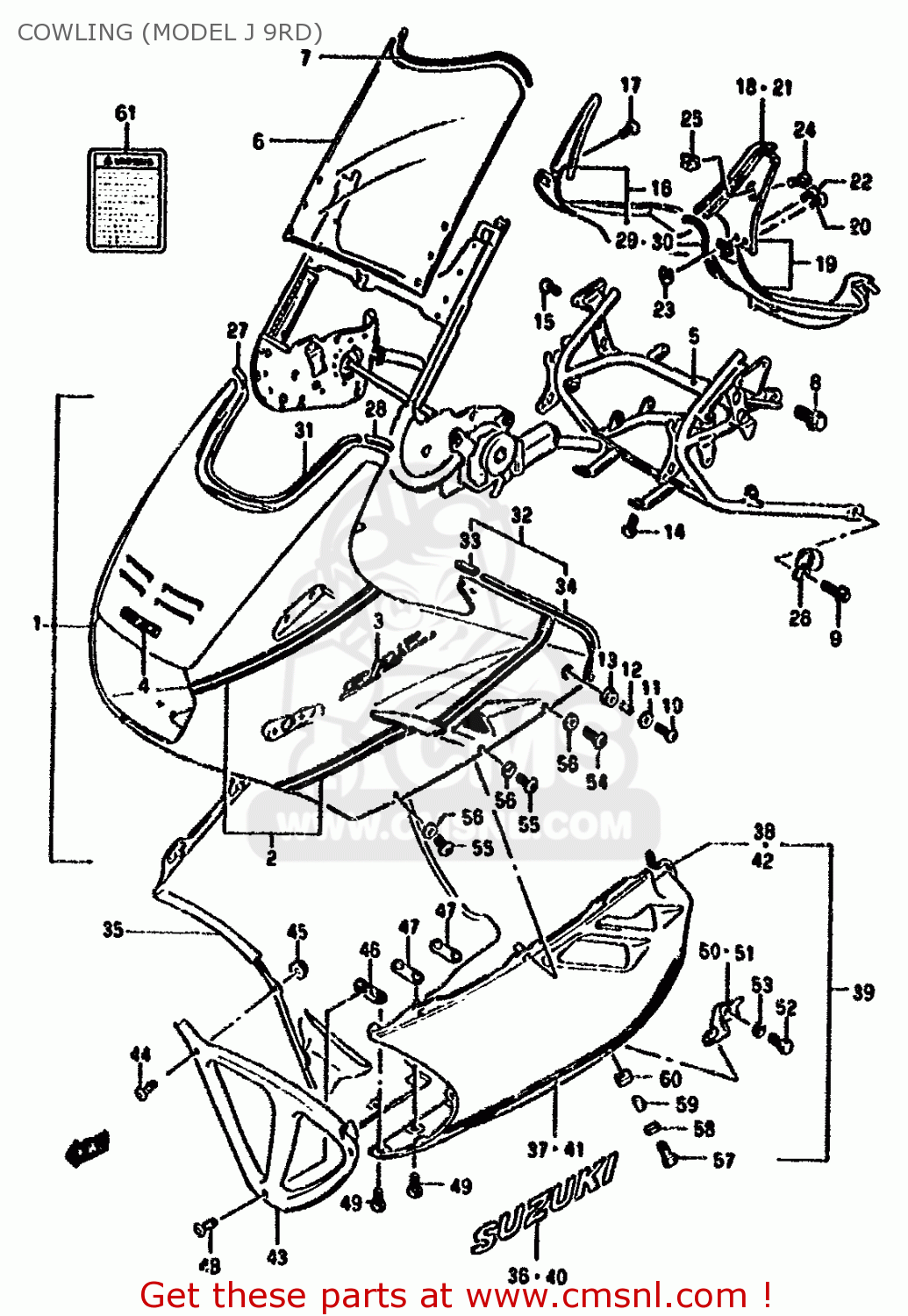

Cowling (model j 9rd) diagram GSX1100F 1991 (M) (E01 E02 E04 15 16 17 18 21 22 24 25 34 39 53)

COWLING (MODEL J 9RD) GSX1100F 1991 (M) (E01 E02 E04 15 16 17 18 21 22 24 25 34 39 53)
COWLING (MODEL J 9RD) GSX1100F 1991 (M) (E01 E02 E04 15 16 17 18 21 22 24 25 34 39 53)
COWLING (MODEL J 9RD) GSX1100F 1991 (M) (E01 E02 E04 15 16 17 18 21 22 24 25 34 39 53)
prices are in EUR
ref
part #
description
quantity
1
9440048B409RD
ref: 1
BODY ASSY,COWLING
€ 1,144.00
2
6818048B109RL
ref: 2
TAPE SET
€ 89.50
3
6818148B002CG
ref: 3
EMBLEM (SPS)
€ 21.50
4
6827134A00764
ref: 4
EMBLEM
€ 5.00
5
9451048B11
ref: 5
BRACE,COWLING
€ 213.50
6
9461148B30
ref: 6
WINDSCREEN
9461148B30
€ 309.50
7
9463148B10
ref: 7
E76 (SWEDEN)
MOLDING
9463148B10
€ 22.50
8
0910310195
ref: 8
BOLT(10X12)
0910310195
€ 2.00
9
0711008165
ref: 9
BOLT
€ 3.00
10
0913906028
ref: 10
SCREW(6X20)
0913906028
€ 3.50
11
0916006056
ref: 11
WASHER(6.5X18X1)
0916006056
€ 2.00
12
0918006152
ref: 12
SPACER
0918006152
€ 3.00
13
0932009016
ref: 13
CUSHION
0932009016
€ 2.50
14
0913906030
ref: 14
SCREW(6X16)
0913906030
€ 3.50
15
0214206127
ref: 15
SCREW 6X12
0214206127
€ 1.50
16
9470048B1038T
ref: 16
PANEL ASSY,R
9470048B1038T
€ 153.00
17
0214205084
ref: 17
SCREW
€ 2.00
18
9441948B10
ref: 18
MOLDING,COWL.
9441948B10
€ 6.00
19
9480048B1038T
ref: 19
PANEL ASSEMBLY,LEFT
9480048B1038T
€ 170.00
20
0214205084
ref: 20
SCREW
€ 2.00
21
9441948B10
ref: 21
MOLDING,COWL.
9441948B10
€ 6.00
22
0214205124
ref: 22
SCREW, FRONT & REAR
€ 1.50
23
0914805020
ref: 23
NUT
0914805020
€ 2.00
24
0324205124
ref: 24
SCREW
0324205124
€ 1.50
25
0914805020
ref: 25
NUT
0914805020
€ 2.00
26
0940318406
ref: 26
CLAMP
€ 5.50
27
9442648B10
ref: 27
CAP,PANEL & COWLING,R
9442648B10
€ 5.50
28
9442748B10
ref: 28
CAP,PANEL & COWLING,L
9442748B10
€ 4.50
29
9459148B10
ref: 29
MOLDING,COWLING PANEL,R
9459148B10
€ 10.00
30
9459248B10
ref: 30
MOLDING,COWLING PANEL
9459248B10
€ 11.50
31
9441948B00
ref: 31
MOULDING
9441948B00
€ 6.00
32
9443948B00
ref: 32
MOLDING,COWLING BODY SIDE
9443948B00
€ 15.00
33
9465148B00
ref: 33
COVER,MOLDING END
9465148B00
€ 7.50
34
9447948B00
ref: 34
MOLDING,COWLING BODY SIDE
9447948B00
€ 8.50
35
9760048B329RD
ref: 35
COVER ASSY,LOWER RH (BLUE/RED)
€ 320.00
36
6811100A50764
ref: 36
EMBLEM
6811100A50764
€ 17.50
37
6868548B109RL
ref: 37
TAPE,RH
€ 41.50
38
9447948B10
ref: 38
MOLDING,COWLING,LOWER
€ 8.50
39
9770048B329RD
ref: 39
COVER ASSY,LOWER LH (BLUE/RED)
€ 679.00
40
6811100A50764
ref: 40
EMBLEM
6811100A50764
€ 17.50
41
6869548B109RL
ref: 41
TAPE,LH
€ 41.50
42
9447948B10
ref: 42
MOLDING,COWLING,LOWER
€ 8.50
43
9447548B0024V
ref: 43
COVER,COWLING,LOWER,FRONT
€ 66.50
44
0913905025
ref: 44
SCREW(5X14)
0913905025
€ 2.00
45
0831626055
ref: 45
NUT
0831626055
€ 2.00
46
9449006B00
ref: 46
BRACE,COWLING LWR COVER
9449006B00
€ 4.50
47
9449306B00
ref: 47
BRACE,COWLING LWR COVER RR
9449306B00
€ 4.00
48
0913906027
ref: 48
SCREW(6X12)
0913906027
€ 3.00
49
0913906039
ref: 49
SCREW(6X16)
0913906039
€ 2.50
50
9458048B11
ref: 50
BRACE,COWLING LWR,R
9458048B11
€ 6.00
51
9459048B11
ref: 51
BRACE,COWLING LWR,L
€ 8.00
52
0110708127
ref: 52
BOLT 8X12
€ 2.50
53
0832121088
ref: 53
LOCK WASHER
0832121088
€ 2.00
54
0913906028
ref: 54
SCREW(6X20)
0913906028
€ 3.50
55
0913906030
ref: 55
SCREW(6X16)
0913906030
€ 3.50
56
0916107005
ref: 56
WASHER
0916107005
€ 3.00
57
0913906028
ref: 57
SCREW(6X20)
0913906028
€ 3.50
58
0916006056
ref: 58
WASHER(6.5X18X1)
0916006056
€ 2.00
59
0918006121
ref: 59
SPACER(6.4X9.2X12)
0918006121
€ 2.50
60
0932009016
ref: 60
CUSHION
0932009016
€ 2.50
61-1
6861248B10
ref: 61-1
E4
LABEL (WARNING SCREEN)
6861248B10
€ 6.50
61-2
6861248B00
ref: 61-2
E18,E75,E76,E78
LABEL (WARNING SCREEN)
6861248B00
€ 6.50
