Buy Suzuki GSX Parts Online


REAR CUSHION LEVER

GSX1100F 1991 (M) (E01 E02 E04 15 16 17 18 21 22 24 25 34 39 53)

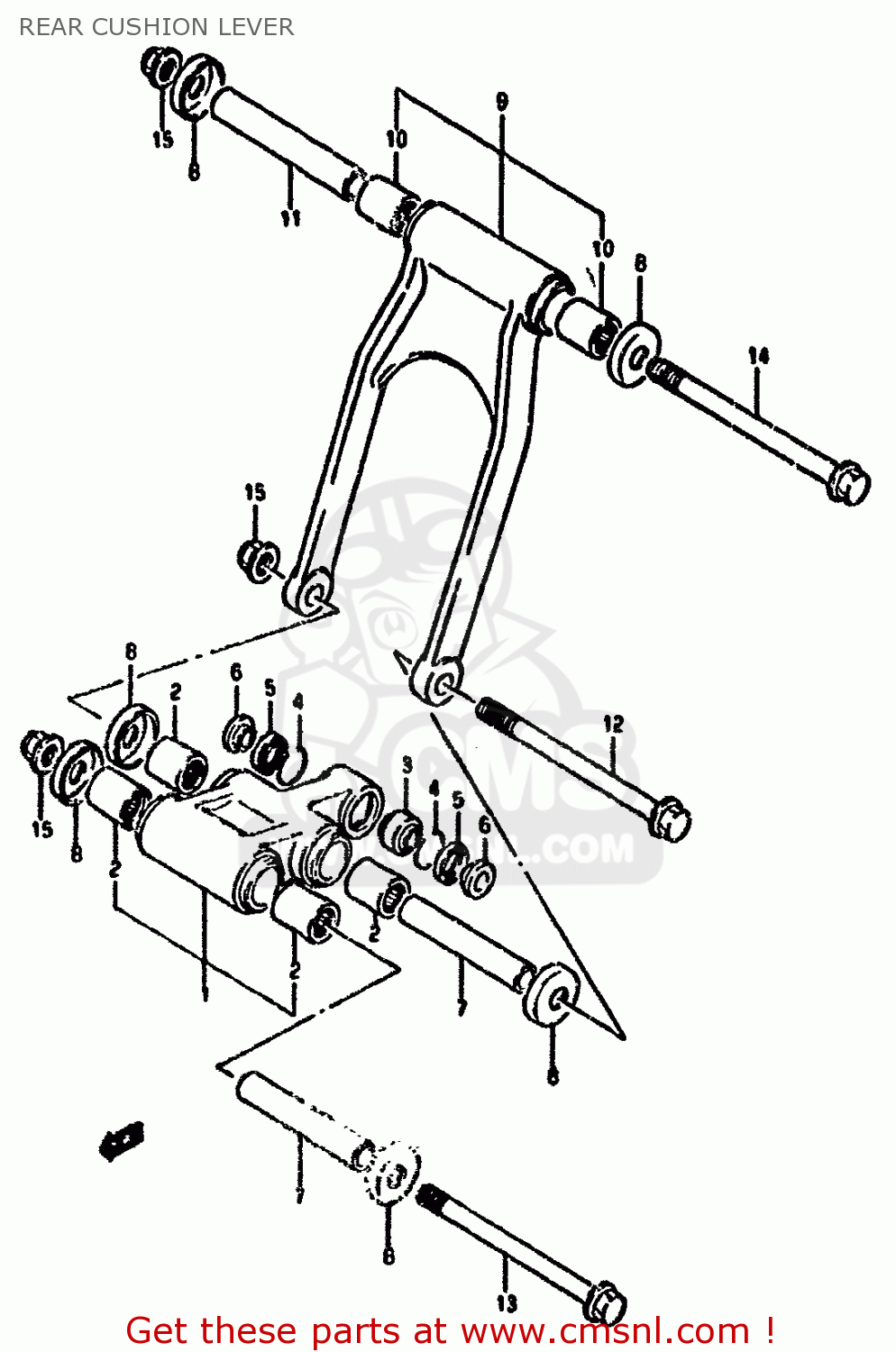

Rear cushion lever diagram GSX1100F 1991 (M) (E01 E02 E04 15 16 17 18 21 22 24 25 34 39 53)

REAR CUSHION LEVER GSX1100F 1991 (M) (E01 E02 E04 15 16 17 18 21 22 24 25 34 39 53)
REAR CUSHION LEVER GSX1100F 1991 (M) (E01 E02 E04 15 16 17 18 21 22 24 25 34 39 53)
REAR CUSHION LEVER GSX1100F 1991 (M) (E01 E02 E04 15 16 17 18 21 22 24 25 34 39 53)
prices are in EUR
ref
part #
description
quantity
1
6260048830
ref: 1
LEVER SET,REAR CUSHION
€ 0.00
2
0926317038
ref: 2
BEARING(17X24X30)
0926317038
€ 21.00
3
6217500B00
ref: 3
BEARING,RR CUSHION LEVER
6217500B00
€ 66.00
4
6265734A01
ref: 4
RING,STOPPER
6265734A01
€ 1.50
5
6268343400
ref: 5
DUST SEAL,RR CUSHION LEVER RR
6268343400
€ 4.00
6
6268443401
ref: 6
SPACER
6268443401
€ 7.00
7
6264648B10
ref: 7
SPACER,REAR CUSHION LEVER
€ 15.00
8
6262748B00
ref: 8
COVER,THRUST
€ 4.00
9
6260048840
ref: 9
ROD SET,REAR CUSHION,LEFT
€ 0.00
10
0926317038
ref: 10
BEARING(17X24X30)
0926317038
€ 21.00
11
6231748B10
ref: 11
SPACER,REAR CUSHION ROD
€ 21.00
12
0910312030
ref: 12
BOLT L:145
€ 14.50
13
0910012050
ref: 13
BOLT L:135
€ 7.00
14
0910312031
ref: 14
BOLT(12X155)
0910312031
€ 13.00
15
0831931128
ref: 15
NUT 12MM
0831931128
€ 4.00
