FUEL TANK (MODEL N/P/R)

GSX1100F 1991 (M) (E01 E02 E04 15 16 17 18 21 22 24 25 34 39 53)

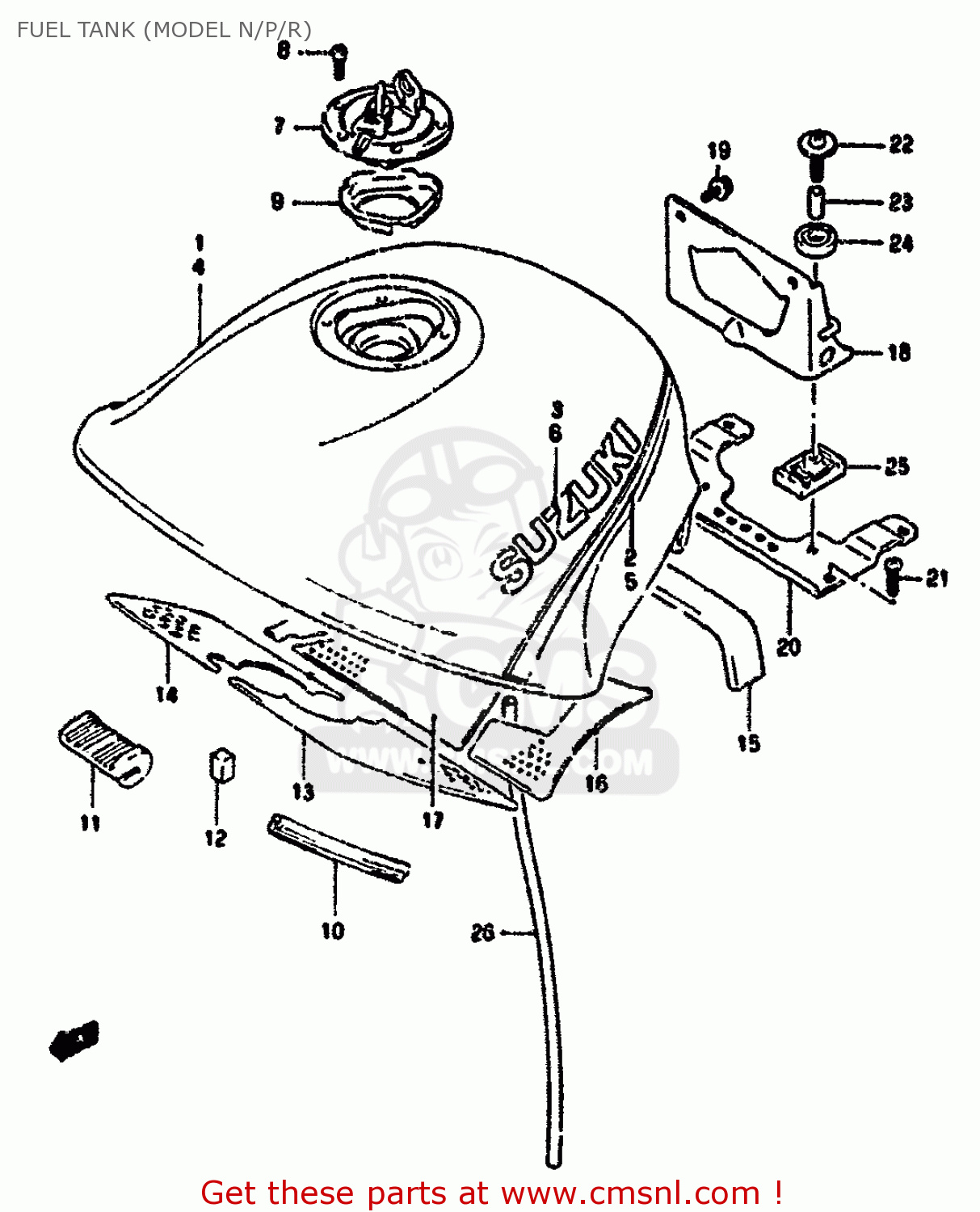

Fuel tank (model n/p/r) diagram GSX1100F 1991 (M) (E01 E02 E04 15 16 17 18 21 22 24 25 34 39 53)

FUEL TANK (MODEL N/P/R) GSX1100F 1991 (M) (E01 E02 E04 15 16 17 18 21 22 24 25 34 39 53)
FUEL TANK (MODEL N/P/R) GSX1100F 1991 (M) (E01 E02 E04 15 16 17 18 21 22 24 25 34 39 53)
FUEL TANK (MODEL N/P/R) GSX1100F 1991 (M) (E01 E02 E04 15 16 17 18 21 22 24 25 34 39 53)
prices are in EUR
ref
part #
description
quantity
1-1
4410048D20K31
ref: 1-1
MODEL N
TANK ASSY,FUEL
€ 884.50
1-2
4410048D21K31
ref: 1-2
MODEL P
TANK ASSEMBLY,FUEL
€ 884.50
1-3
4410048D40K31
ref: 1-3
E22
TANK ASSY,FUEL
€ 884.50
1-4
4410048D20K32
ref: 1-4
MODEL N
TANK ASSY,FUEL
€ 804.00
1-5
4410048D21K32
ref: 1-5
MODEL P
TANK ASSEMBLY,FUEL
€ 804.00
1-6
4410048D40K32
ref: 1-6
E22
TANK ASSY,FUEL
€ 804.00
2-1
6811548C00L21
ref: 2-1
MODEL N/P FOR K31
TAPE,FUEL TANK STRIPE
€ 99.50
2-2
6811548C00L22
ref: 2-2
MODEL N/P FOR K32
TAPE,FUEL TANK STRIPE
€ 99.50
3-1
6811148B0023S
ref: 3-1
MODEL N/P FOR K31
EMBLEM (SILVER)
€ 18.00
3-2
6811148B0024G
ref: 3-2
MODEL N/P FOR K32
EMBLEM (GOLD)
€ 18.50
4-1
4410048C7033J
ref: 4-1
MODEL R
TANK ASSY,FUEL
€ 1,147.00
4-2
4410048C7020F
ref: 4-2
MODEL R
TANK ASSY,FUEL
€ 599.50
4-3
4410048C8033J
ref: 4-3
MODEL R E22
TANK ASSY,FUEL (BLACK)
€ 1,147.00
4-4
4410048C8020F
ref: 4-4
MODEL R E22
TANK ASSY,FUEL(MAROON)
€ 599.50
5-1
6811548C10C3M
ref: 5-1
MODEL R FOR 33J
STRIPE TAPE,TN
€ 65.50
5-2
6811548C10C3L
ref: 5-2
MODEL R FOR 20F
TAPE,FUEL TANK
€ 55.00
6-1
6811124D0017U
ref: 6-1
MODEL R FOR 33J
EMBLEM (GRAY)
€ 19.00
6-2
6811124D000RN
ref: 6-2
MODEL R FOR 20F
EMBLEM,FUEL TANK
6811124D000RN
€ 20.00
7
4420048810
ref: 7
CAP SET,FUEL TANK
€ 187.00
8
0910605016
ref: 8
BOLT(5X10)
0910605016
€ 2.00
9
4426248B00
ref: 9
E17,E22,E39
COVER,FUEL TANK INLET
4426248B00
€ 48.00
10
6824148B00
ref: 10
MOLDING,FUEL TANK
€ 6.00
11
4451148B10
ref: 11
CUSHION,FUEL TANK FR
4451148B10
€ 9.50
12
4454548B10
ref: 12
CUSHION,FUEL TANK SIDE
4454548B10
€ 10.00
13
4419648B00
ref: 13
HEATSHIELD,FUEL TANK FR,L
€ 17.50
14
4419748B00
ref: 14
HEAT SHIELD,FUEL TANK
€ 13.00
15
4419348B01
ref: 15
HEAT SHIELD,FUEL TANK
€ 9.50
16
4419848B00
ref: 16
HEATSHIELD,FUEL TANK RR,L
4419848B00
€ 18.00
17
4419948B00
ref: 17
HEAT SHIELD,FUEL TANK
4419948B00
€ 36.50
18
4455048B10
ref: 18
BRACKET COMP,FUEL TANK
€ 22.00
19
0913806038
ref: 19
SCREW(6X16)
0913806038
€ 3.00
20
4457048B00
ref: 20
BRACKET,FUEL TANK RR LOW
4457048B00
€ 18.00
21-1
0214206205
ref: 21-1
MODEL N/P
SCREW, CENTER
0214206205
€ 2.00
21-2
0214206203
ref: 21-2
MODEL R
SCREW
0214206203
€ 2.00
22
0913606106
ref: 22
BOLT L:35,WITH WASHER
0913606106
€ 2.50
23
0918006091
ref: 23
SPACER (6.4X9X21.5)
0918006091
€ 5.50
24
0932016010
ref: 24
CUSHION
0932016010
€ 5.00
25
0932009033
ref: 25
CUSHION
€ 7.50
26
093527010300A
ref: 26
HOSE (7X10.2X1000)
€ 17.50
