CYLINDER HEAD COVER

GSX1300BKA BKING 2008 (K8) USA (E03)

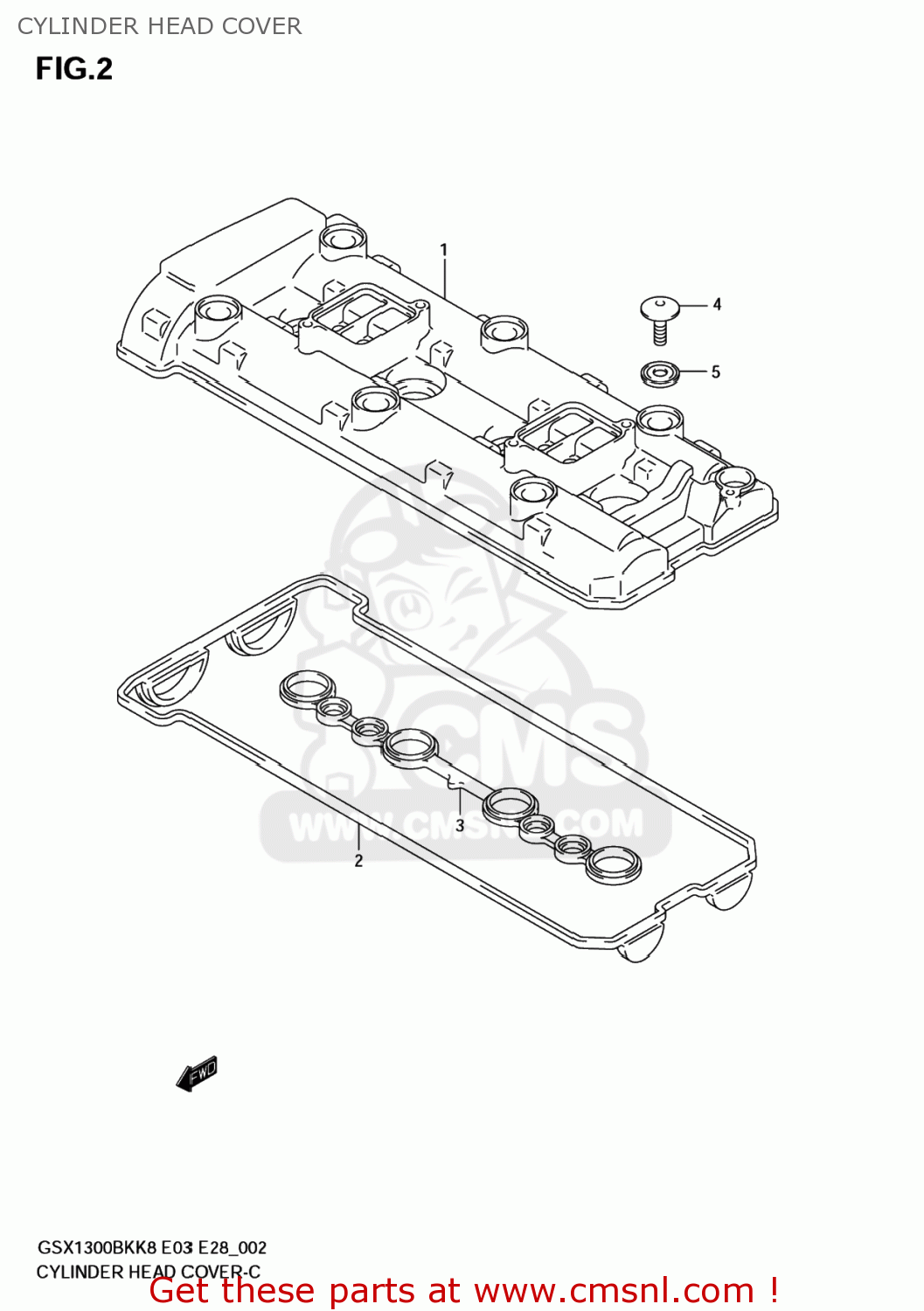

Cylinder head cover diagram GSX1300BKA BKING 2008 (K8) USA (E03)

CYLINDER HEAD COVER GSX1300BKA BKING 2008 (K8) USA (E03)

CYLINDER HEAD COVER GSX1300BKA BKING 2008 (K8) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

1117015H00
ref: 1

COVER,CYLINDER HEAD

€ 428.00

2

1117324F00
ref: 2

GASKET,CYL HEAD COVER NO.1 (NAS)

€ 43.50

3

1117815H00
ref: 3

GASKET,CYL HEAD COVER NO.2 (NAS)

€ 10.00

4

0910607021
ref: 4

BOLT(7X17.5)

€ 4.50

5

1119127E00
ref: 5

WASHER,CYL HEAD COVER

€ 4.50
