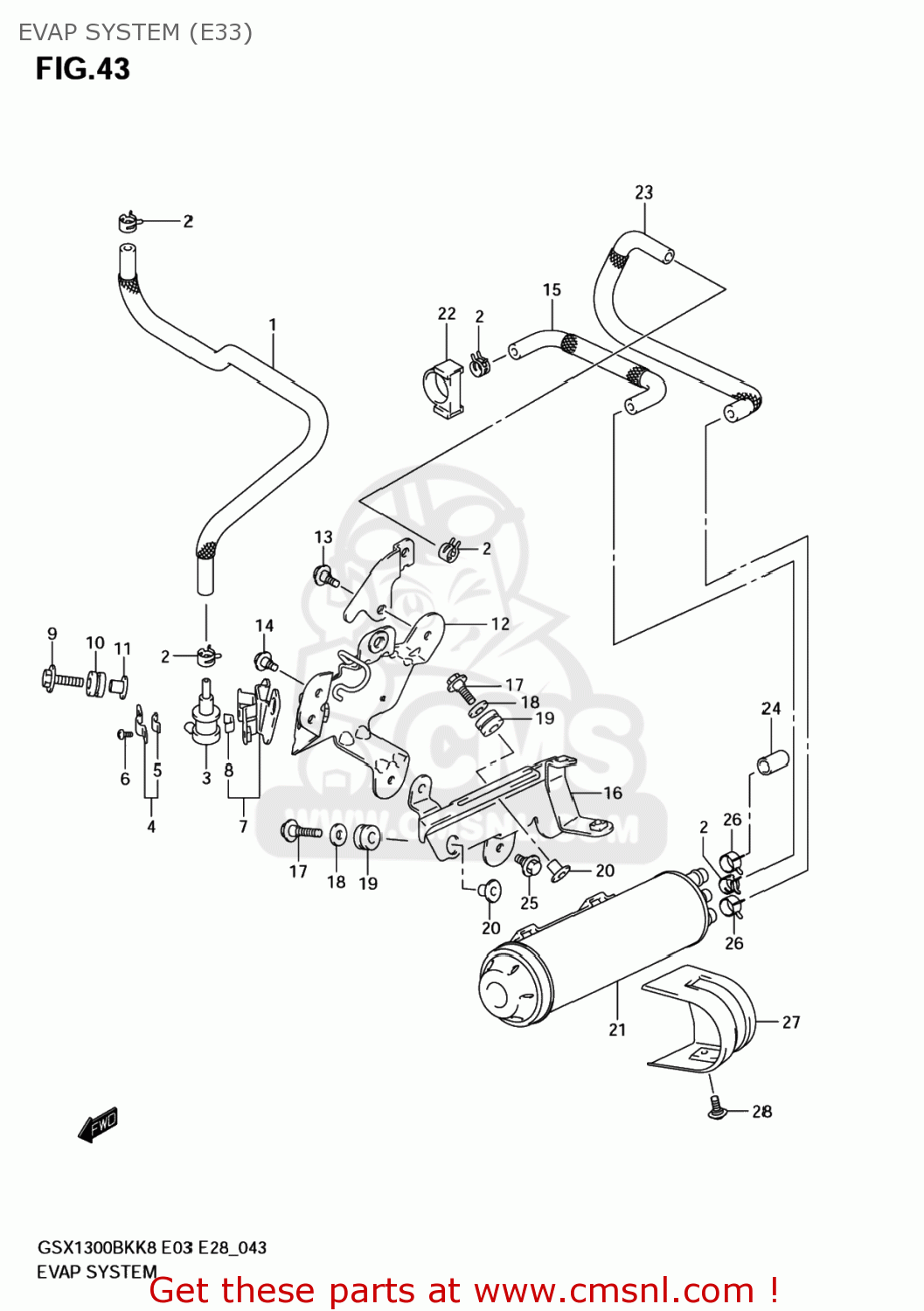

EVAP SYSTEM (E33)

ref

part #

description

quantity

1

4443423H00
ref: 1

HOSE,FUEL TANK & BRTHR VALVE

€ 32.50

2

0940111413
ref: 2

CLIP

€ 2.50

3

4424017C00
ref: 3

VALVE,FUEL TANK BREATHER

€ 40.00

4

4489224A00
ref: 4

PLATE,FUEL TANK BREATHER NO.2

€ 3.00

5

4489424A00
ref: 5

CUSHION

€ 1.50

6

021420408B
ref: 6

SCREW

€ 1.50

7

4491023H00
ref: 7

BRACKET,BREATHER VALVE

€ 20.50

8

4489424A00
ref: 8

CUSHION

€ 1.50

9

0911606147
ref: 9

BOLT(6X25)

€ 4.00

10

0932008001
ref: 10

CUSHION

€ 3.50

11

0916906062
ref: 11

WASHER

€ 3.00

12

4489023H10
ref: 12

BRACKET,EVAP SYSTEM

€ 0.00

13

015500616B
ref: 13

BOLT

€ 2.50

14

015500612B
ref: 14

BOLT

€ 2.50

15

4443523H00
ref: 15

HOSE,2 WAY & BREATHER VALVE

€ 17.00

16

4488023H00
ref: 16

BRACKET,CANISTER

€ 43.50

17

015500620B
ref: 17

BOLT

€ 2.50

18

0916006037
ref: 18

WASHER(6.5X16X3.2)

€ 2.50

19

0932008001
ref: 19

CUSHION

€ 3.50

20

0916906070
ref: 20

WASHER

€ 3.50

21

1720038A10
ref: 21

CANISTER SET

€ 0.00

22

4488410G00
ref: 22

CUSHION,CHECK VALVE

€ 5.50

23

4443623H00
ref: 23

HOSE,CSTR & PURGE VALVE

€ 47.50

24

0925107003
ref: 24

CAP,OD:11.5

€ 2.00

25

015500616B
ref: 25

BOLT

€ 2.50

26

0940112404
ref: 26

CLIP

€ 2.50

27

4499123H00
ref: 27

COVER,CANISTER

€ 13.50

28

0913905064
ref: 28

SCREW(5X13)

€ 2.50

all assemblies
