FRONT FENDER (WITHOUT ABS)

GSX1300BKA BKING 2008 (K8) USA (E03)

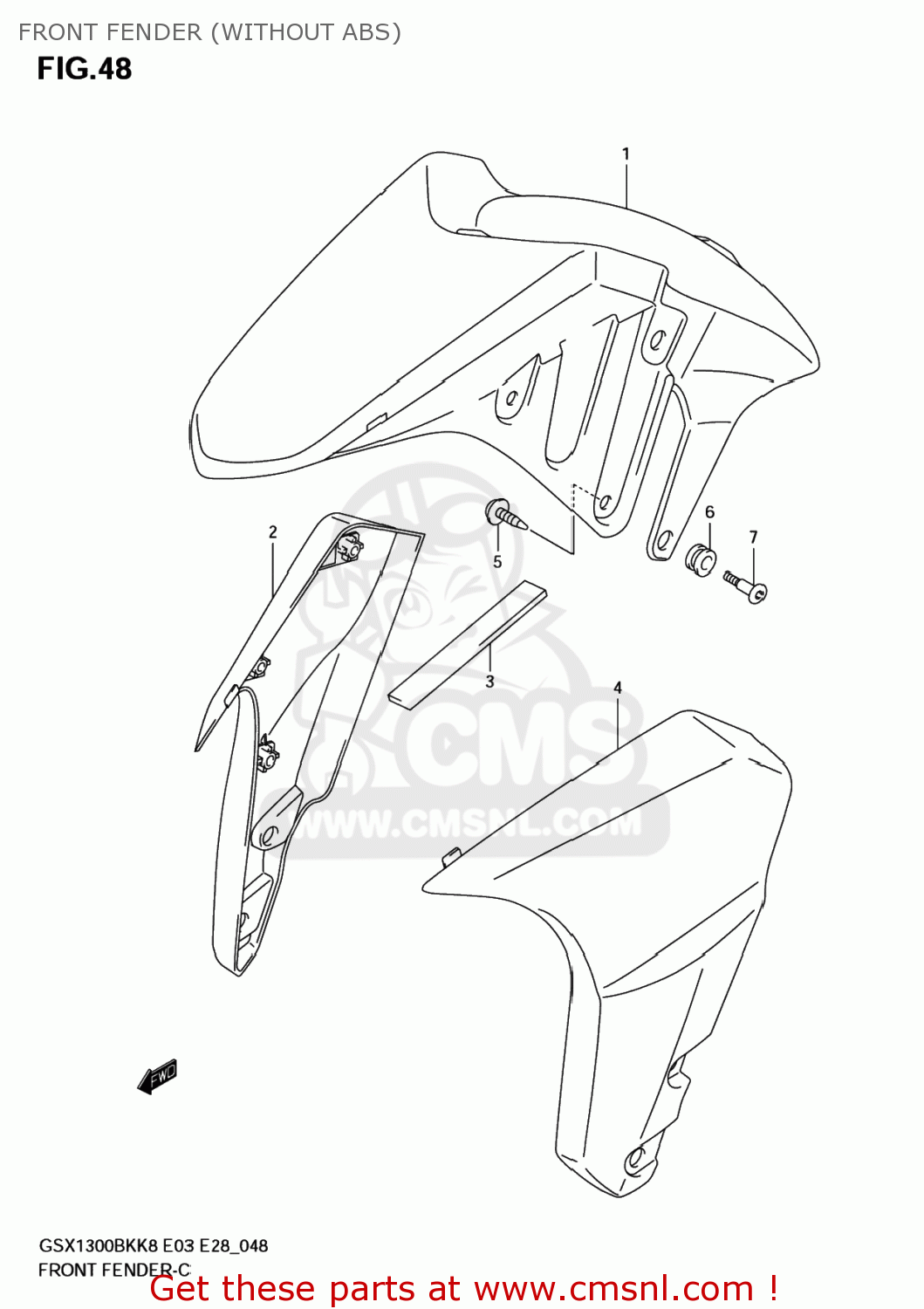

Front fender (without abs) diagram GSX1300BKA BKING 2008 (K8) USA (E03)

prices are in EUR

ref

part #

description

quantity

1-1

5311023H00019
ref: 1-1

FENDER,FR

€ 207.50

1-2

5311023H00YHF
ref: 1-2

FENDER,FR

€ 207.50

2-1

5312123H00YKV
ref: 2-1

COVER,FR FENDER SIDE,R(BLACK)

€ 88.00

2-2

5312123H00YMD
ref: 2-2

COVER,FR FENDER SIDE,R(SILVER)

€ 88.00

5312223H00
ref: 3

CUSHION,FR FENDER SIDE COVER

€ 3.50

4-1

5313123H00YKV
ref: 4-1

COVER,FR FENDER SIDE,L(BLACK)

€ 82.00

4-2

5313123H00YMD
ref: 4-2

COVER,FR FENDER SIDE,L(SILVER)

€ 82.00

0913605062
ref: 5

SCREW(5X15)

€ 2.50

0932009016
ref: 6

CUSHION

€ 2.50

0913906146
ref: 7

SCREW(6X16)

€ 3.00
