FUEL COCK (MODEL X/Y)

GSX1300R HAYABUSA 2002 (K2) USA (E03)

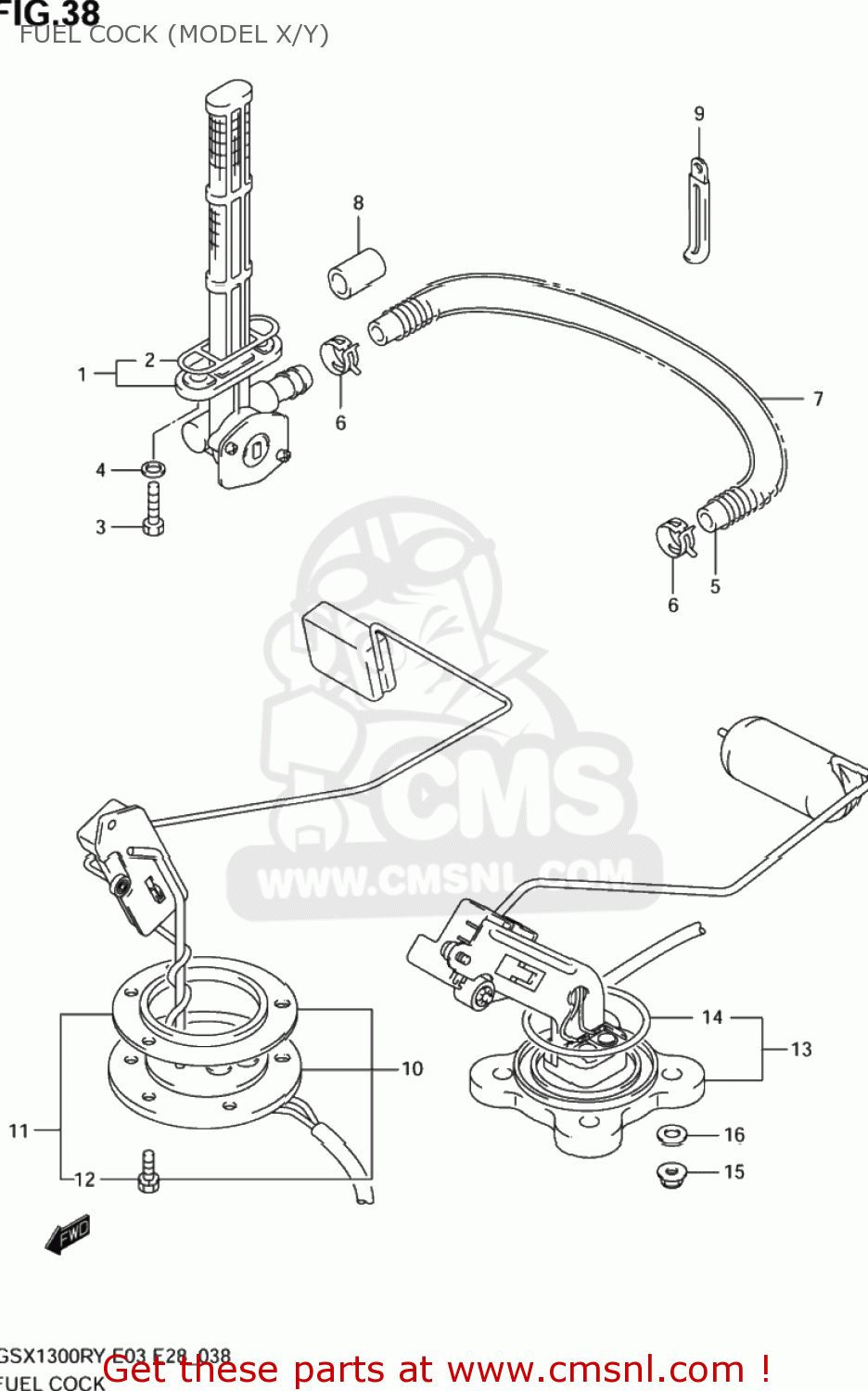

Fuel cock (model x/y) diagram GSX1300R HAYABUSA 2002 (K2) USA (E03)

FUEL COCK (MODEL X/Y) GSX1300R HAYABUSA 2002 (K2) USA (E03)

FUEL COCK (MODEL X/Y) GSX1300R HAYABUSA 2002 (K2) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

4430024F03
ref: 1

COCK ASSY,FUEL

€ 132.00

2

4435133E00
ref: 2

O RING,JOINT

€ 5.50

3

0912806057
ref: 3

BOLT(6X20)

€ 2.00

4

0916806026
ref: 4

GASKET(6.4X11.5X0.8) (NAS)

€ 3.50

5-1

4443324F00
ref: 5-1

HOSE,FUEL

€ 14.00

5-2

4443324F10
ref: 5-2
44433-24F00

HOSE,FUEL

€ 14.00

6

0940113417
ref: 6

CLIP

€ 2.50

7

0944017020
ref: 7
09440-17020-XC0

SPRING,FUEL RETURN HOSE

€ 7.50

8

0925109005
ref: 8

PLUG

€ 3.50

9

0940406434
ref: 9

CLAMP(L:80 T:1.0)

€ 3.00

10

3480024810
ref: 10

FUEL GAUGE SET

€ 163.00

11

3482024810
ref: 11

GASKET SET,FUEL GAUGE (NAS)

€ 37.50

12

3482624F01
ref: 12
09106-05024-XC0

BOLT,FUEL LEVEL SENDER

€ 2.50

13

3480024820
ref: 13

FUEL GAUGE SET

€ 144.00

14

3482531F00
ref: 14

O RING

€ 4.50

15

0831921063
ref: 15
08319-2106B

NUT

€ 2.50

16

0916006128
ref: 16

WASHER(6.5X15X1.6)

€ 2.50
