UNDER COWL INSTALLATION PARTS

GSX1300R HAYABUSA 2002 (K2) USA (E03)

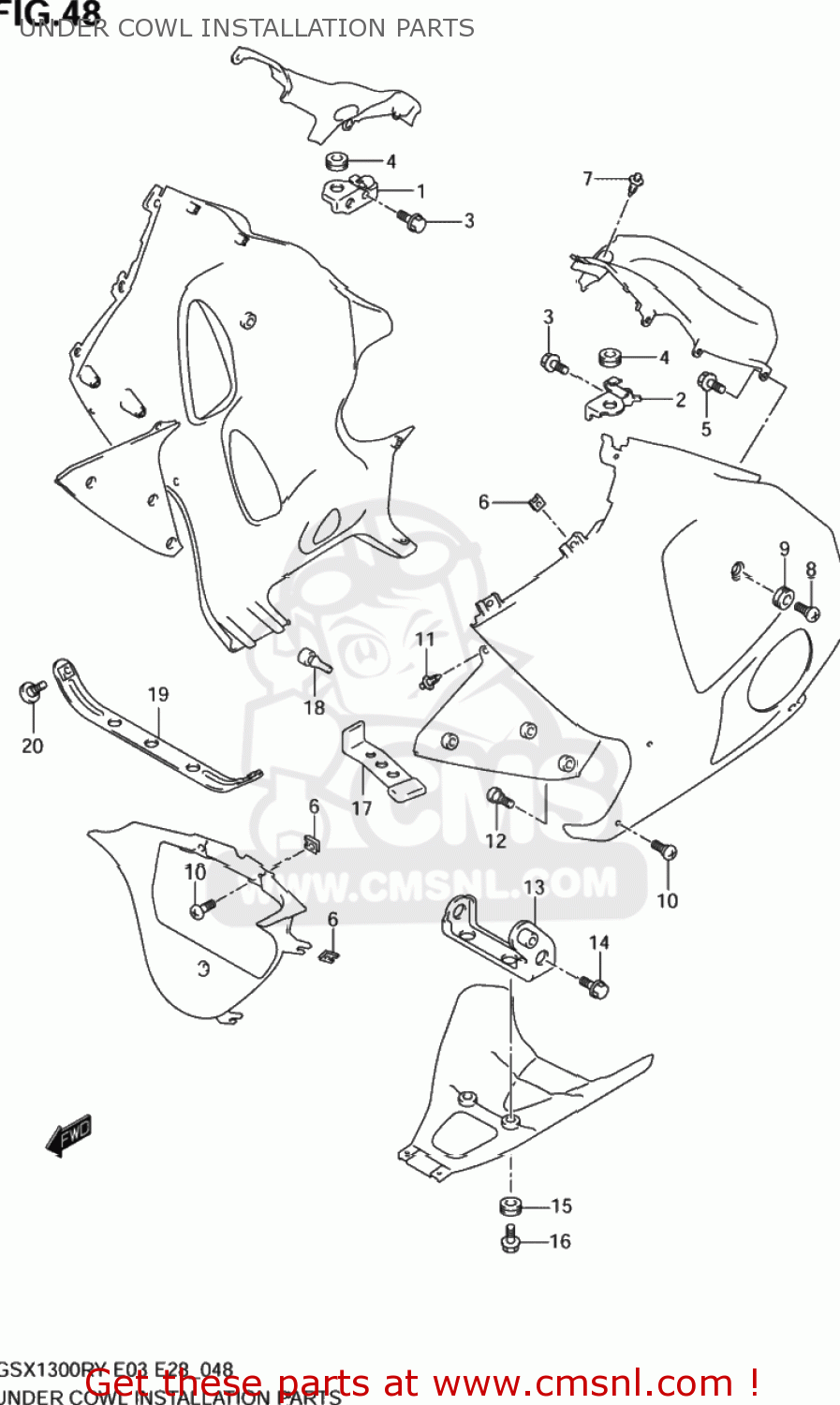

Under cowl installation parts diagram GSX1300R HAYABUSA 2002 (K2) USA (E03)

UNDER COWL INSTALLATION PARTS GSX1300R HAYABUSA 2002 (K2) USA (E03)
UNDER COWL INSTALLATION PARTS GSX1300R HAYABUSA 2002 (K2) USA (E03)
UNDER COWL INSTALLATION PARTS GSX1300R HAYABUSA 2002 (K2) USA (E03)
prices are in EUR
ref
part #
description
quantity
1
9452024F00
ref: 1
BRACKET,PANEL,R
9452024F00
€ 25.00
2
9453024F00
ref: 2
BRACKET,PANEL,L
€ 28.50
3
0155006203
ref: 3
01550-0620A
BOLT
0155006203
€ 2.50
4
0932008018
ref: 4
CUSHION
0932008018
€ 4.00
5
0354105083
ref: 5
03541-0508A
SCREW 5X8
0354105083
€ 2.00
6
9448424F00
ref: 6
NUT,COWL
9448424F00
€ 4.00
7
0940907332
ref: 7
CLIP
0940907332
€ 3.00
8
0913906087
ref: 8
09139-06126
SCREW(6X20)
0913906087
€ 4.00
9
0932009016
ref: 9
CUSHION
0932009016
€ 2.50
10
0913905054
ref: 10
SCREW(5X16)
0913905054
€ 6.00
11
09409063145PK
ref: 11
CLIP(BLACK)
09409063145PK
€ 3.50
12
0354105123
ref: 12
03541-0512A
SCREW
0354105123
€ 2.00
13-1
9454024F00
ref: 13-1
94540-24F01
BRACEKT,REAR UNDER COWLING
9454024F00
€ 31.50
13-2
9454024F01
ref: 13-2
BRACKET,RR UNDER COWLING
9454024F01
€ 31.50
14
0155010203
ref: 14
01550-1020A
BOLT
0155010203
€ 2.50
15
0932009016
ref: 15
CUSHION
0932009016
€ 2.50
16
0913906087
ref: 16
09139-06126
SCREW(6X20)
0913906087
€ 4.00
17
9455024F00
ref: 17
BRACKET,UNDER COWLING,L
9455024F00
€ 9.00
18
0932105019
ref: 18
CUSHION
0932105019
€ 4.00
19
9456124F00
ref: 19
94561-24F01
PLATE,UNDER COWLING
9456124F00
€ 9.00
20
0913905054
ref: 20
SCREW(5X16)
0913905054
€ 6.00
