STAND
GSX1300R HAYABUSA 2002 (K2) USA (E03)

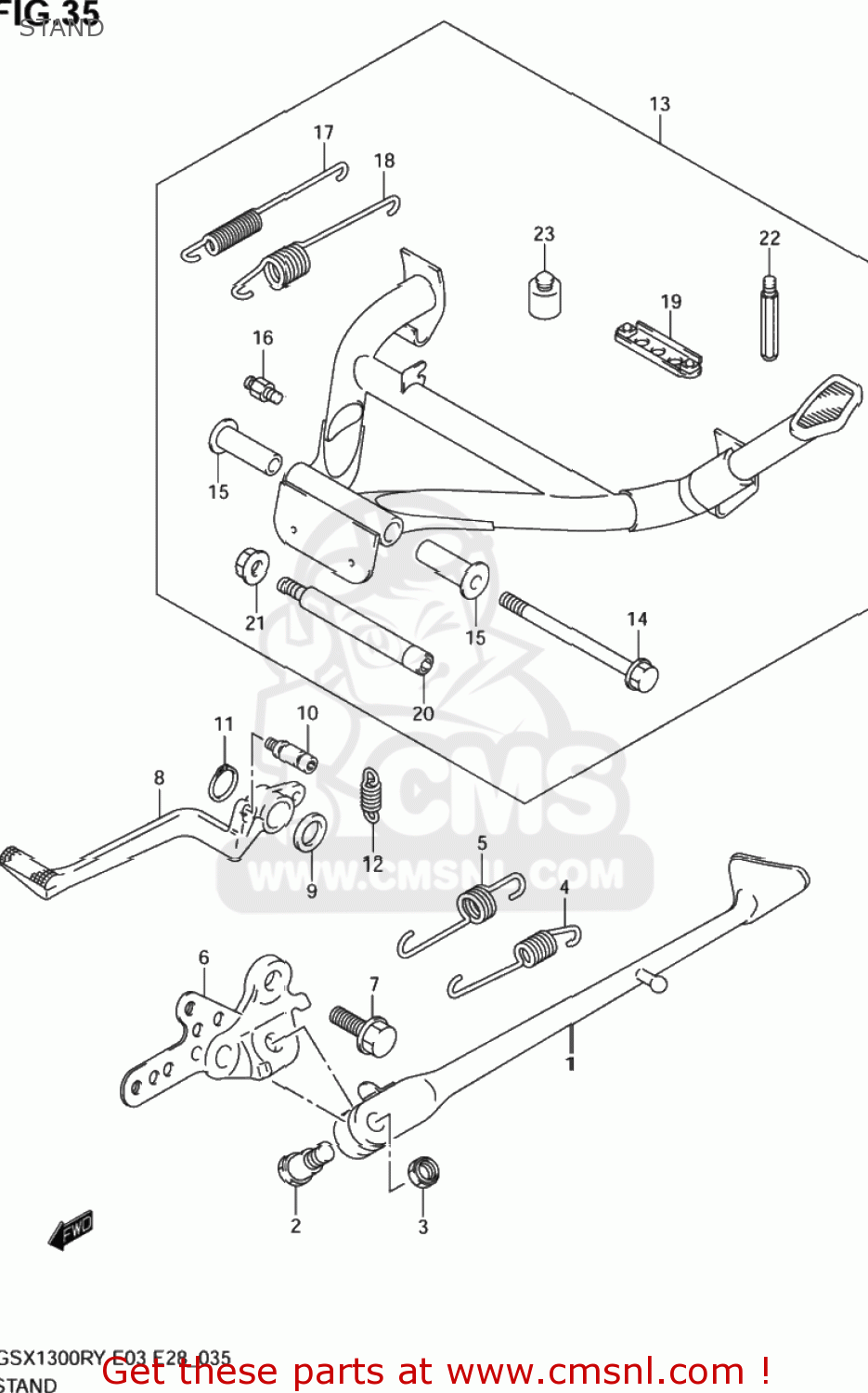

Stand diagram GSX1300R HAYABUSA 2002 (K2) USA (E03)
STAND GSX1300R HAYABUSA 2002 (K2) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
4231024F00
ref: 1
STAND,PROP
€ 109.50
2-1
0911110058
ref: 2-1
BOLT(10X37.5)
€ 6.00
2-2
0911110059
ref: 2-2
BOLT(10X21)
€ 7.00
3-1
0831931103
ref: 3-1
08319-3110A
NUT
€ 3.00
3-2
0915910103
ref: 3-2
NUT
€ 3.00
4-1
0944314066
ref: 4-1
SPRING
€ 5.00
4-2
0944314068
ref: 4-2
SPRING
€ 5.00
5-1
0944319012
ref: 5-1
SPRING
€ 5.50
5-2
0944319015
ref: 5-2
SPRING
€ 5.00
6
4233024F00
ref: 6
42330-24F01
BRACKET COMP,PROP STAND
€ 104.00
7-1
0155012353
ref: 7-1
01550-1235A
BOLT
€ 3.00
7-2
0910012077
ref: 7-2
BOLT(12X35)
€ 4.50
8
4311124F00
ref: 8
PEDAL,BRAKE
€ 90.50
9
0916018022
ref: 9
WASHER(18X24X1)
€ 3.00
10
4356124F00
ref: 10
HOOK,RETURN SPRING
€ 8.00
11
0833131186
ref: 11
08331-3118A
CLIP
€ 2.00
12-1
0944313030
ref: 12-1
09443-13030-XC0
SPRING
€ 3.00
12-2
0944313032
ref: 12-2
SPRING
€ 4.00
13
4210024820
ref: 13
42100-24821
STAND SET,CENTER
€ 170.50
14
4225424F00
ref: 14
BOLT,CTR STAND
€ 6.50
15
4225324F00
ref: 15
SPACER,CTR STAND
€ 19.50
16
4225124F00
ref: 16
HOOK,CTR STAND SPRING
€ 13.50
17
0944314067
ref: 17
SPRING
€ 7.50
18
0944322018
ref: 18
SPRING
€ 8.50
19
9459024F00
ref: 19
BRACKET,UNDER COWLING OP
€ 8.00
20
4225224F00
ref: 20
BOLT,CTR STAND STOPPER
€ 53.50
21
0831931103
ref: 21
08319-3110A
NUT
€ 3.00
22
4357648B10
ref: 22
BOLT,BANK SENSOR
€ 14.00
23
0932110017
ref: 23
CUSHION
€ 5.50
